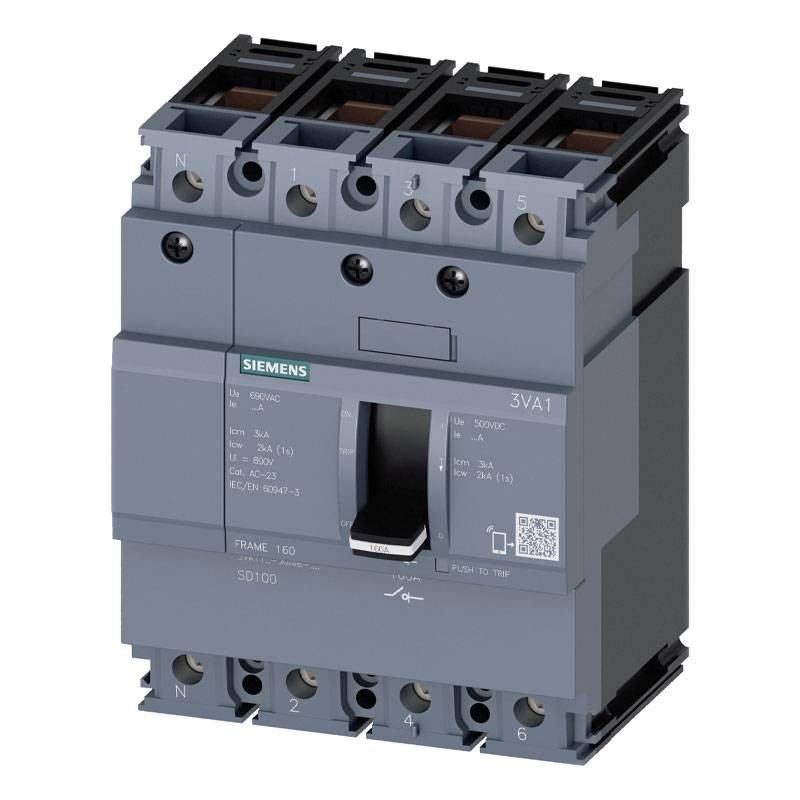

Siemens 3VA11 160A 4P IP40 Molded Case Underload Disconnector 3VA11161AA460AA0
SIE 3VA11161AA460AA0
4042948800591
Siemens 3VA11 underload disconnector, MCCB molded case circuit breaker, without thermal or magnetic protection, screw terminal, IP40, with the following characteristics:
-
Number of poles: 4 of 160 amperes
-
Rated voltage: Up to 690 V AC, 600 V DC
-
Conditional short-circuit current: Up to 70 kA (with fuses)
-
Regulatory compliance: IEC 60947, overvoltage category IV
-
Screw terminals: Front with silver surfaces
-
Dimensions: 130x101.6x70 mm
-
Degree of protection: IP40 front
€341.83
Items Available: 42
Frequently bought together
Siemens 3VA11 underload disconnect switch: power and reliability in a single module
The Siemens 3VA11 is a 4-pole MCCB molded case circuit breaker with a current rating of 160A. It is designed to function as an underload disconnect, main, safety and emergency switch, offering maximum versatility in industrial switchboards and high-performance installations.
Safety and durability in demanding environments
Fixed flush-mounted design with front clamp connections ensures ease of installation and long-term reliability. With impulse withstand voltage up to 8 kV and conditional short-circuit protection up to 70 kA (with NH fuses), the device offers high operational safety in demanding industrial environments.
Without circuit breakers: pure and direct disconnection
This model has no overload or short-circuit protection, making it perfect for pure disconnection functions where protections are already guaranteed upstream. It is also ideal as a maintenance or repair switch, with clear indication of the switching status via ON, TRIP, OFF lever.
Technical Specifications Siemens Disconnect Switch
| Number of poles | 4P |
|---|---|
| Rated current | 160 A |
| Rated voltages | AC: up to 690 V - DC: up to 600 V - Isolation: 800 V |
| Conditional short-circuit current | 70 kA (with NH fuses) |
| Power dissipation | Max 38 W |
| Mechanical life span | 20,000 cycles |
| Main connections | Front screw terminals, silver surfaces |
| Installation type | Fixed recessed, front mounting with 4 holes |
| Front protection | IP40 |
| Operating temperature range | -25 °C to +70 °C |
| Dimensions | 130 x 101.6 x 70 mm |
| Supported functions | Main switch, safety switch, emergency OFF, disconnect switch |
| Motorized control | Prepared (optional) |
| Auxiliary and release contacts | Not present, expandable |
| Certifications | IEC 60947, EPD available |
There are no reviews
Data sheet
- Type: Molded case switch disconnectors
- Poles: 4P
- Amps: 160A
