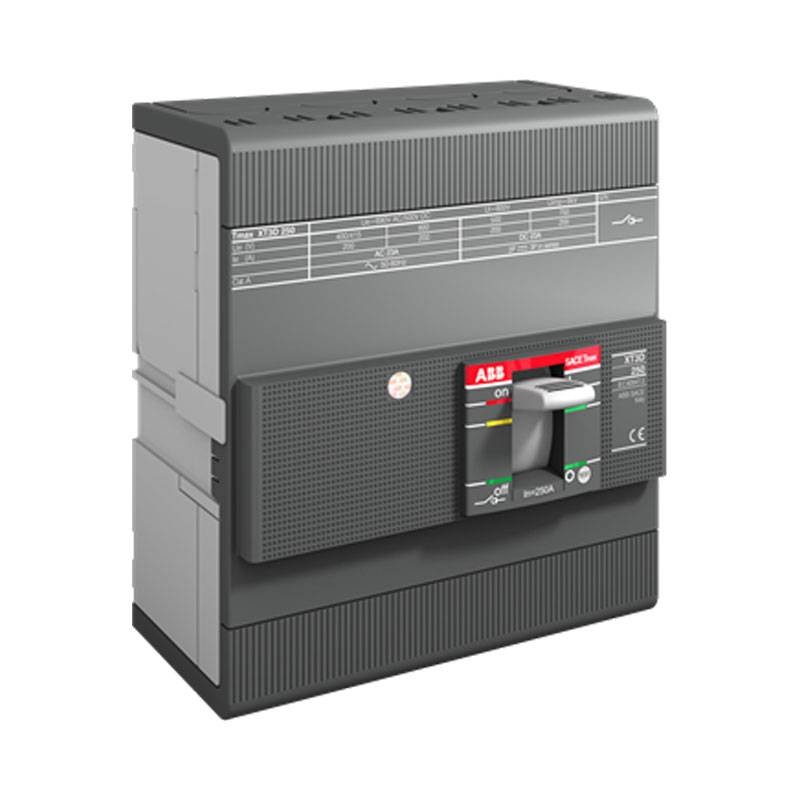

Abb Moulded Case Disconnect Switch XT3D 4X250A 4P XT3D2504
ABB XT3D2504
8015644021078
Abb XT3D 4X250A 4P TMAX fixed four-pole Moulded case disconnect switch with front terminals.
€637.83
Items Available: 24
: 1
Frequently bought together
Features:
- Net product width: 140 millimeters
- Net height of the product: 150 millimeters
- Product net depth/length: 70 millimeters
- Product net weight: 2.1kg
- Main product type: SACE Tmax XT
- Product name: Molded box circuit breaker
- Product Type: Disconnect Switch
- Version: F
- Main circuit connection capacity: Distribution bar 85..192 mm²
- Electrical life: 120 cycles per hour - 8000 cycle
- Mechanical life: 240 cycles per hour - 25000 cycle
- Number of poles: 4
- Opening times: CB with SOR 15 ms - CB with UVR 15 ms
- Power loss: at rated operating conditions per pole 17.8 W
- Rated frequency (f): 50/60 Hz frequency
- Rated impulse withstand voltage (U imp ): 8kV
- Rated insulation voltage (U i ): 800 volts
- Rated operating voltage: 690V AC 500V DC
- Rated short-time low voltage current (I cw ): for 1 s 3 kA
- Rated uninterrupted current (I u ): 250 A
- Recommended screwdriver: M8 main circuit
- Short-circuit performance level: D
- Standard: IEC60947-2
- Subtype: XT3
- Terminal Connection Type: Front
- Terminal type: Bolt
- Tightening torque: 8 Nm
There are no reviews
Data sheet
- Type: Molded case switch disconnectors
- Poles: 4P
- Amps: 250A
