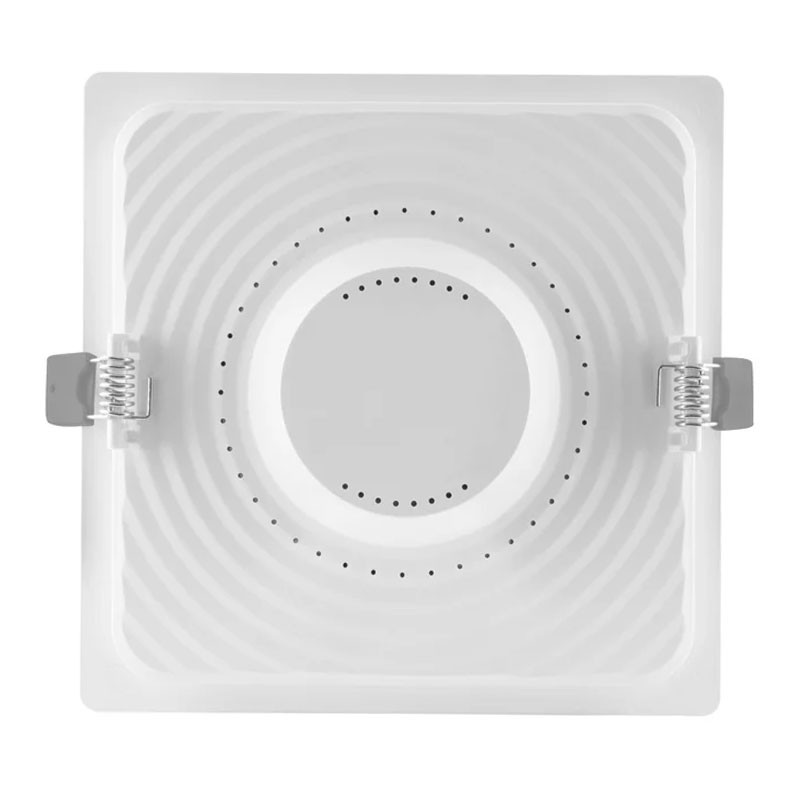

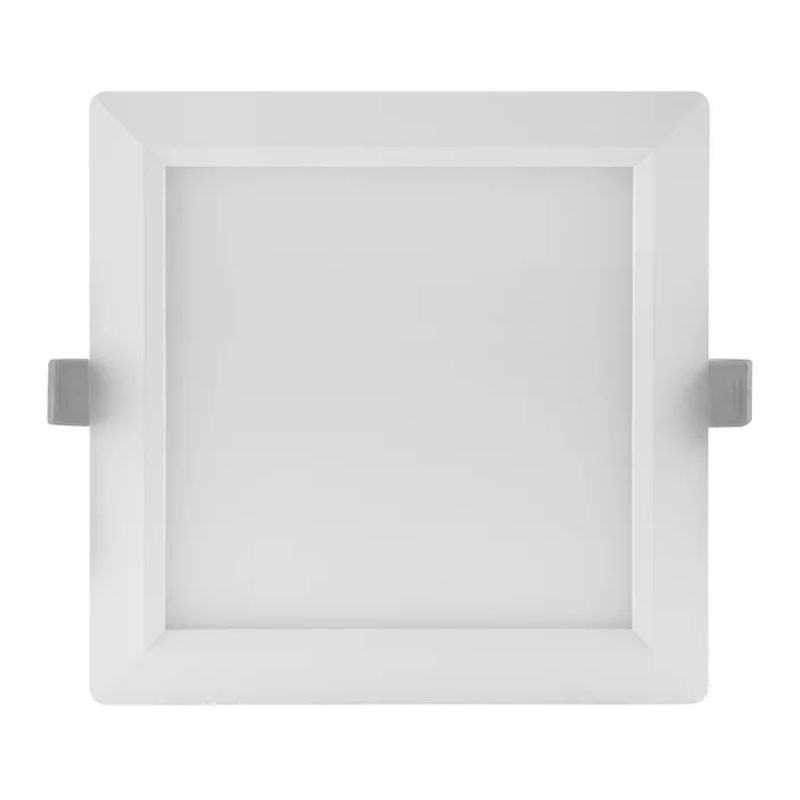

Osram Flat Square Led Spotlight Slim Recessed 12W 3000K 1020lm White DWLSSQ15512830G2

Osram
Osram
LDV DWLSSQ15512830G2 4058075079274

Osram Flat Faro Slim Recessed Led, combines an ultrathin design with efficient and homogeneous Led lighting. Easy to install thanks to the built-in driver, it is ideal for ceilings with low mounting depth, with the following features:

  • Power: 12W

  • Voltage: 220-240V

  • Color temperature: 3000K (warm light)

  • Luminous flux: 1020 lumens

  • Beam angle: 120 degrees

  • Mounting type: Ceiling recessed

  • Degree of protection: IP20

  • Dimmable: No

  • non dimmable
    • Do you have questions about this product or did you not find what you were looking for? Ask us!
    Osram Flat Square Led Spotlight Slim Recessed 12W 3000K 1020lm White DWLSSQ15512830G2
    €13.83
    €13.83

    €13.83
    Tax included
    Calculate shipping cost
    Items Available: 16
    Further availability of the manufacturer
    €13.83

    Buy it within and receive it from Wednesday, 24 December
    Two-year warranty
    Easy return within 14 days
    Purchase with tax breaks

    Are you a professional ?

    Request access to

    Trustpilot

    Efficient, Compact and Natural Light Flat Osram LED Beacon

    Efficient and energy-saving LED lighting

    The Osram Flat Faro Slim spotlight offers a high luminous efficiency of 85 lm/W, providing uniform and comfortable light. Energy savings are up to 60% compared to conventional CFL lamps, reducing consumption without compromising lighting quality.

    Compact design for shallow installation

    Thanks to its thickness of only 30 mm, this spotlight is perfect for installations in small spaces without the need for deep false ceilings. The length and width of 169 mm allows perfect integration into modern ceilings.

    Natural and homogeneous light

    With a color temperature of 3000K, the spotlight produces a warm white light, ideal for offices, stores, corridors, and home environments. The color rendering index of more than 80 (Ra > 80) ensures faithful and realistic colors.

    Flat Slim Spotlight Easy Installation and Maximum Safety

    Easy installation and quick connection

    The 2-pin screwless connection system enables convenient and safe installation. The built-in LED driver simplifies installation and reduces bulk, making the product ready for use in minutes.

    Durable materials and certified safety

    Made of high-quality polycarbonate, the spotlight offers strength and light weight. IP20 protection makes it suitable for indoor environments, while IK03 rating ensures good impact resistance.

    Technical Specifications Flat Spotlight

    Electrical Data

    Feature Value
    Power 12 Watts
    Voltage 220-240 V
    Rated current 71.7 mA
    Inrush current 15,6 A
    Current inrush time T h50 50 µs
    Power factor λ 0,50
    Total harmonic distortion < 20%
    Operating mode Integrated LED driver


    Photometric Data

    Feature Value
    Luminous flux 1020 lumens
    Luminous efficacy 85 lm/W
    Color Temperature 3000K (warm light)
    Color rendering index Ra > 80
    Standard deviation of color matching < 6 microns
    Beam angle 120 degrees
    Length/width 169 mm
    Height 30 mm


    Application and Mounting

    Feature Value
    Color White
    Material Polycarbonate (PC)
    Ambient temperature range -20/+50 degrees
    Connection type Screwless terminal, 2-pole
    Type of protection IP20
    Protection class IK03
    Dimmable NO
    Mounting type Recessed
    Mounting location Ceiling

    There are no reviews

    Data sheet

    Colour:
    White
    Type:
    Flat
    Staining:
    Warm
    Shape:
    Square
    Model:
    Fixed
    Watts:
    From 1 to 20W
    Integrated Led:
    YES
    Colour temperatures:
    3000 Kelvin
    Spotlight thickness:
    21-40mm
