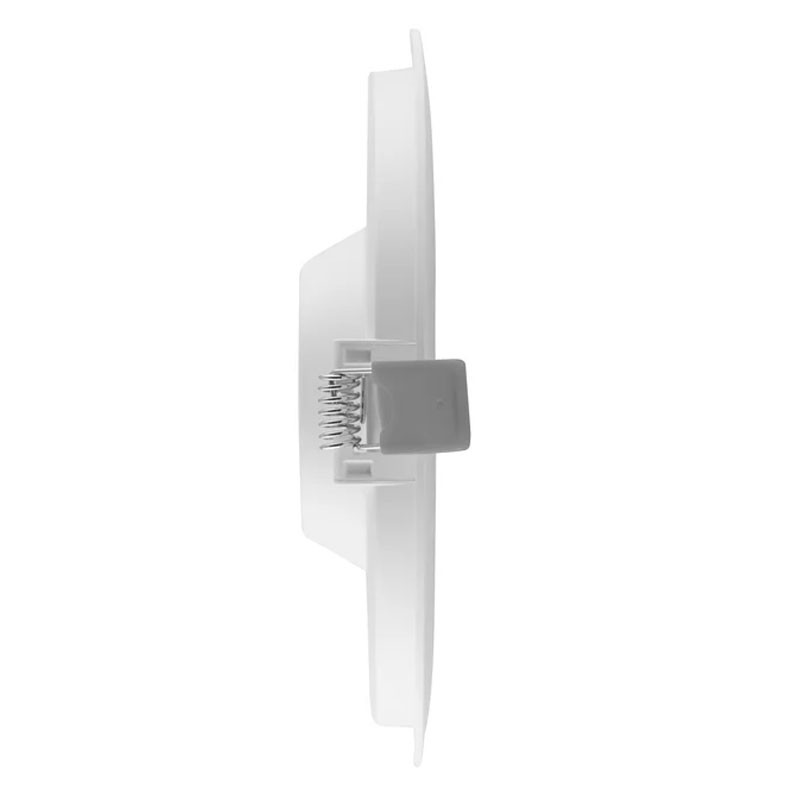

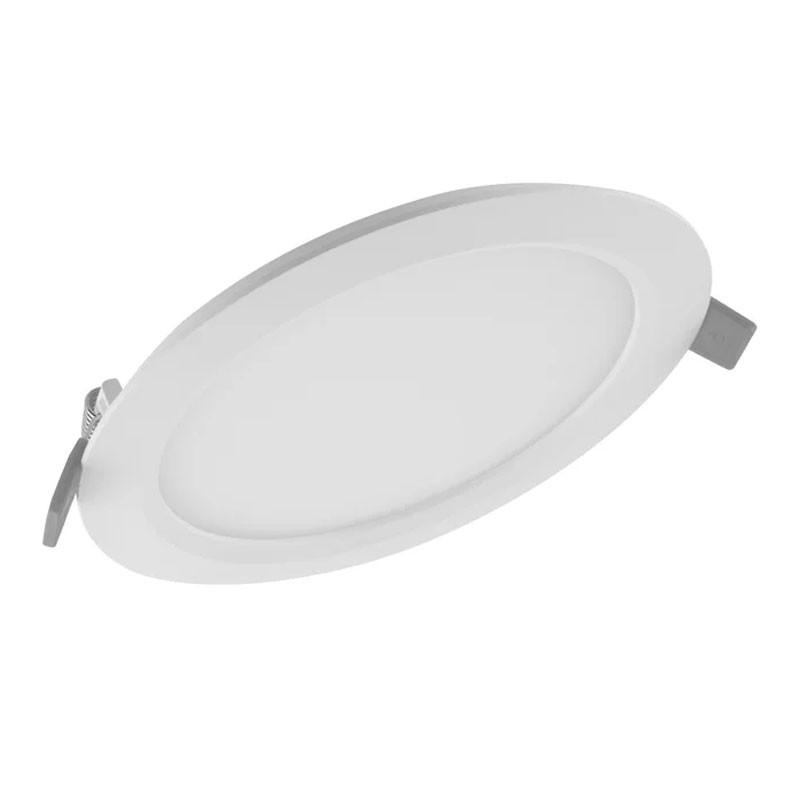

Osram Flat Led Round Slim Recessed Spotlight 6W 4000K 430lm White DWLSDN1056840G2
LDV DWLSDN1056840G2
4058075079007
Osram Flat Slim Recessed Led Spotlight, combines an ultrathin design with efficient and homogeneous Led lighting. Easy to install thanks to the built-in driver, it is ideal for ceilings with low mounting depth, with the following features:
-
Power: 6W
-
Voltage: 220-240V
-
Color temperature: 4000K (natural light)
-
Luminous flux: 430 lumens
-
Beam angle: 120 degrees
-
Recessed hole diameter: 105mm
-
Mounting type: Ceiling recessed
-
Degree of protection: IP20
-
Dimmable: No
€10.03
Items Available: 256
: 83
Osram Flat Lighthouse - Efficient, Compact and Natural Light LED.
Efficient and energy-saving LED lighting
Osram's Flat Faro Slim spotlight offers a high luminous efficiency of 70 lm/W, providing uniform and comfortable light. Energy savings are up to 60% compared to conventional CFL lamps, reducing consumption without compromising lighting quality.
Compact design for shallow installation
Thanks to its thickness of only 30 mm, this spotlight is perfect for installations in small spaces without the need for deep false ceilings. Its 105 mm recessed diameter allows perfect integration into modern ceilings.
Natural and homogeneous light
With a color temperature of 4000K, the spotlight produces natural white light, ideal for offices, stores, corridors, and home environments. The color rendering index of more than 80 (Ra > 80) ensures faithful and realistic colors.
Flat Slim Spotlight Easy Installation and Maximum Safety
Easy installation and quick connection
The 2-pin screwless connection system enables convenient and safe installation. The built-in LED driver simplifies installation and reduces space requirements, making the product ready for use in minutes.
Durable materials and certified safety
Made of high-quality polycarbonate, the spotlight offers strength and light weight. IP20 protection makes it suitable for indoor environments, while IK03 rating ensures good impact resistance.
Technical Specifications Flat Spotlight
Electrical Data
| Feature | Value |
|---|---|
| Power | 6 Watts |
| Voltage | 220-240 V |
| Rated current | 58 mA |
| Inrush current | 6 A |
| Current inrush time T h50 | 120 µs |
| Power factor λ | 0,50 |
| Total harmonic distortion | < 20% |
| Operating mode | Integrated LED driver |
Photometric Data
| Feature | Value |
|---|---|
| Luminous flux | 430 lumens |
| Luminous efficacy | 70 lm/W |
| Color Temperature | 4000K (natural light) |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | < 6 microns |
| Beam angle | 120 degrees |
| Diameter | 118 mm |
| Height | 30 mm |
Application and Mounting
| Feature | Value |
|---|---|
| Color | White |
| Material | Polycarbonate (PC) |
| Ambient temperature range | -20/+50 degrees |
| Connection type | Screwless terminal, 2-pole |
| Type of protection | IP20 |
| Protection class | IK03 |
| Dimmable | NO |
| Mounting type | Recessed |
| Mounting location | Ceiling |
Ottimo rapporto qualità prezzo, design elegante, meccanica robusta.
poco da aggiungere
prodotto di alta qualità...
OSRAM una garanzia (qui con il nuovo brand della linea light)
Data sheet
- Colour: White
- Type: Flat
- Staining: Natural
- Shape: Round
- Model: Fixed
- Watts: From 1 to 20W
- Integrated Led: YES
- Colour temperatures: 4000 Kelvin
- Spotlight thickness: 21-40mm
