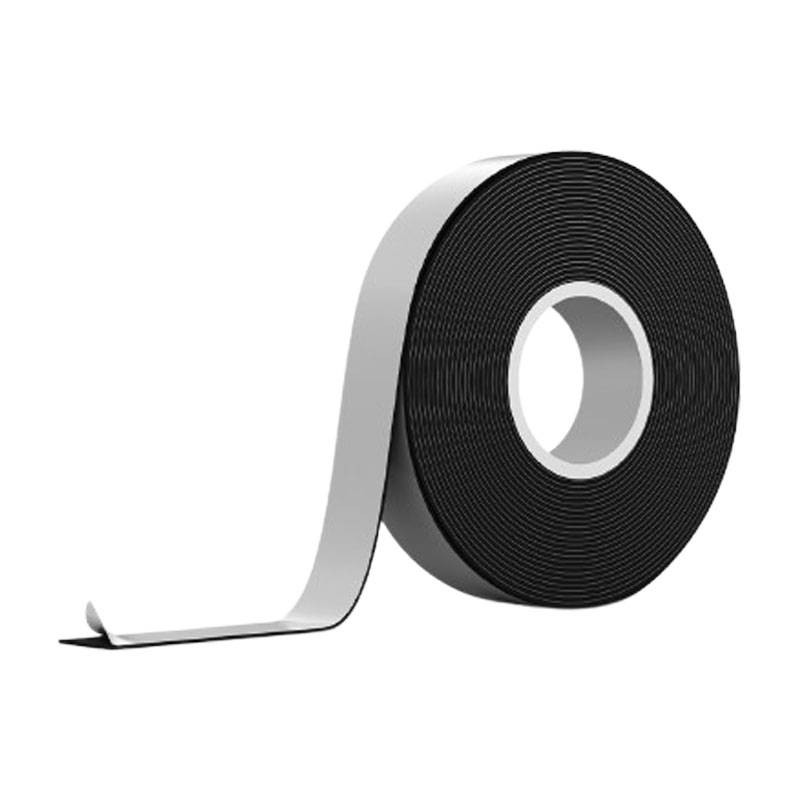

Etelec ISOEL adhesive insulation tape 9.1 meters x 19 mm NA4723
ETL NA4723
8033501683504
Etelec ISOEL self-amalgamating adhesive insulating tape, ideal for surface and conductor protection up to 69 kV. High elasticity and electrical insulation, with the following characteristics:
-
Self-amalgamating ethylene propylene rubber (EPR).
-
For insulation up to 69 kV without the need for heat or pressure
-
Extreme flexibility, elongation up to850%.
-
High dielectric strength 35 kV/mm
-
Compatible with PVC, PE, butyl and neoprene
-
Halogen free and lead-free
-
Dimensions 9.1 meters x 19 mm
€7.47
Items Available: 265
: 36
Etelec tape advanced protection up to 69 kV for cables and surfaces
ISOEL Etelec tape is a professional self-amalgamating EPR rubber tape specifically designed to offer electrical protection and insulation up to 69 kV. It is the ideal solution for maintenance and installation of high-voltage electrical systems due to its high mechanical and dielectric performance.

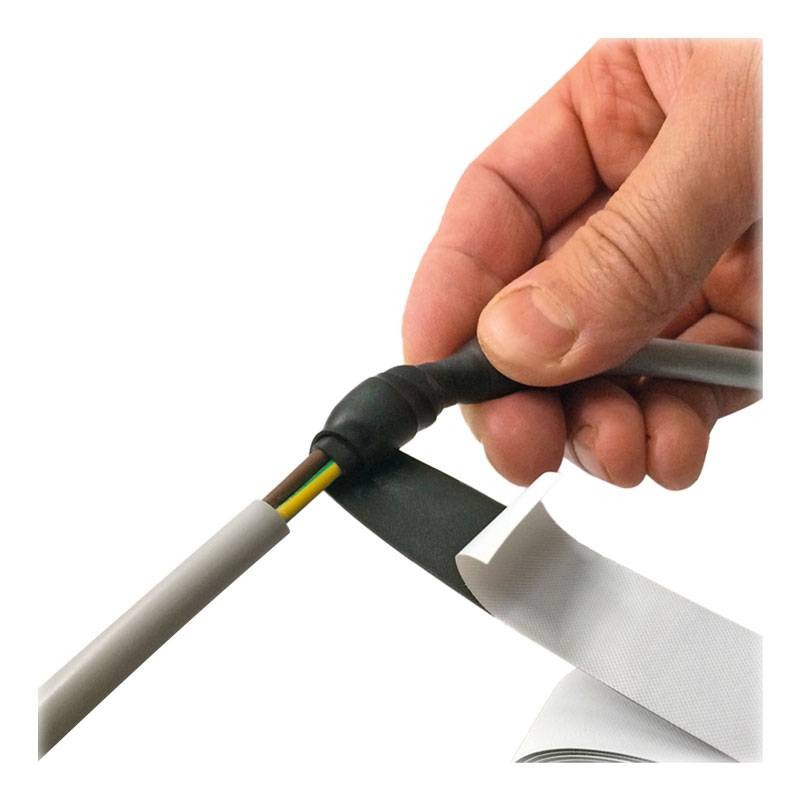

Easy application, without heat or pressure
It is easily applied without additional tools: it requires no heat or external pressure. Its self-amalgamating ability allows effective adhesion between layers, ensuring a secure, elastic and long-lasting seal.
Compatibility and versatility of use
The tape is compatible with a wide range of insulation materials such as polyethylene (PE), PVC, butyl rubber, and neoprene, making it perfect for complex installations and industrial environments. It is halogen free and lead free, also ideal for applications in environmentally sensitive areas.
Applications
-
Insulation of splices and terminations up to 69 kV
-
Protection from weathering and moisture
-
Temporary or permanent coating of electrical components
-
Sealing and mechanical protection in indoor and outdoor environments
Technical Specifications Etelec Insulating Tape
| Material | EPR rubber |
|---|---|
| Color | Black |
| Width | 19 mm |
| Length | 9,1 m |
| Thickness | 0.75 mm |
| Max operating voltage | 69 kV |
| Dielectric strength | 35 kV/mm (ASTM D149) |
| Elongation at break | 850% (BS 903) |
| Tensile strength | 3.8 MPa (BS 903) |
| Volumetric resistivity | 3.5 ×1013 Ω-cm (ASTM D257) |
| Operating temperature range | -40°C to +90°C |
| Halogen free / Lead free | Yes / Yes |
There are no reviews
Data sheet
- Type: Tapes insulating
