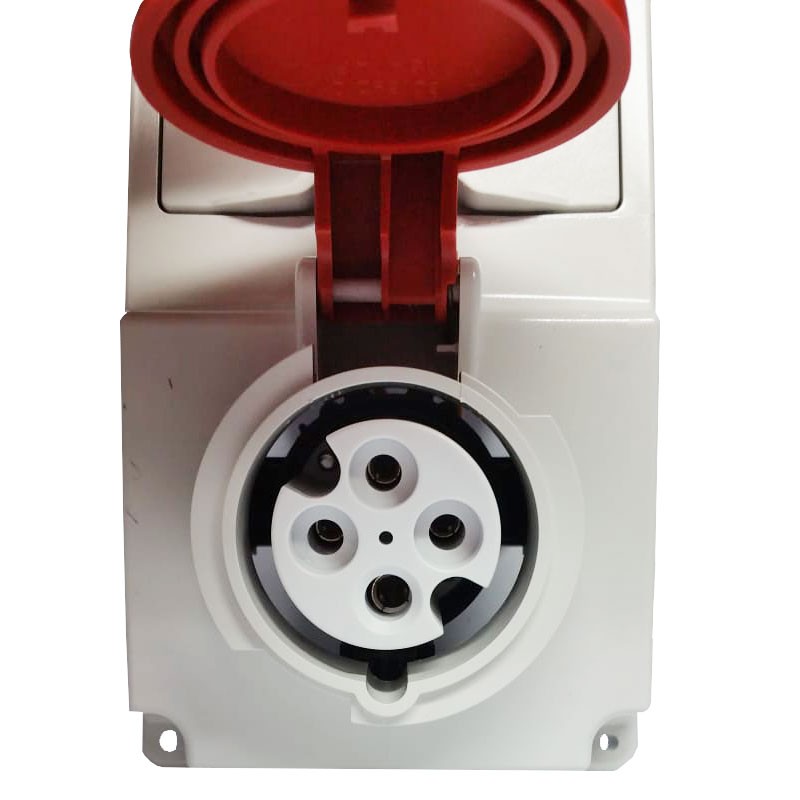

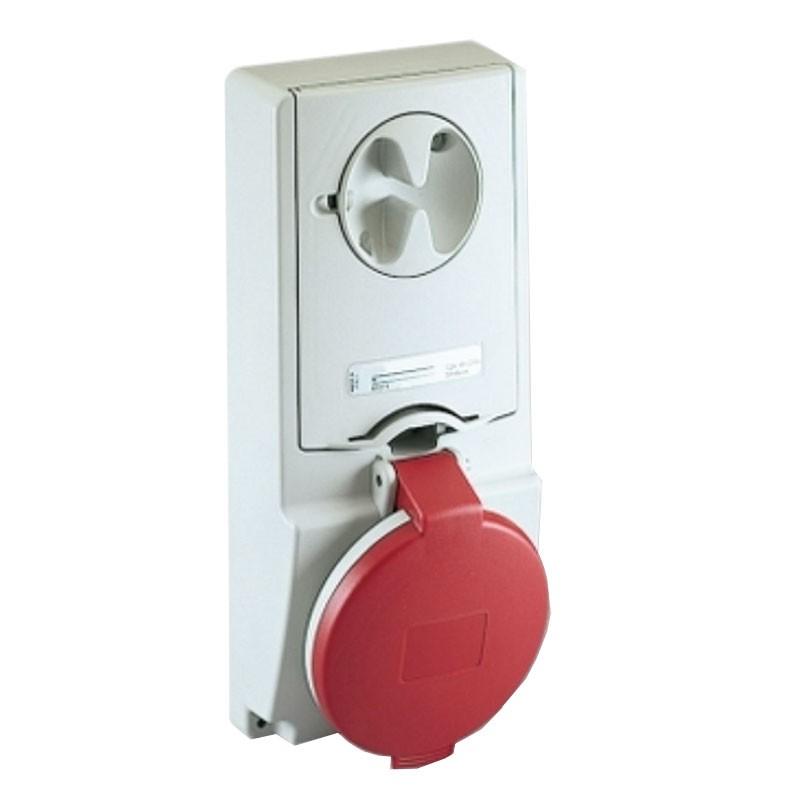

Schneider vertical interlocked socket 3X16A+E 400V IP44 82135
SNR 82135
3303430821359
Interlocked vertical recessed socket with fuse Unika Schneider , with the following characteristics:
- Rated operating voltage 380/415V
- Rated current 16A
- Network frequency: 50/60 Hz
- Network type: AC
- Poles: 3P+T
- Degree of protection IP44 according to IEC 60529
- Plug, socket category: low voltage
- Fuses not included
Schneider vertical interlocked socket 3X16A+E 400V IP44 82135
€59.80
€59.80
Tax included
Tax included
Pay in installments with Klarna
Items Available: 8
Features:
- Schneider Series
- Mounting method: Front panel
- Earth terminal position (clockwise): 6 h
- Type of protection: fuse
- Fuse size: 10,3 x 38 mm
- Plug, socket material: housing: self-extinguishing technopolymer
- Contacts material: pins: nickel-plated brass
- Connections - terminals: Studs
- Maximum cable cross-section: 10 mm²
- Maximum cable outer diameter: 25 mm²
- Cable entry: cable collar
- Weight: 0.8 kg
- Base dimensions: 103 x 225 mm
- Dimensions: height 225 mm - width 103 mm - depth 127 mm
- Color gray (RAL 7035)
- Color voltage code: red
- Reference standards: IEC 60309-1 - IEC 60309-2
- Degree of protection IK09 in accordance with EN 62262
- Fire resistance: 750 °C in accordance with IEC 60695-2-11
- Relative humidity: 50 % at 40 °C - 70 % at 30 °C - 90 % at 20 °C
- Ambient air temperature for operation: 35 °C ( 86400 s ) / -25 +40 °C
There are no reviews
Data sheet
- Type:
- Interlocked switch socket outlets
- Voltage:
- 380/415VAC
- Poles:
- 3P+T
- Degree of protection:
- IP44
- Installation:
- Recessed
- Amps:
- 16A
