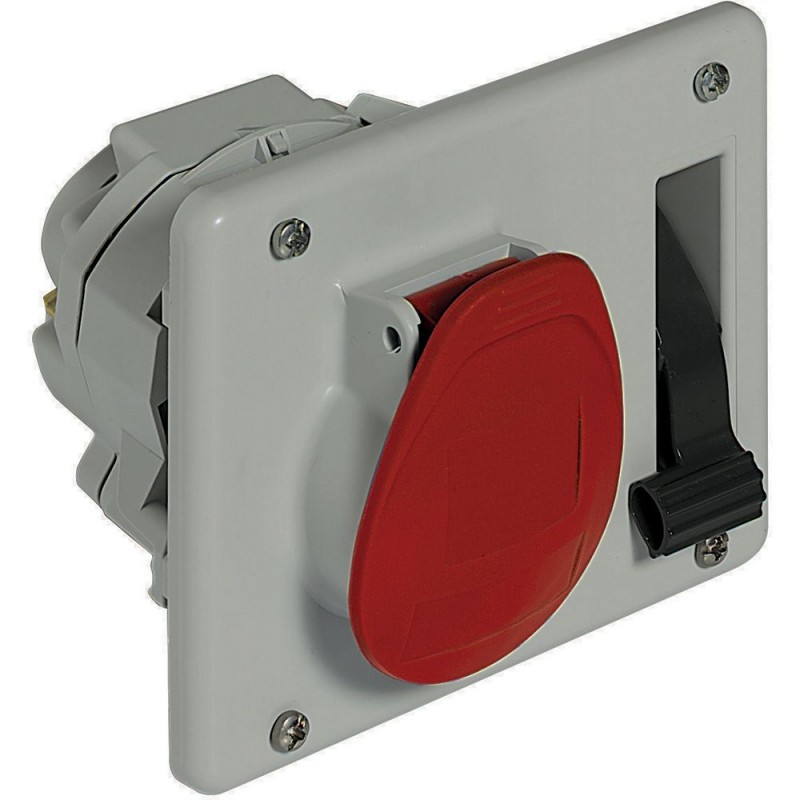

Legrand Interlocked Socket 3P+E 16A 400V IP44 057301

Legrand
Legrand
LEG 057301 3245060573010

The Tempra PRO panel-mounted interlocked socket is designed to ensure safety and reliability in industrial and commercial applications. With IP44 protection and IK08 impact resistance, it is ideal for environments where high performance and protection from dust and water splashes are required:

  • Reference standard: Conforms to IEC 60309-1/2 to ensure high standards of safety and quality

  • Current rating: 16 amps for three-phase systems

  • Rated voltage: 380-415Vac for industrial circuits

  • Pole configuration: 3P+T (3 poles + ground)

  • Advanced protections: IP44: Protection against dust and splashing water. IK08: Impact and mechanical stress resistance

  • Colour: Red, for immediate identification of three-phase voltage

  • Supplied without cable glands: Customizable with appropriate accessories

Do you have questions about this product or did you not find what you were looking for? Ask us!
Legrand Interlocked Socket 3P+E 16A 400V IP44 057301
€54.45
€54.45

€54.45
Tax included
Calculate shipping cost
Items Available: 2
Further availability of the manufacturer
€54.45

Buy it within and receive it from Thursday, 25 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Legrand 3P+E 16A 400V IP44 interlocked socket outlet 057301

Advantages

  • Ruggedness and durability: Made to withstand shock and harsh environments thanks to IK08 rating.
  • Advanced protection: IP44 for effective protection against dust and splashing water.
  • Industrial compatibility: Conforms to IEC 60309-1/2 standards, perfect for professional use.
  • Easy installation: Compact and practical design for panel mounting.
  • Quick identification: Red color for three-phase systems, instantly recognizable

Applications

  • Industrial and commercial installations
  • Electrical panels and power distribution systems
  • Environments with IP44 protection requirements
  • Electrical connections for three-phase machinery


Technical Characteristics

Specifications Details
Reference Standard IEC 60309-1/2
Voltage 380-415 Vac
Current 16 amps
Poles 3P+T
Degree of Protection IP44 / IK08
Dimensions Height: 105 mm - Width: 125 mm
Series Tempra PRO

There are no reviews

Data sheet

Type:
Interlocked switch socket outlets
Voltage:
380/415VAC
Poles:
3P+E
Degree of protection:
IP44
Installation:
Recessed
Amps:
16A
