Palazzoli industrial wall socket 3P+E 125A 400V IP67 480436
PAL 480436
8014950204854
Palazzoli TAIS series industrial wall-mounted interlocked socket in thermoset with the following features:
- Number of sockets/outlets: 1
- Socket type: 3P+E
- Rated current: 125 A
- Rated voltage: 400 V
- Degree of protection: IP66/IP67
- Installation: Wall-mounted
€865.55
Items Available: 1
Electrical characteristics:
- Rated current: 125 A
- Power Supply Voltage: 400V 50/60Hz
- Poles: 3P+T
- Hour ref: 6h
- Rated insulation voltage: 690V
- Insulation class: II
- Plug inserted signaling: 1 pilot contact
Switch data:
- Thermal current: 125 A
- Rated Icc current: 20 kA
- Terminal type: Screw type - indirect clamping
- Conductor cross-section: Min: 10 mm² - Max: 70 mm²
- Terminal tightening torque: 4 Nm
Mechanical features:
- Body material: Thermosetting resin
- Color: Gray/Blue

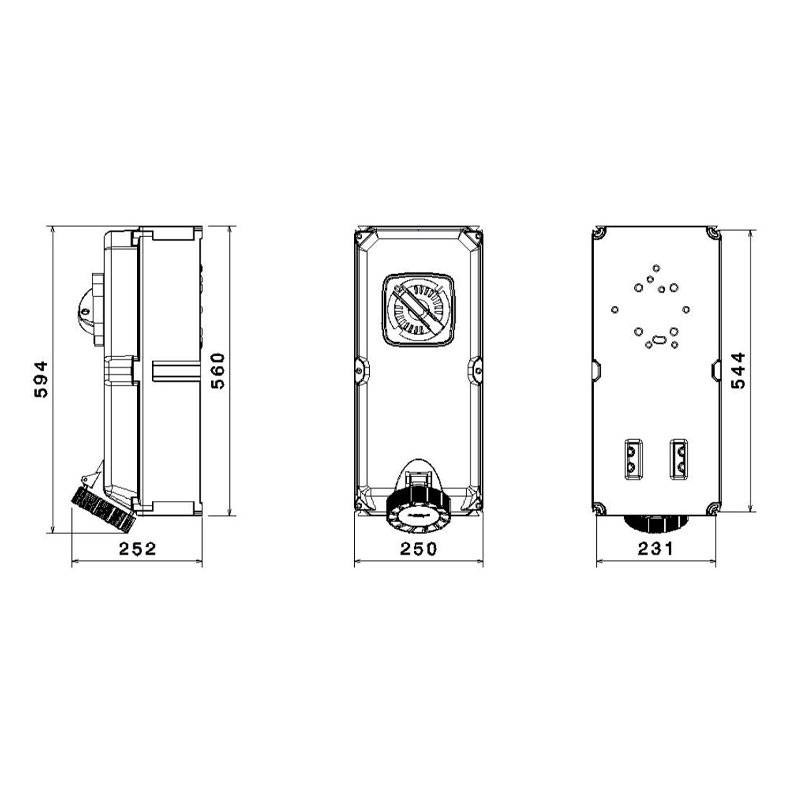

- Width: 250 mm
- Execution: Wall-mounted
- Degree of protection: IP66/IP67
- Impact Resistance: IK10
- Operating Environment Temperature: -40/+60 degrees
- Storage Environment Temperature: -50/+80 degrees
There are no reviews
Data sheet
- Type: Interlocked switch socket outlets
- Voltage: 400VAC
- Poles: 3P+E
- Degree of protection: IP67
- Installation: Wall-mounted
- Amps: 125A
