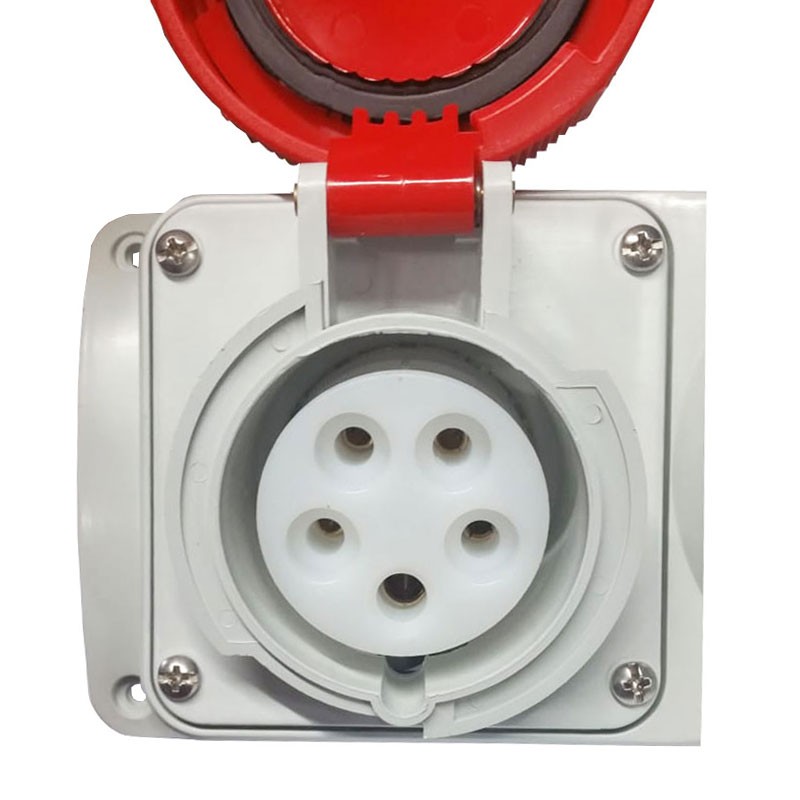

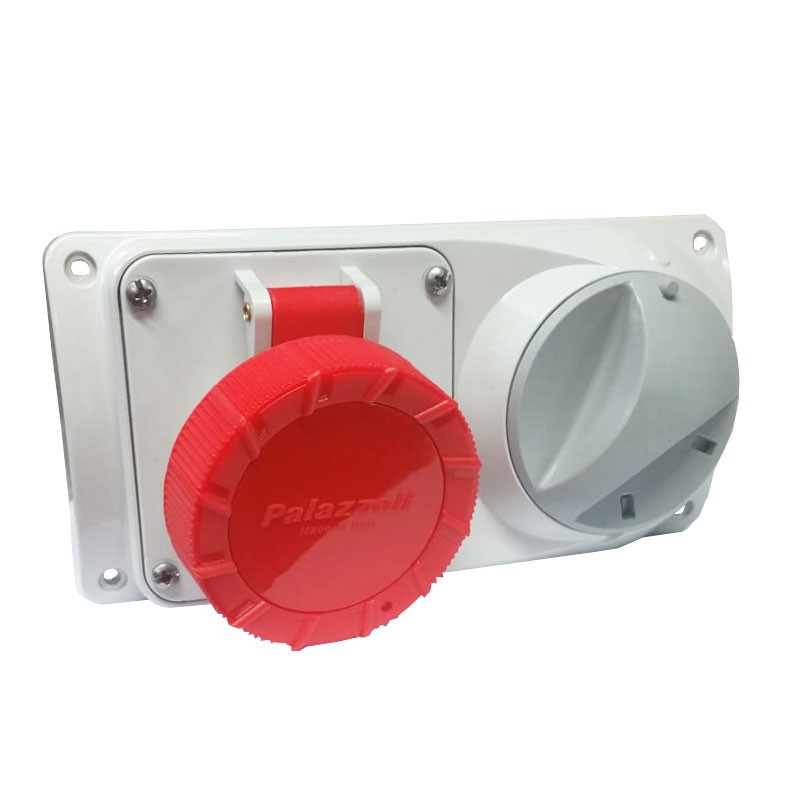

Palazzoli CEE Interlocked Industrial Socket 3P+N+E 32A 400V IP55

Palazzoli
Palazzoli
PAL 495246 8014950011124

Palazzoli interlocked industrial fixed socket, with the following characteristics:

  • Rated voltage: 400V
  • Rated insulation voltage: 690V
  • Poles: 3P+T+N
  • Rated current 32A
  • Frequency: 50/60Hz
  • Protection degree IP55
  • Horizontal and compact
Do you have questions about this product or did you not find what you were looking for? Ask us!
Palazzoli CEE Interlocked Industrial Socket 3P+N+E 32A 400V IP55
€70.80
€70.80

€70.80
Tax included
Calculate shipping cost
Items Available: 1
Further availability of the manufacturer
€70.80

Buy it within and receive it from Wednesday, 24 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Features:

  • Palazzoli Series
  • Storage ambient temperature: MIN -30°C - MAX +70°C
  • Ambient temperature: MIN -25°C - MAX +50°C
  • Max conductor section 10 mm²
  • Color: gray RAL 7035
  • Terminal type: indirect clamping
  • Shock resistance IK08 according to IEC/EN 62262
  • Hourly ref: 6h
  • Body material: thermoplastic
  • Execution: panel
  • Protection: none
  • Width: 103 mm
  • Insulation class II
  • Utilization category AC-23A / AC-3 32A - 415V
  • Dimensions: 103X206X80 mm

There are no reviews

Data sheet

Type:
Interlocked switch socket outlets
Voltage:
380/415VAC
Poles:
3P+N+E
Degree of protection:
IP55
Installation:
Recessed
Amps:
32A
