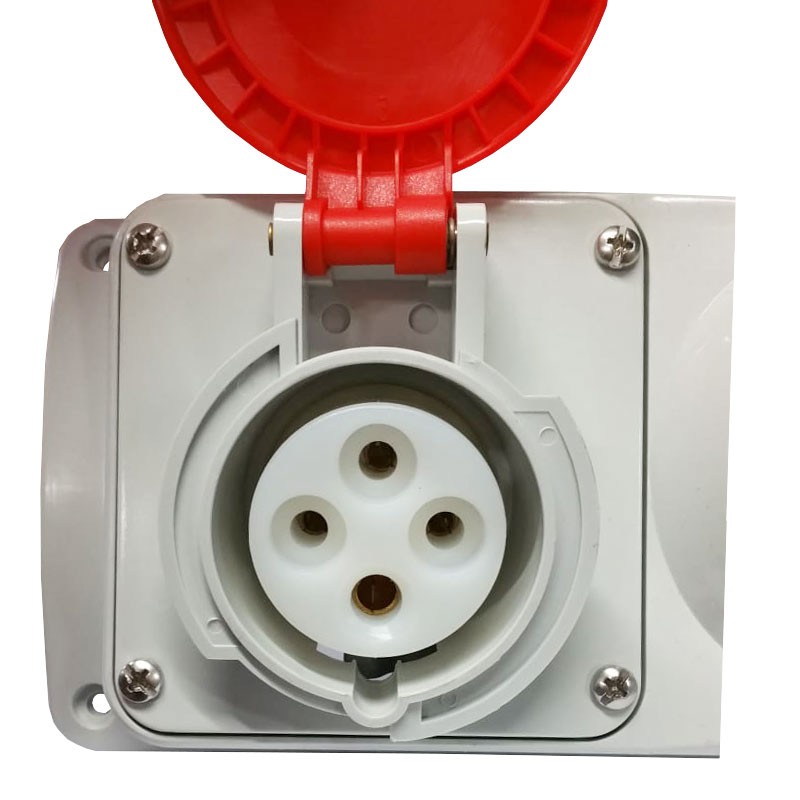

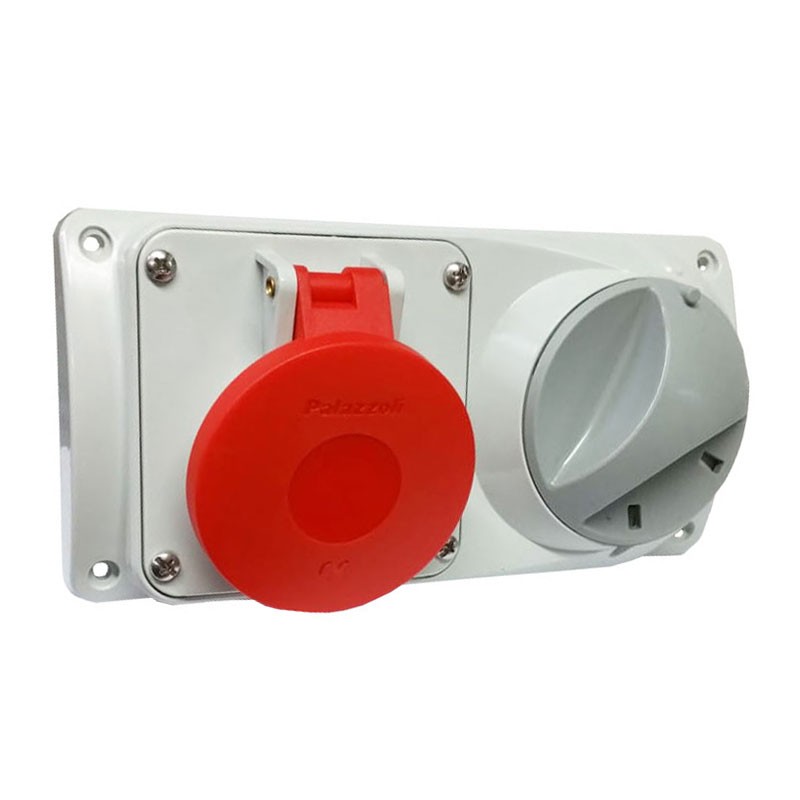

Palazzoli CEE Interlocked Industrial Socket 3P+E 16A 400V IP44
PAL 493136
8014950006250
Fixed industrial socket interlocked Palazzoli, with the following characteristics:
- Rated voltage: 400V
- Rated insulation voltage: 690V
- Poles: 3P+E
- Nominal current 16A
- Frequency 50/60Hz
- Degree of protection IP44
- Horizontal and compact
€36.45
Out of stock
Incoming
Features:
- Palazzoli Series
- Storage ambient temperature: MIN -30°C - MAX +70°C
- Ambient temperature: MIN -25°C - MAX +50°C
- Max conductor section 10 mm²
- Color: gray RAL 7035
- Terminal type: indirect clamping
- Shock resistance IK08 according to IEC/EN 62262
- Hourly ref: 6h
- Body material: thermoplastic
- Execution: panel
- Protection: none
- Width: 103 mm
- Insulation class II
- Utilization category AC-23A / AC-3 16A - 415V
- Dimensions: 103X206X80 mm
There are no reviews
Data sheet
- Type: Interlocked switch socket outlets
- Voltage: 380/415VAC
- Poles: 3P+E
- Degree of protection: IP44
- Installation: Recessed
- Amps: 16A
