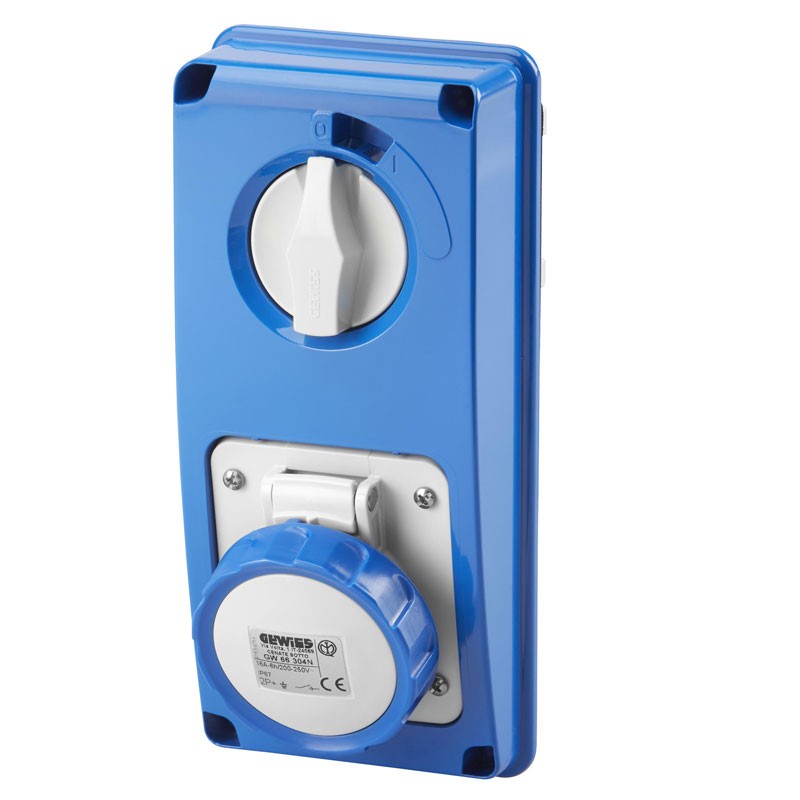

Gewiss vertical interlocked socket 2P+E 16A without bottom GW66304N
GEW GW66304N
8011564741591
Gewiss vertical interlocked fixed socket, with the following characteristics:
- Rated voltage 200 - 250V
- Rated current (In) IB socket: 16A
- Nominal current 16A
- Number of poles: 2P+T
- Frequency 50/60 Hz
- Protection degree IP67
€46.75
Items Available: 871
: 324
Features:
- Gewiss Series
- Without bottom
- Without fuse holder base
- Typology: vertical
- Thermopressure with ball: 125 °C
- Shock resistance: IK08
- Operating temperature: -25 +40 °C
- Electrocod code: 2222
- Glow wire test; 850 °C
- Color: blue
- Ware number 85366990
There are no reviews
Data sheet
- Type: Interlocked switch socket outlets
- Voltage: 220/250VAC
- Poles: 2P+E
- Degree of protection: IP67
- Installation: Wall/Recessed
- Amps: 16A
