Gewiss mobile plug 3P+T+N 32A IP67 red 380V GW60042H
GEW GW60042H
8011564797284

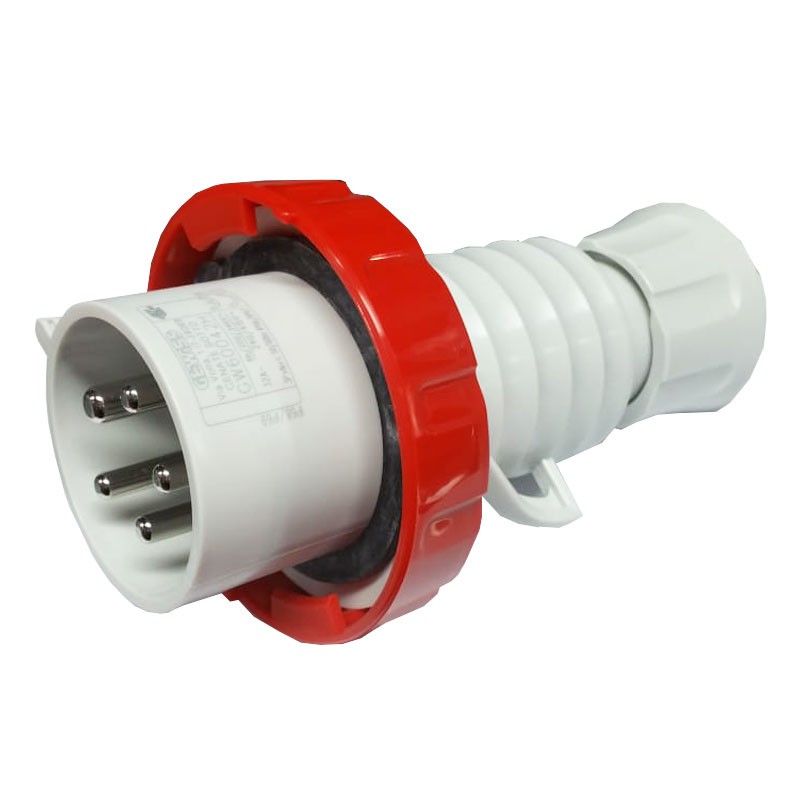

Gewiss HP straight/mobile plug, with the following characteristics:
- Rated voltage: 380 - 415V
- Frequency: 50/60 Hz
- Rated current 32A
- Poles: 3P+T+N
- Degree of protection IP67
Gewiss mobile plug 3P+T+N 32A IP67 red 380V GW60042H
€18.28
€18.28
Tax included
Tax included
Pay in installments with Klarna
Items Available: 132
Features:
- Gewiss Series
- Red color
- Shock resistance IK09
- Reference h: 6
- Terminal clamping capacity: 2.5-6 mm² flexible cables - 2.5-10 mm² rigid cables
- Clamping capacity: 9.2-19.9 mm
- Temperature range -25 +55 °C
- Wiring type: screw
- Material type: Halogen free according to EN 60754-2 standard
- Electrocod code: 2230
- Glow wire test: 850 °C (active parts) - 650 °C (passive parts)
- Total number of operations: > 2000
- Admissible overload: 42A
- Breaking capacity at 1,1 Un: 40A
- Insulation resistance: > 10 MΩ
- Thermopressure with ball: 125 °C (Active parts) - 80 °C (Passive parts)
Data sheet
- Type:
- CEE plugs
- Voltage:
- 380/415VAC
- Poles:
- 3P+N+T
- Degree of protection:
- IP67
- Installation:
- Furniture
- Amps:
- 32A
