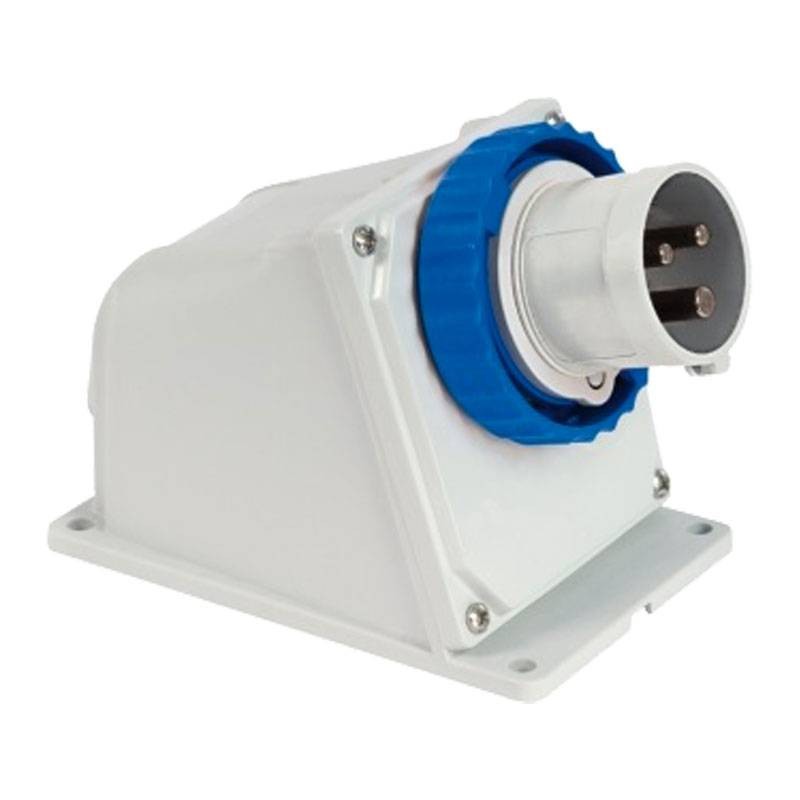

Fanton ARGO industrial wall plug 2P+E 16A 230V IP44 blue 70300
FME 70300
8015450703007
Fanton ARGO wall plug, ideal for industrial and construction site applications. Angled and with screwless terminals for safe and fast connection, with the following features:
-
Type: 2P+E 3-pin (phase, ground)
-
Rated voltage: 200/250V AC, 50/60 Hz
-
Rated current: 16A
-
Degree of protection: IP44, resistant to water splashes and solid bodies
-
Connection technique: quick-connect terminals (no screws)
-
Hour position: 6h
-
Mounting: Wall -mounted
-
Material: Shockproof plastic with nickel-plated surface treatment
-

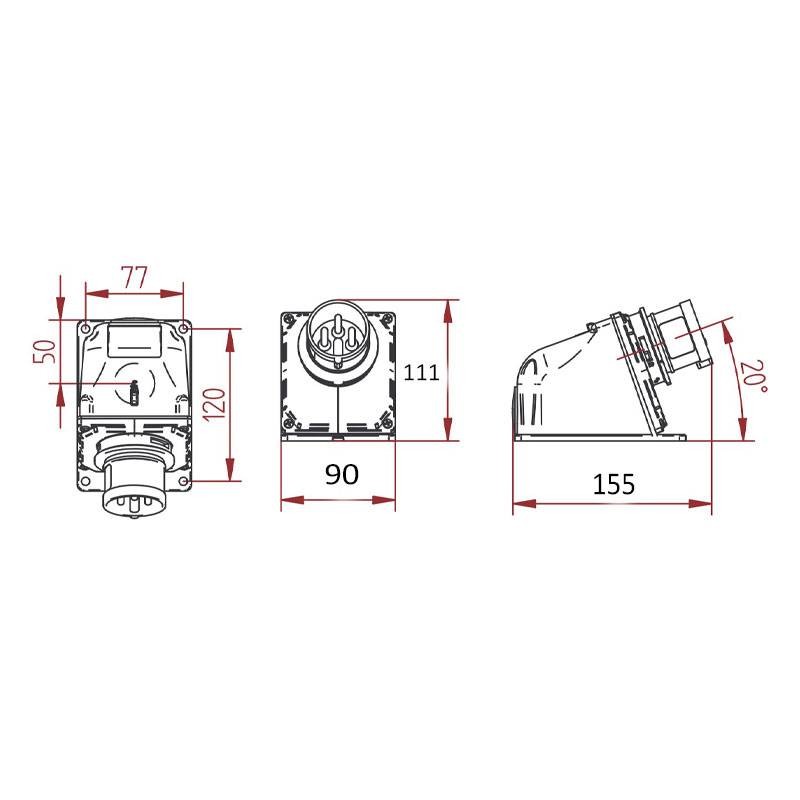

Dimensions: 90x135mm
-
Color: Blue
€7.17
Items Available: 8
: 4
Fanton wall plug: high performance even in harsh environments
The Fanton ARGO series wall plug is designed for professional use in environments where moisture and dust are a constant. Thanks to its IP44 protection rating, it can be used in industrial settings, workshops, laboratories and temporary construction sites.
Functional design and quick installation
The angled design facilitates cable connection in confined spaces or on vertical surfaces. The screwless quick-connect terminal system allows for easy wiring, reducing installation time while ensuring safe and stable electrical contact.
Versatility for industrial and civil installations
Compatible with standard 16A/230V receptacles and distribution boards, this plug is perfect for building or maintaining temporary or fixed electrical installations in protected indoor or outdoor environments.
Technical Characteristics Fanton Industrial Plug
| Parameter | Value |
|---|---|
| Type | Fixed wall plug |
| Poles | 2P+E (3 poles total) |
| Rated voltage | 200-250V AC |
| Frequency | 50/60 Hz |
| Rated current | 16A |
| Hourly position | 6h |
| IP protection | IP44 |
| Connection type | Screwless terminals |
| Plug-in direction | Angled |
| Material | Plastic |
| Surface treatment | Nickel-plated |
| Dimensions | 90 x 135 mm |
There are no reviews
Data sheet
- Type: CEE plugs
- Voltage: 200/250VAC
- Poles: 2P+E
- Degree of protection: IP44
- Installation: Wall-mounted
- Amps: 16A
