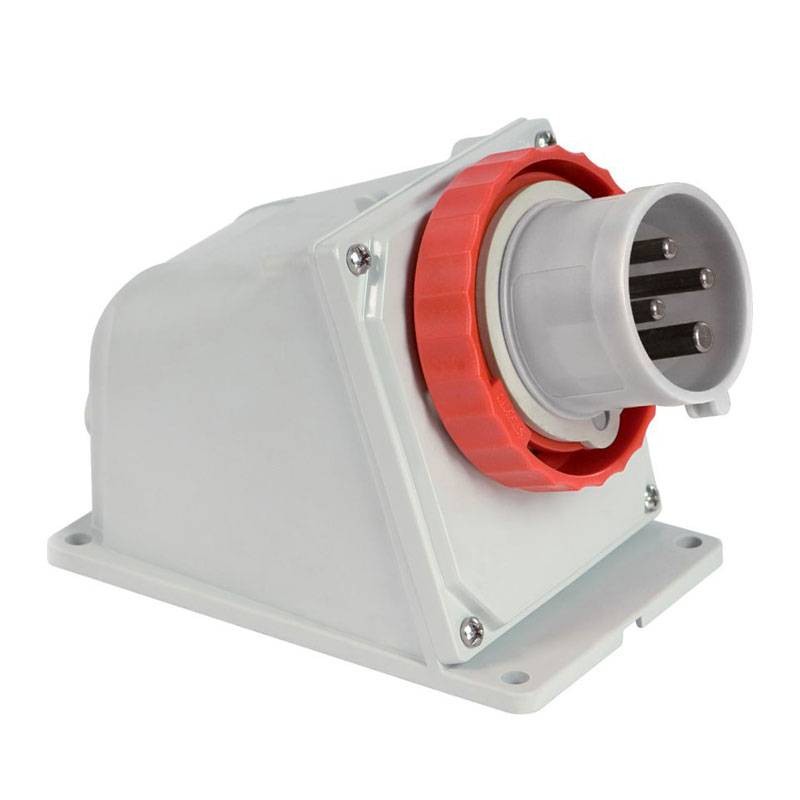

Fanton ARGO industrial wall plug 3P+N+E 32A 400V IP67 red 70328
FME 70328
8015450703281
Fanton ARGO wall plug, ideal for industrial and construction site applications. Angled and with screwless terminals for safe and fast connection, with the following features:
-
Type: 3P+N+E (phase, neutral, ground)
-
Rated voltage: 380-415V, 50/60 Hz
-
Rated current: 32A
-
Degree of protection: IP67, resistant to water splashes and solid bodies
-
Connection technique: quick-connect terminals (no screws)
-
Hour position: 6h
-
Mounting: Wall -mounted
-
Material: Shockproof plastic with nickel-plated surface treatment
-

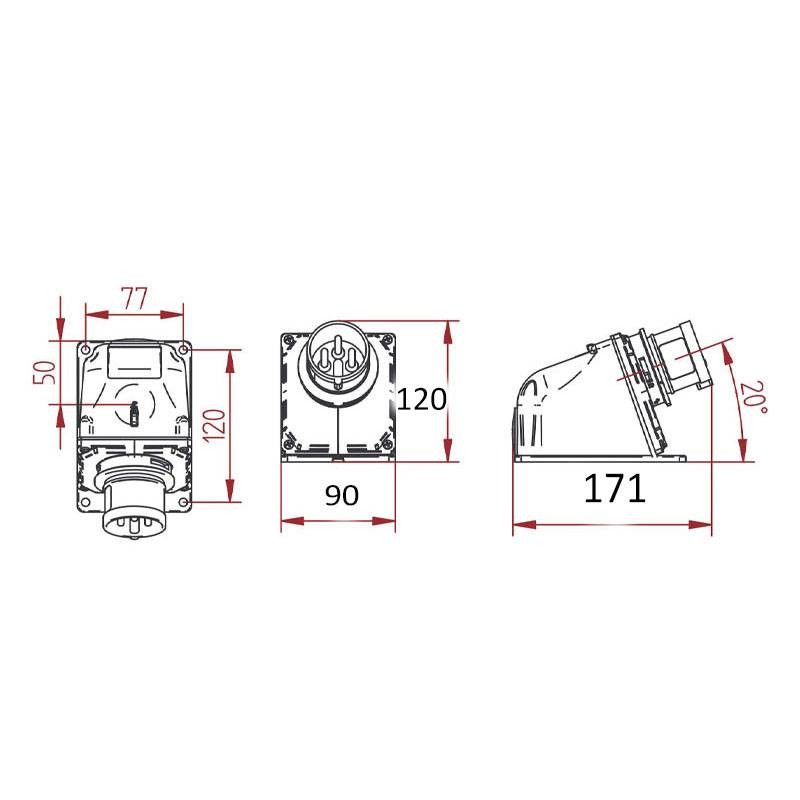

Dimensions: 90x135 mm
-
Color: Red
€16.29
Items Available: 9
: 9
Fanton wall plug: high performance even in harsh environments
The Fanton ARGO series wall plug is designed for professional use in environments where moisture and dust are a constant. Thanks to its IP67 protection rating, it can be used in industrial settings, workshops, laboratories and temporary construction sites.
Functional design and quick installation
The angled design facilitates cable connection in confined spaces or on vertical surfaces. The screwless quick-connect terminal system allows for easy wiring, reducing installation time while ensuring safe and stable electrical contact.
Versatility for industrial and civil installations
Compatible with standard 32A/400V receptacles and distribution boards, this plug is perfect for building or maintaining temporary or fixed electrical installations in protected indoor or outdoor environments.
Technical Characteristics Fanton Industrial Plug
| Parameter | Value |
|---|---|
| Type | Fixed wall plug |
| Poles | 3P+N+T |
| Rated voltage | 380-415V |
| Frequency | 50/60 Hz |
| Rated current | 32A |
| Hourly position | 6h |
| IP protection | IP67 |
| Connection type | Screwless terminals |
| Plug-in direction | Angled |
| Material | Plastic |
| Surface treatment | Nickel-plated |
| Dimensions | 90 x 135 mm |
There are no reviews
Data sheet
- Type: CEE plugs
- Voltage: 380/415VAC
- Poles: 3P+N+E
- Degree of protection: IP67
- Installation: Wall-mounted
- Amps: 32A
