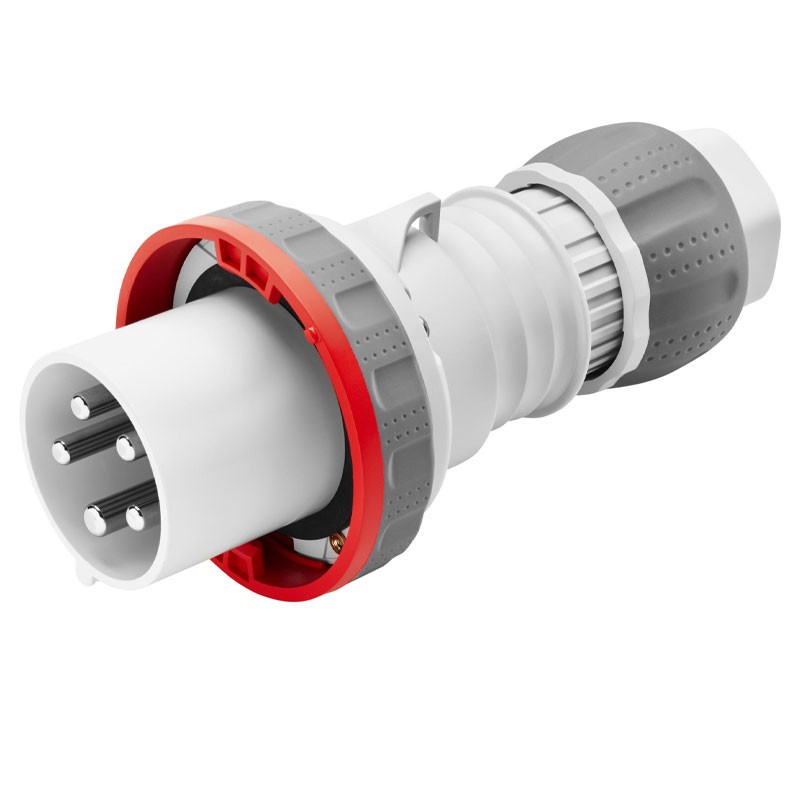

Gewiss mobile plug 3P+N+E 63A IP67 red 380V GW61053H
GEW GW61053H
8011564829534
Gewiss HP straight/mobile plug with the following features:
- Rated voltage: 346 - 415V
- Frequency: 50/60 Hz
- Rated current 63A
- Poles: 3P+N+T
- Degree of protection IP67
- Wiring: shell
Gewiss mobile plug 3P+N+E 63A IP67 red 380V GW61053H
€55.65
€55.65
Tax included
Tax included
Pay in installments with Klarna
Items Available: 68
Features:
- Gewiss Series
- Red color
- Shock resistance IK09
- Reference h: 6
- Clamping capacity: 6-16 mm² flexible cables - 6-25 mm² rigid cables
- Clamping capacity: 19.9-37 mm
- Operating temperature: -25 +55 °C
- Wiring type: shrouded
- Material type: Halogen free according to EN 60754-2
- Electrocod code: 2231
- Glow wire test: 850 °C (active parts) - 650 °C (passive parts)
- Total number of operations: > 2000
- Interrupting capacity at 1,1 Un: 79A
- Insulation resistance: > 10 MΩ
- Thermopressure with ball: 125 °C (Active Parts) - 80 °C (Passive Parts)
Data sheet
- Type:
- CEE plugs
- Voltage:
- 380/415VAC
- Poles:
- 3P+N+T
- Degree of protection:
- IP67
- Installation:
- Furniture
- Amps:
- 63A
