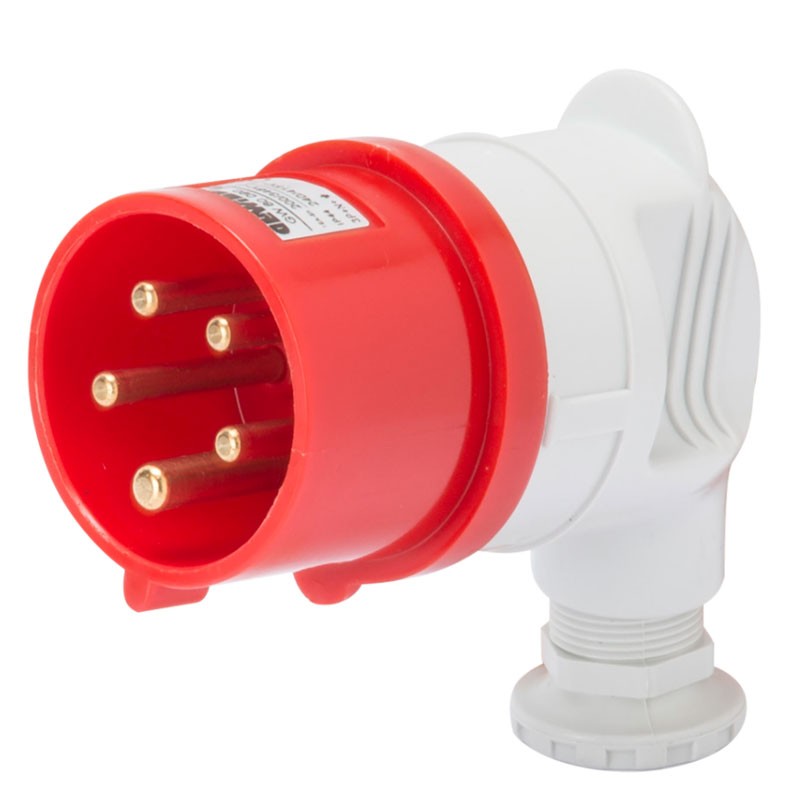

Gewiss mobile plug 3P+N+E 16A IP44 red 380V GW60090
GEW GW60090
8011564009110
Gewiss 90° mobile plug, with the following characteristics:
- Rated voltage 380-415V
- Number of poles 3P+N+T
- Nominal current 16A
- Degree of protection IP44
- Color red
Gewiss mobile plug 3P+N+E 16A IP44 red 380V GW60090
€8.98
€8.98
Tax included
Tax included
Pay in installments with Klarna
Items Available: 58
Features:
- Gewiss Series
- Shock resistance: IK08
- Reference h: 6
- Frequency: 50/60 Hz
- Clamping capacity:1-2.5 mm² flexible cables - 1.5-4 mm² rigid cables
- Clamping capacity: 9.2-15.6 mm
- Temperature range: -25 +55 °C
- Wiring type: screw
- Electrocod code: 2230
- Glow wire test: 850 °C (active parts) - 650 °C (passive parts)
- Total number of operations: > 5000
- Admissible overload: 22A
- Breaking capacity at 1,1 Un: 20 A
- Insulation resistance: > 10 MΩ
- Thermopressure with ball: 125 °C (active parts) - 80 °C (passive parts)
- Ware number 85366990
Data sheet
- Type:
- CEE plugs
- Voltage:
- 380/415VAC
- Poles:
- 3P+N+T
- Degree of protection:
- IP44
- Installation:
- Furniture
- Amps:
- 16A
