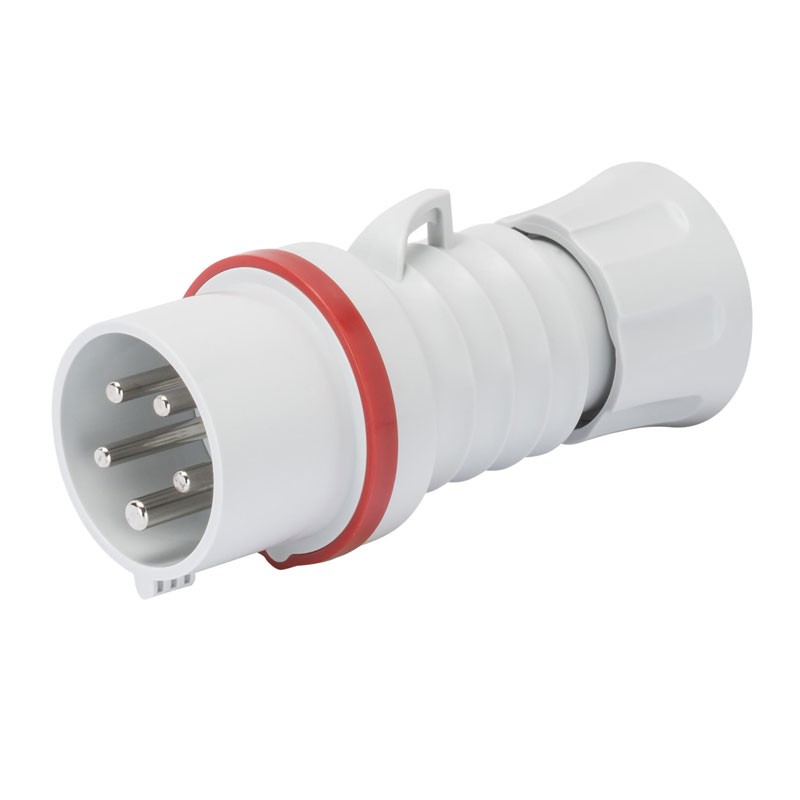

Gewiss mobile plug 3P+N+E 16A IP44 red 380V GW60009H
GEW GW60009H
8011564796683
Gewiss HP straight/mobile plug, with the following characteristics:
- Rated voltage: 380 - 415 Vac
- Rated current 16A
- Number of poles: 3P+N+T
- Frequency: 50/60 Hz
- Degree of protection IP44/IP54
Gewiss mobile plug 3P+N+E 16A IP44 red 380V GW60009H
€6.45
€6.45
Tax included
Tax included
Pay in installments with Klarna
Items Available: 458
Features:
- Gewiss Series
- Color: red
- Shock resistance IK09
- Reference h: 6
- Terminal clamping capacity: 1-2.5 mm² flexible cables - 1.5-4 mm² rigid cables
- Clamping capacity: 9.2-19.9 mm
- Operating temperature -25 +55 °C
- Wiring type: screw
- Material Type: Halogen free according to EN 60754-2
- Electrocod code: 2230
- Glow wire test: 850 °C (active parts) - 650 °C (passive parts)
- Total number of operations >5000
- Admissible overload: 22 A
- Breaking capacity at 1,1 Un: 20 A
- Insulation resistance: > 10 MΩ
- Thermopressure with ball: 125 °C (Active parts) - 80 °C (Passive parts)
- Ware number: 85366990
Data sheet
- Type:
- CEE plugs
- Voltage:
- 380/415VAC
- Poles:
- 3P+N+T
- Degree of protection:
- IP44
- Installation:
- Furniture
- Amps:
- 16A
