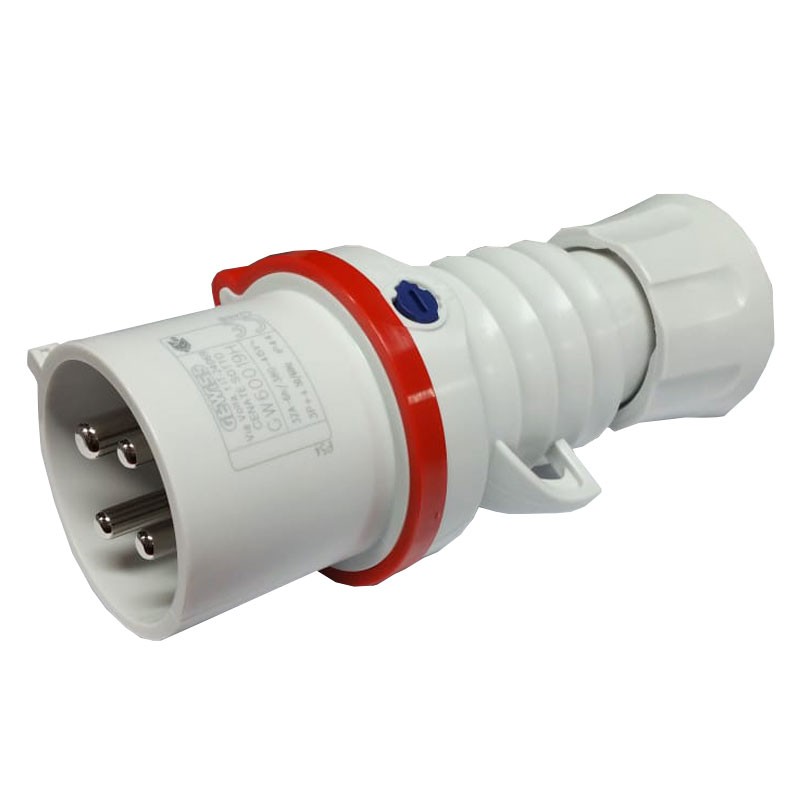

Gewiss mobile plug 3P+E 32A IP44 red 380V GW60019H
GEW GW60019H
8011564796867
Gewiss HP straight/mobile plug, with the following features:
- Rated voltage: 380 - 415V
- Frequency: 50/60 Hz
- Rated current 32A
- Poles: 3P+T
- Degree of protection IP44/IP54
Gewiss mobile plug 3P+E 32A IP44 red 380V GW60019H
€9.24
€9.24
Tax included
Tax included
Pay in installments with Klarna
Items Available: 219
Features:
- Gewiss Series
- Color: red
- Shock resistance IK09
- Reference h: 6
- Terminal clamping capacity: 2.5-6 mm² flexible cables - 2.5-10 mm² rigid cables
- Clamping capacity: 9.2-19.9 mm
- Temperature range -25 +55 °C
- Wiring type: screw
- Material type: Halogen free according to EN 60754-2 standard
- Electrocod code: 2230
- Glow wire test: 850 °C (active parts) - 650 °C (passive parts)
- Total number of operations >2000
- Admissible overload: 42 A
- Breaking capacity at 1,1 Un: 40 A
- Insulation resistance: > 10 MΩ
- Thermopressure with ball: 125 °C (Active Parts) - 80 °C (Passive Parts)
- Ware number: 85366990
Data sheet
- Type:
- CEE plugs
- Voltage:
- 380/415VAC
- Poles:
- 3P+T
- Degree of protection:
- IP44
- Installation:
- Furniture
- Amps:
- 32A
