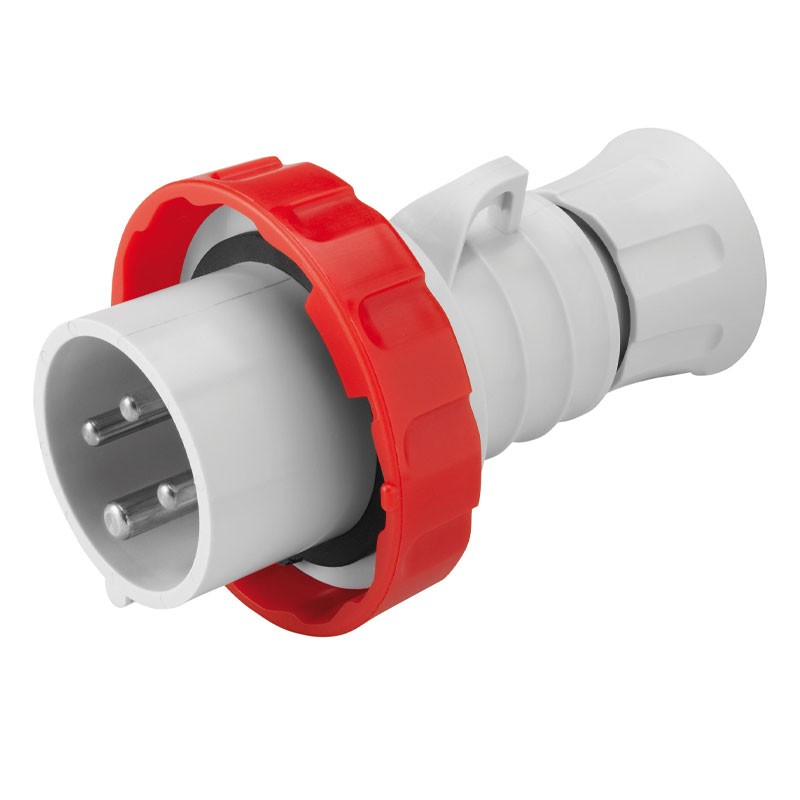

Gewiss mobile plug 3P+E 16A IP67 red 380V GW60030H
GEW GW60030H
8011564797062
Gewiss HP straight/mobile plug, with the following features:
- Rated voltage: 380 - 415V
- Frequency: 50/60 Hz
- Rated current 16A
- Poles: 3P+T
- Degree of protection IP67
€11.04
Items Available: 151
: 19
Features:
- Gewiss Series
- Color: red
- Shock resistance IK09
- Reference h: 6
- Terminal clamping capacity: 1-2.5 mm² flexible cables - 1.5-4 mm² rigid cables
- Clamping capacity: 7.5-13.8 mm
- Operating temperature -25 +55 °C
- Wiring type: screw
- Material type: Halogen free according to EN 60754-2 standard
- Electrocod code: 2230
- Glow wire test: 850 °C (active parts) - 650 °C (passive parts)
- Total number of operations >5000
- Admissible overload: 22 A
- Breaking capacity at 1,1 Un: 20 A
- Insulation resistance: > 10 MΩ
- Thermopressure with ball: 125 °C (Active parts) - 80 °C (Passive parts)
- Ware number: 85366990
There are no reviews
Data sheet
- Type: CEE plugs
- Voltage: 380/415VAC
- Poles: 3P+E
- Degree of protection: IP67
- Installation: Mobile
- Amps: 16A
