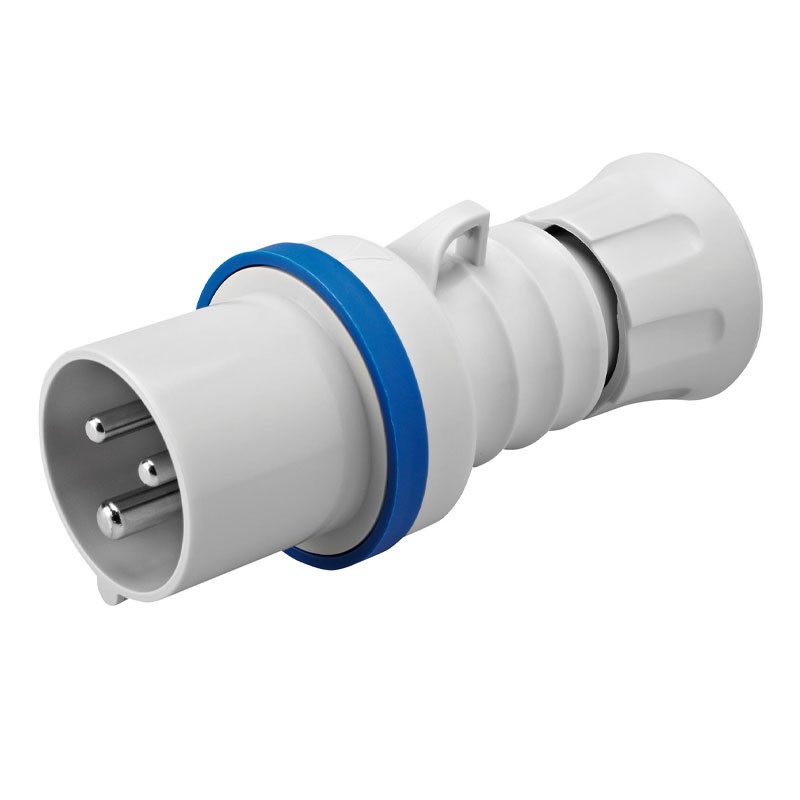

Gewiss mobile plug 2P+E 32A IP44 blue 220V GW60015H
GEW GW60015H
8011564796782
Gewiss HP straight mobile plug, with the following characteristics:
- Rated voltage: 200 - 250V
- Frequency: 50/60 Hz
- Rated current 32A
- Poles: 2P+T
- Degree of protection IP44/IP54
Gewiss mobile plug 2P+E 32A IP44 blue 220V GW60015H
€8.31
€8.31
Tax included
Tax included
Pay in installments with Klarna
Items Available: 218
Features:
- Gewiss Series
- Admissible overload: 42A
- Interrupting capacity at 1.1 Un: 40A
- Glow wire test: 850 °C (active parts) - 650 °C (passive parts)
- Insulation resistance: > 10 MΩ
- Blue color
- Impact resistance: IK09
- Wiring type: screw
- N. Total Manoeuvres >2000
- Thermopressure with ball: 125 °C (Active parts) - 80 °C (Passive parts)
- Reference h: 6
- Clamping capacity: 2,5-6 mm² flexible cables - 2,5-10 mm² rigid cables
- Clamping capacity: 9.2-19.9 mm
- Material type: Halogen free according to EN 60754-2 standard
- Temperature range -25 +55 °C
I am happy with my purchases dear you
Come descritto sul sito non si trova nessuna difformità
punto di forza della gewiss , ottimo prodotto
Data sheet
- Type:
- CEE plugs
- Voltage:
- 220/250VAC
- Poles:
- 2P+T
- Degree of protection:
- IP44
- Installation:
- Furniture
- Amps:
- 32A
