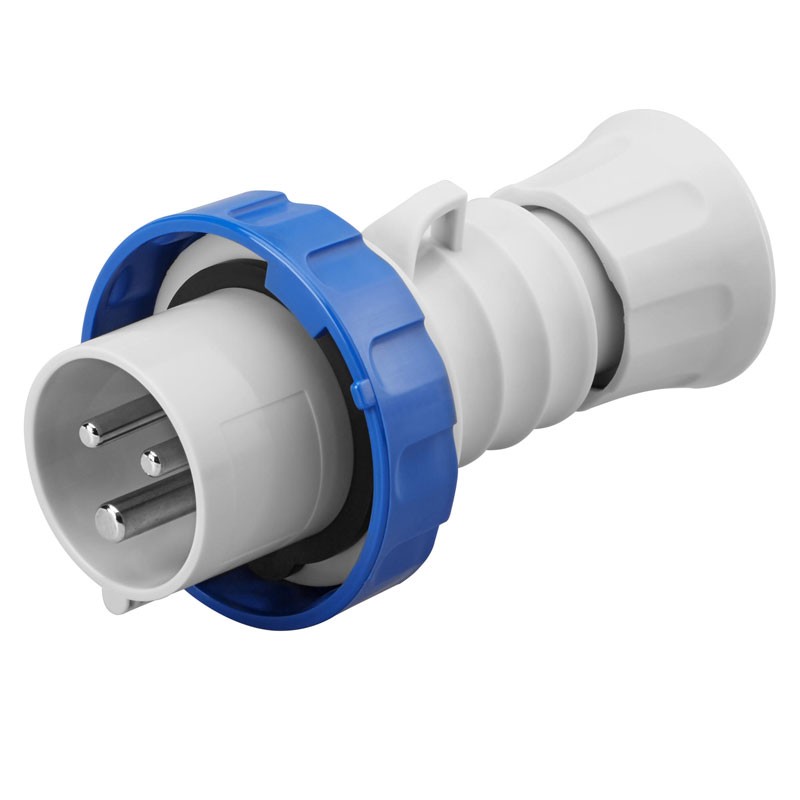

Gewiss mobile plug 2P+E 16A IP67 blue 220V GW60026H
GEW GW60026H
8011564796980
Gewiss HP straight/mobile plug, with the following features:
- Rated voltage: 200 - 250V
- Frequency: 50/60 Hz
- Rated current 16A
- Poles: 2P+T
- Degree of protection IP67
Gewiss mobile plug 2P+E 16A IP67 blue 220V GW60026H
€8.84
€8.84
Tax included
Tax included
Pay in installments with Klarna
Items Available: 827
Features:
- Gewiss Series
- Color: blue
- Shock resistance IK09
- Reference h: 6
- Terminal clamping capacity: 1-2.5 mm² flexible cables - 1.5-4 mm² rigid cables
- Clamping capacity: 7.5-13.8 mm
- Operating temperature -25 +55 °C
- Wiring type: screw
- Material type: Halogen free according to EN 60754-2 standard
- Electrocod code: 2230
- Glow wire test: 850 °C (active parts) - 650 °C (passive parts)
- Total number of operations >5000
- Admissible overload: 22 A
- Breaking capacity at 1,1 Un: 20 A
- Insulation resistance: > 10 MΩ
- Thermopressure with ball: 125 °C (active parts) - 80 °C (passive parts)
- Ware number: 85366990
The interlock is easy, feels good en closes easy
Ottimo negozio online.
I prodotti rispettano la descrizione.
Consegna velocissima.
Ottimo dialogo con il personale.
Lo consiglio.
Data sheet
- Type:
- CEE plugs
- Voltage:
- 220/250VAC
- Poles:
- 2P+T
- Degree of protection:
- IP67
- Installation:
- Furniture
- Amps:
- 16A
