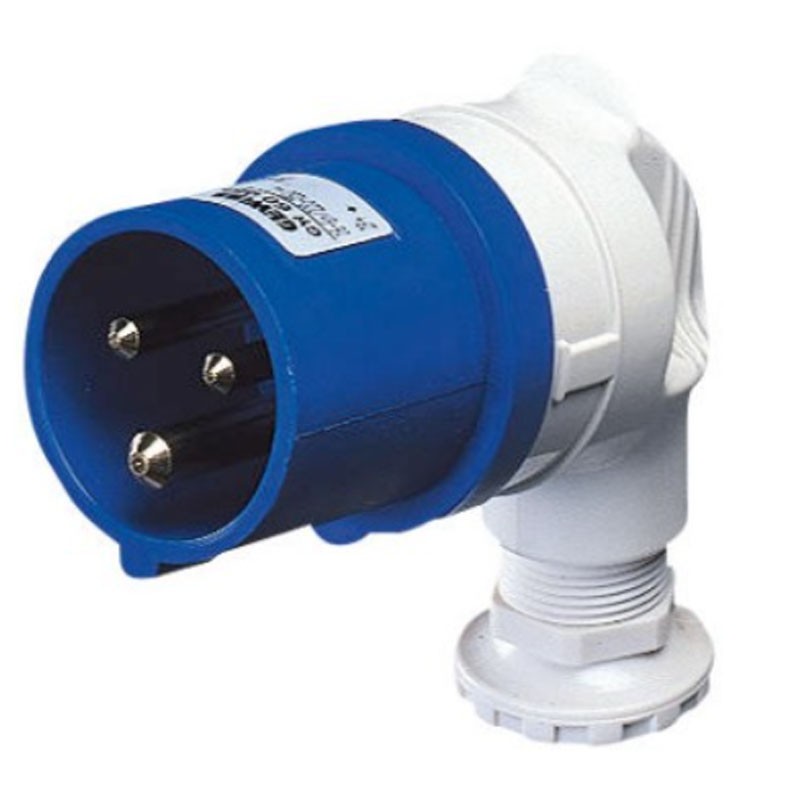

Gewiss mobile plug 2P+E 16A IP44 blue 220V GW60085
GEW GW60085
8011564009097
Gewiss 90° mobile plug, with the following characteristics:
- Rated voltage: 200-250 V
- Frequency: 50/60 Hz
- Rated current 16A
- Poles: 2P+T
- Degree of protection IP44
- Screw wiring
Gewiss mobile plug 2P+E 16A IP44 blue 220V GW60085
€6.91
€6.91
Tax included
Tax included
Pay in installments with Klarna
Items Available: 90
Features:
- Gewiss Series
- Blue color
- Shock resistance IK08
- Reference h: 6
- Clamping capacity: 1-2.5 mm² flexible cables - 1.5-4 mm² rigid cables
- Clamping capacity: 7.5-13.2 mm
- Operating temperature -25 +55 °C
- Electrocod code: 2230
- Glow wire test: 850 °C (active parts) - 650 °C (passive parts)
- Total number of operations: > 5000
- Admissible overload: 22 A
- Breaking capacity at 1,1 Un: 20A
- Insulation resistance: > 10 MΩ
- Thermopressure with ball: 125 °C (Active Parts) - 80 °C (Passive Parts)
- Ware number: 85366990
There are no reviews
Data sheet
- Type:
- CEE plugs
- Voltage:
- 220/250VAC
- Poles:
- 2P+T
- Degree of protection:
- IP44
- Installation:
- Furniture
- Amps:
- 16A
