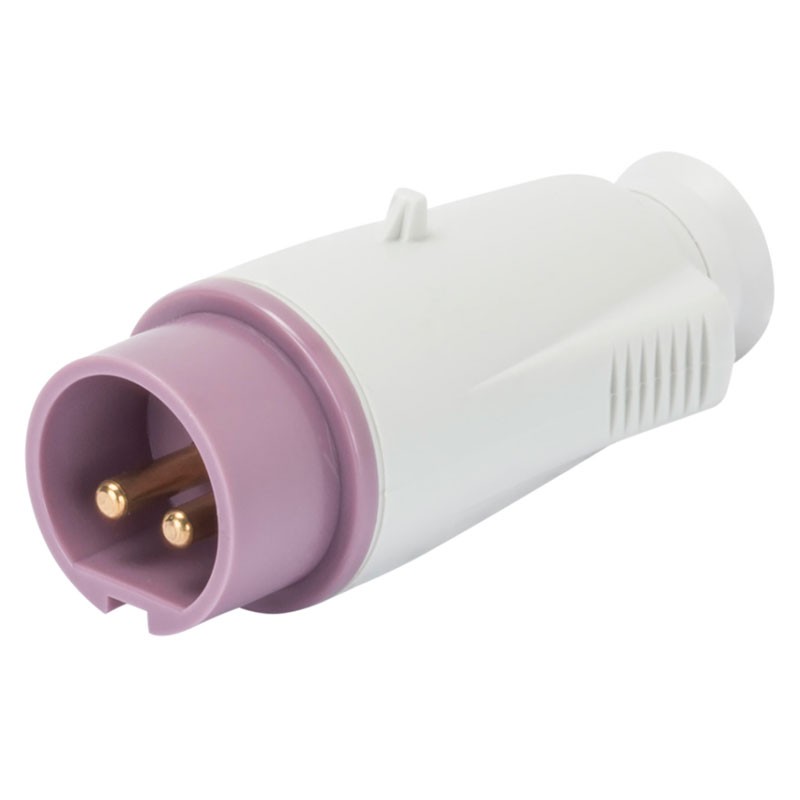

Gewiss mobile plug 2P 16A IP44 purple 24V GW60064
GEW GW60064
8011564010994
Gewiss straight/mobile plug, with the following characteristics:
- Nominal voltage: 20- 25V
- Frequency: 50/60 Hz
- Rated current 16A
- Poles: 2
- Degree of protection IP44
- Screw wiring
Gewiss mobile plug 2P 16A IP44 purple 24V GW60064
€8.91
€8.91
Tax included
Tax included
Pay in installments with Klarna
Items Available: 203
Features:
- Gewiss Series
- Violet color
- Impact resistance IK08
- Terminal clamping capacity: 1-2,5 mm² flexible cables - 1,5-4 mm² rigid cables
- Operating temperature -25 +55 °C
- Electrocod code: 2230
- Glow wire test: 850 °C (active parts) - 650 °C (passive parts)
- Total number of operations: > 5000
- Admissible overload: 22 A
- Breaking capacity at 1,1 Un: 20A
- Insulation resistance: > 10 MΩ
- Thermopressure with ball: 125 °C (Active Parts) - 80 °C (Passive Parts)
- Ware number: 85366990
Data sheet
- Type:
- CEE plugs
- Voltage:
- 20/25VAC
- Poles:
- 2P
- Degree of protection:
- IP44
- Installation:
- Furniture
- Amps:
- 16A
