Gewiss interlocked socket 3P+N+E 16A IP66 380V GW66809

Gewiss
Gewiss
GEW GW66809 8011564066076

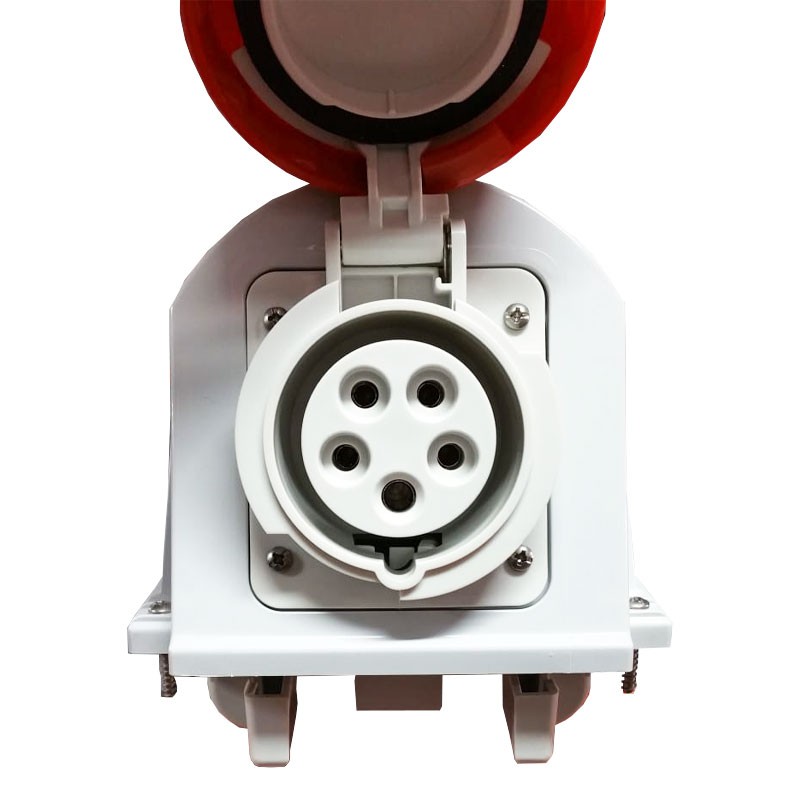

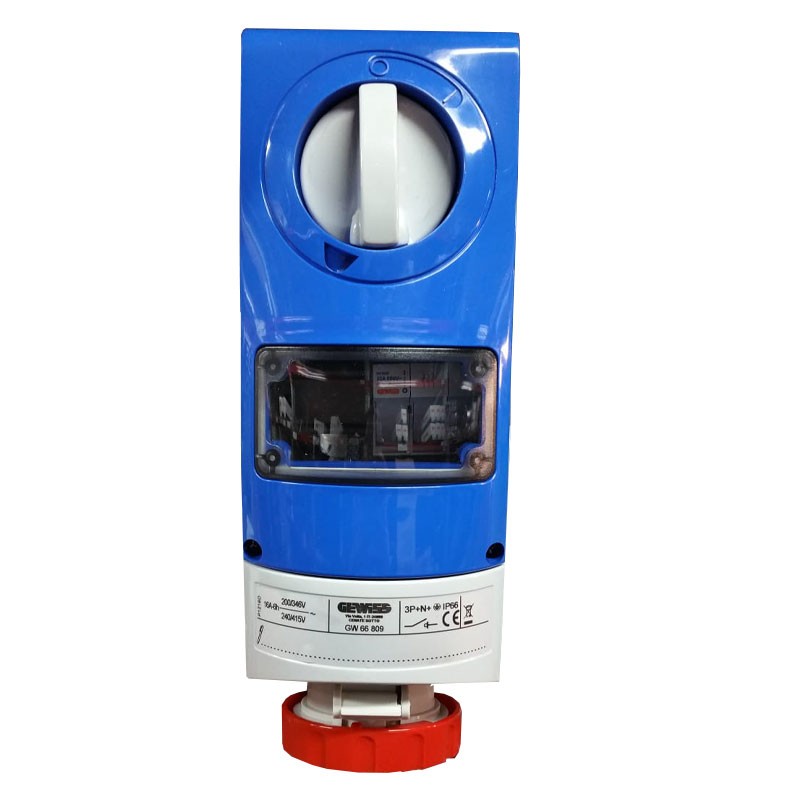

Gewiss vertical interlocked fixed socket, with the following characteristics:

  • Rated voltage: 380-415V
  • Rated current 16A
  • Frequency 50/60 Hz
  • Number of poles 3P+T+N
  • Degree of protection IP66
Do you have questions about this product or did you not find what you were looking for? Ask us!
Gewiss interlocked socket 3P+N+E 16A IP66 380V GW66809
€172.20
€172.20

€172.20
Tax included
Calculate shipping cost
Items Available: 1
Further availability of the manufacturer
€172.20

Buy it within and receive it from Wednesday, 24 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Features:

  • Gewiss Series
  • Protection: with fuse holder base (CBF)
  • Suitable for heavy duty
  • Without base
  • Fuse type: Ø 10,3x38 mm
  • Typology: vertical
  • Thermopressure with ball: 80 °C
  • Shock resistance at -20°C: 20 J
  • Shock resistance: > IK10
  • Operating temperature: -25 +40 °C
  • Electrocod code 2222
  • Glow wire test: 850 °C
  • Color: red
  • Reference: h 6
  • Ware number 85366990

There are no reviews

Data sheet

Type:
Interlocked switch socket outlets
Voltage:
380/415VAC
Poles:
3P+N+E
Degree of protection:
IP66
Installation:
Wall-mounted
Amps:
16A
