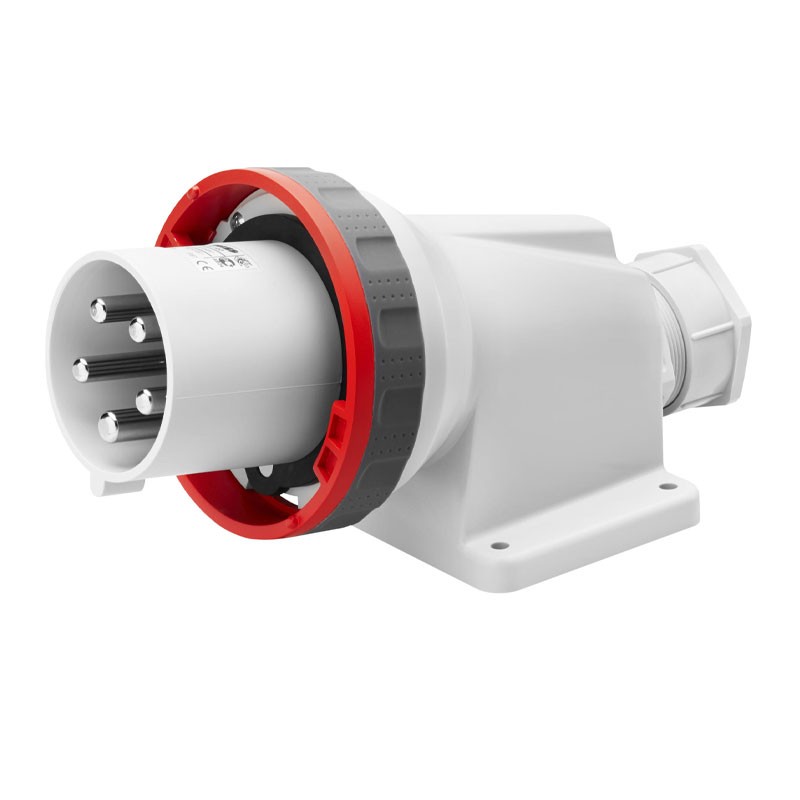

Gewiss fixed wall plug 3P+N+E 63A IP67 red 380V GW61453
GEW GW61453
8011564023741
Gewiss fixed wall plug, with the following characteristics:
- Rated voltage: 380-415V
- Frequency: 50/60 Hz
- Rated current 63A
- Poles: 3P+N+T
- Degree of protection IP67
- Wiring: shell
Gewiss fixed wall plug 3P+N+E 63A IP67 red 380V GW61453
€55.65
€55.65
Tax included
Tax included
Pay in installments with Klarna
Items Available: 49
Features:
- Gewiss Series
- Interrupting capacity at 1.1 Un: 79A
- Glow wire test: 850 °C (active parts) - 650 °C (passive parts)
- Insulation resistance: > 10 MΩ
- Red color
- Impact resistance: IK08
- Wiring type: shrouded
- N. Total operations >2000
- Thermopressure with ball: 125 °C (Active parts) - 80 °C (Passive parts)
- Reference h: 6
- Clamping capacity: 6-16 mm² flexible cables - 6-25 mm² rigid cables
- Operating temperature: -25 +55 °C
There are no reviews
Data sheet
- Type:
- CEE plugs
- Voltage:
- 380/415VAC
- Poles:
- 3P+N+T
- Degree of protection:
- IP67
- Installation:
- Wall-mounted
- Amps:
- 63A
