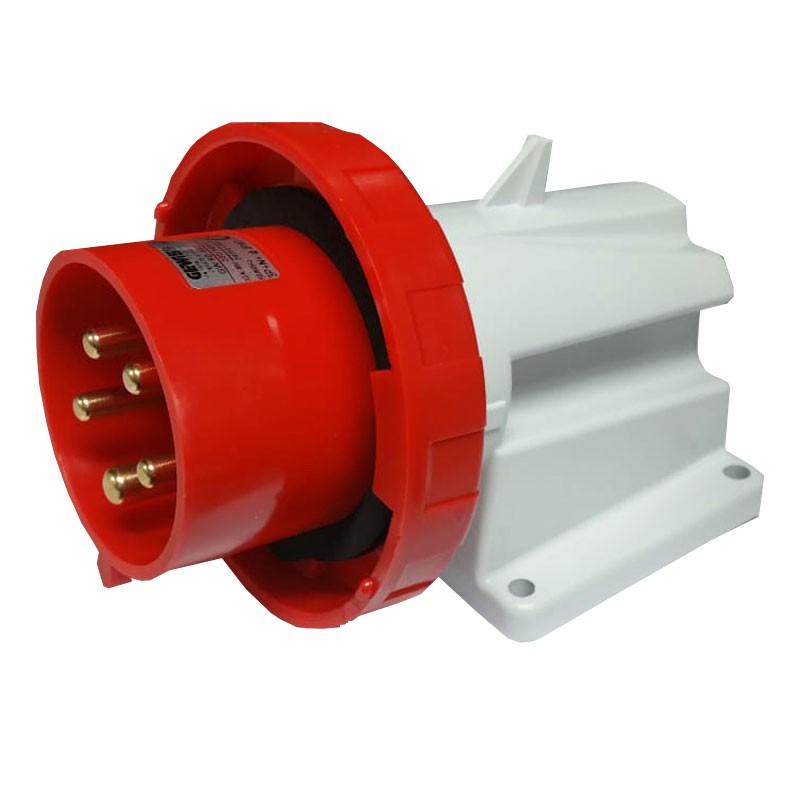

Gewiss fixed wall plug 3P+N+E 32A IP67 red 380V GW60442
GEW GW60442
8011564010659
Gewiss 90° fixed wall plug with the following features:
- Rated voltage 380-415V
- Number of poles 3P+N+T
- Rated current 32A
- Frequency: 50/60 Hz
- Degree of protection IP44
- Wiring: screw
Gewiss fixed wall plug 3P+N+E 32A IP67 red 380V GW60442
€22.61
€22.61
Tax included
Tax included
Pay in installments with Klarna
Items Available: 46
Features:
- Gewiss Series
- Red color
- Impact resistance: IK08
- Reference h: 6
- Frequency: 50/60 Hz
- Terminal clamping capacity: 1-2.5 mm² flexible cables - 1.5-4 mm² rigid cables
- Operating temperature -25 +55 °C
- Wiring type: screw
- Electrocod code: 2230
- Glow wire test: 850 °C (active parts) - 650 °C (passive parts)
- Total number of operations: >2000
- Admissible overload: 42A
- Breaking capacity at 1,1 Un: 40 A
- Insulation resistance: > 20 MΩ
- Thermopressure with ball: 125 °C (active parts) - 80 °C (passive parts)
- Ware number 85366990
Data sheet
- Type:
- CEE plugs
- Voltage:
- 380/415VAC
- Poles:
- 3P+N+T
- Degree of protection:
- IP67
- Installation:
- Wall-mounted
- Amps:
- 32A
