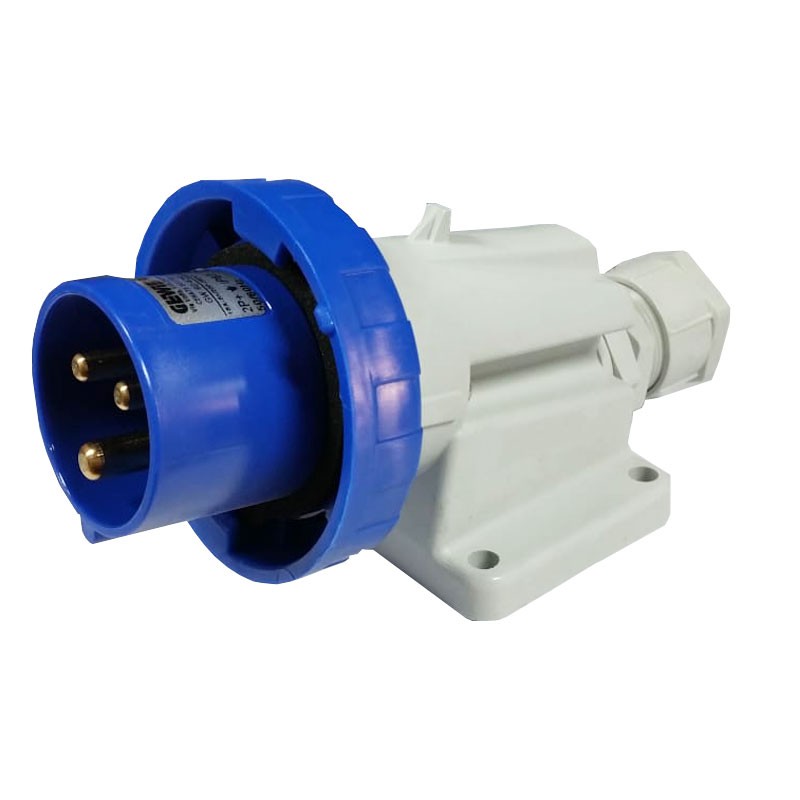

Gewiss fixed wall plug 2P+E 16A IP67 blue 220V GW60426
GEW GW60426
8011564010536
Gewiss 90° fixed wall plug with the following features:
- Rated voltage 200-250V
- Number of poles 2P+T
- Nominal current 16A
- Frequency: 50/60 Hz
- Degree of protection IP44
- Wiring: screw
Gewiss fixed wall plug 2P+E 16A IP67 blue 220V GW60426
€13.76
€13.76
Tax included
Tax included
Pay in installments with Klarna
Items Available: 58
Features:
- Gewiss Series
- Blue color
- Impact resistance: IK08
- Reference h: 6
- Frequency: 50/60 Hz
- Terminal clamping capacity: 1-2.5 mm² flexible cables - 1.5-4 mm² rigid cables
- Operating temperature -25 +55 °C
- Wiring type: screw
- Electrocod code: 2230
- Glow wire test: 850 °C (active parts) - 650 °C (passive parts)
- Total number of operations: > 5000
- Admissible overload: 22A
- Breaking capacity at 1,1 Un: 20 A
- Insulation resistance: > 10 MΩ
- Thermopressure with ball: 125 °C (active parts) - 80 °C (passive parts)
- Ware number 85366990
Data sheet
- Type:
- CEE plugs
- Voltage:
- 220/250VAC
- Poles:
- 2P+T
- Degree of protection:
- IP67
- Installation:
- Wall-mounted
- Amps:
- 16A
