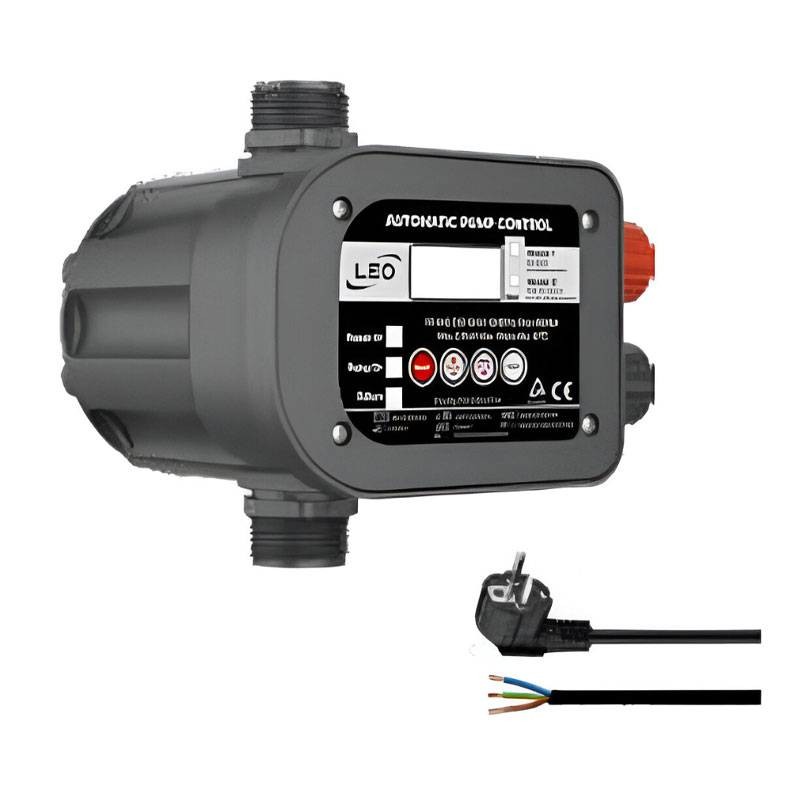

Leo 30A 0.5-6.7 bar electronic pressure flow switch for electric pumps 10PS04E

LEO Pumps
LEO Pumps
60R 10PS04E 6946687604404

Leo Pumps electronic pressure flow switch for electric pumps with dual pressostatic and pressure flow function, adjustable pressure via digital display and automatic reset, with the following features:

  • Adjustable pressure: 0.5 6.7 bar via digital display

  • Dual function: pressostatic and presso-fluxostatic

  • Reset: Integrated automatic

  • Max. motor power: 2.2 kW / 3 HP

  • Maximum current: 30 A

  • Maximum pressure: 8 bar

  • Connection: 1 inch threaded

  • Degree of protection: IP65

  • Power cable with: SHUKO plug (1.6 m) + pump cable (45 cm)

Do you have questions about this product or did you not find what you were looking for? Ask us!
Leo 30A 0.5-6.7 bar electronic pressure flow switch for electric pumps 10PS04E
€69.17
€69.17

€69.17
Tax included
Calculate shipping cost
Out of stock
Further availability of the manufacturer
Incoming
€69.17

Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Precise control Leo pressure flow switch with digital display

The electronic pressure flow switch with display is the ideal solution for advanced control of electric pumps. Thanks to the digital display, the activation pressure can be precisely set in the range of 0.5 to 6.7 bar, adapting perfectly to the needs of the system.

Integrated dual function: versatility at its best

This device combines the functions of pressure switch and pressure-flow switch, offering complete control over both pressure and flow for optimized management of water resources. Automatic reset ensures continuity of service in case of faults.

Safe, powerful and ready-to-use

Equipped with a 1-inch connection, IP65 rating and compatibility with motors up to 2.2 kW, this regulator is ready for installations even in harsh environments. Complete with wiring harness with SHUKO plug and pump cable, it enables quick and safe installation.

Technical Specifications Leo Electronic pressure flow Switch

Supply voltage 230V ± 10%
Maximum current 30 A
Maximum motor power 2.2 kW / 3 HP
Adjustable pressure 0.5 - 6.7 bar
Maximum pressure 8 bar
Hydraulic connection 1 inch threaded
Operating temperature 0-60 degrees
Degree of protection IP65
Display Integrated digital
Power Cable 1.6 m with SHUKO plug
Pump cable 45 cm
Compliance RoHS Directive
Functions Pressostatic and pressoflow switch

There are no reviews

Data sheet

Type:
Flow switches
Model:
Electronic
Connections:
1 inch
