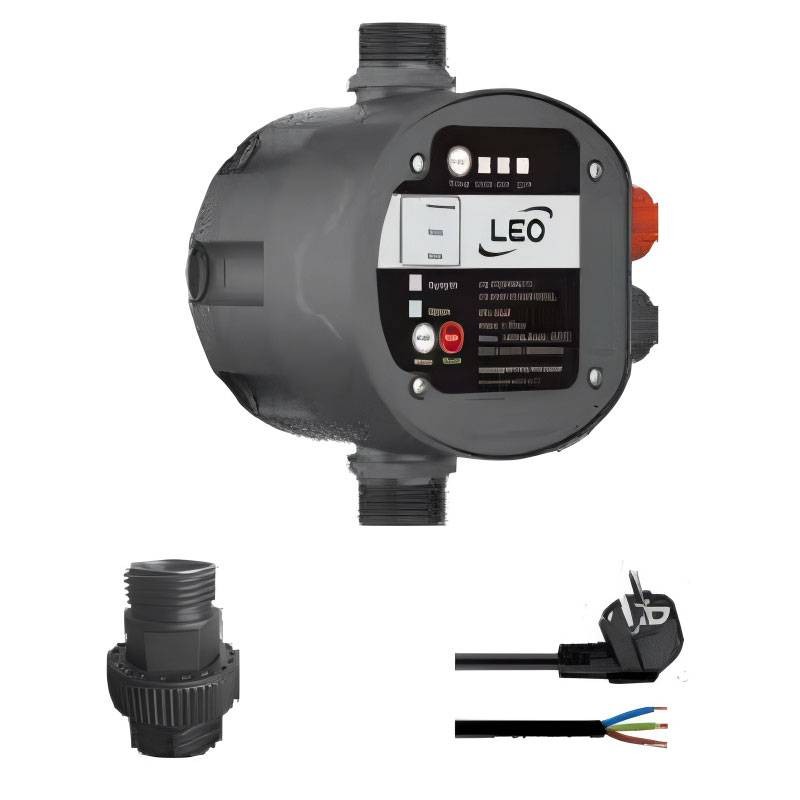

Electronic pressure flow switch for electric pumps Leo 1.2 to 3 bar IP65 1.5 kW 10PS04T

LEO Pumps
LEO Pumps
60R 10PS04T 6946687652313

Leo Pumps electronic pressure flow switch for electric pumps with triple function (pressure, flow, time), automatic reset and adjustable restart pressure. Complete with pressure gauge and cables, with the following features:

  • Adjustable pressure: 1.2 to 3 bar

  • Three operating modes: pressure, flow and time

  • Maximum pump power: 1.5 kW (2 HP)

  • Max current: 10 A

  • Connection: 1 inch

  • Maximum pressure: 10 bar

  • Degree of protection: IP65

  • Cables included: 1.6 m with SHUKO plug + 45 cm for pump connection

Do you have questions about this product or did you not find what you were looking for? Ask us!
Electronic pressure flow switch for electric pumps Leo 1.2 to 3 bar IP65 1.5 kW 10PS04T
€47.76
€47.76

€47.76
Tax included
Calculate shipping cost
Items Available: 6
Further availability of the manufacturer
€47.76

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Pressoflussostat Leo electric pump control with a single device

The Leo pressure flow switch, represents an intelligent and compact solution for the management of domestic and industrial electric pumps. With its triple operating mode (pressure, flow, time), it ensures precise and reliable control under all conditions of use.

Quick installation and simple configuration

Equipped with adjustable restart pressure between 1.2 and 3 bar, it allows customization of the water system according to specific needs. The device comes already wired with SHUKO plug and pump outlet cable, making installation as easy as possible.

Guaranteed safety and security

With IP65 rating, it is protected against dust and water jets, making it suitable even for installations in wet or outdoor environments. The automatic reset function ensures continuity of service even in case of blockages or faults.

Technical Specifications Electronic pressure flow switch Leo

Supply voltage 220-240V
Frequency 50/60 Hz
Maximum current 10 A
Max pump power 1.5 kW / 2 HP
Hydraulic connection 1 inch threaded
Adjustable restart pressure 1.2 to 3 bar
Maximum pressure 10 bar
Maximum operating temperature 60 degrees
Protection IP65
Functions Pressure / Flow / Time
Reset Automatic
Power Cable 1.6 m with SHUKO plug
Pump cable 45 cm
Compliance RoHS

There are no reviews

Data sheet

Type:
Flow switches
Model:
Electronic
Connections:
1 inch
