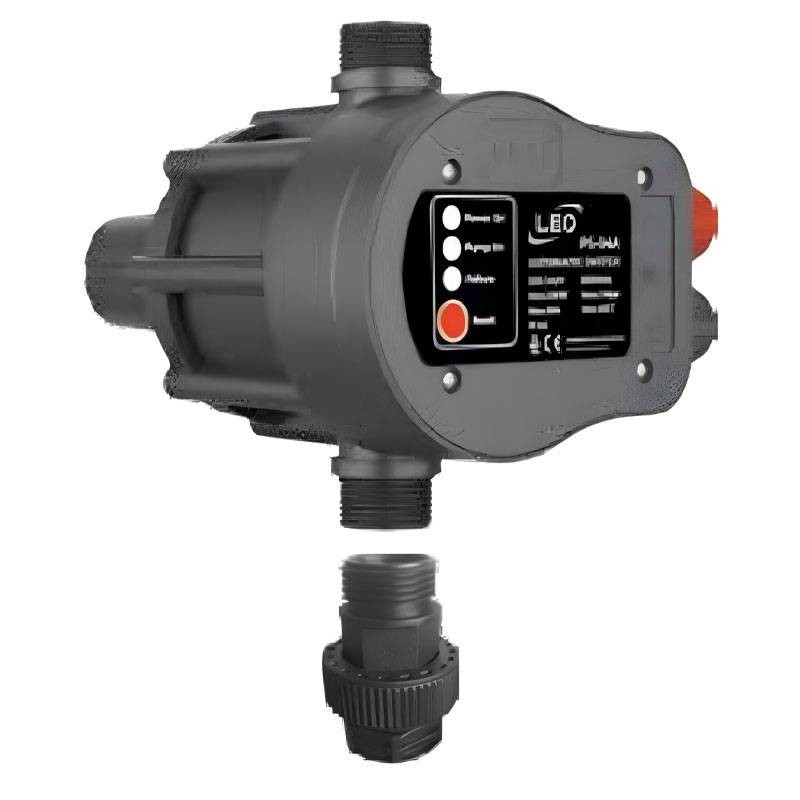

Leo 1.5 bar electronic flow switch for electric pumps IP65 10PS0415
60R 10PS0415
6946687615615
Leo electronic flow switch for automatic control of electric pumps, with start/stop according to the opening of taps, protection against dry running and water hammer, with the following features:
-
Fixed starting pressure: 1.5 bar
-
Maximum pressure: 10 bar
-
Maximum current: 10 A
-
Voltage: 230V
-
Connection: 1 inch threaded
-
Degree of protection: IP65, ideal for installation in wet environments
€29.65
Items Available: 10
: 3
Leo electronic flow switch efficient control of the electric pump
The Leo Pressoflow Switch is designed to ensure automatic management of the startup and shutdown of an electric pump based on the opening of system use points (taps, valves, etc.). It is a practical and reliable device for hydraulic automation in domestic, agricultural or light industrial environments.
Protection against dry running and water hammer
Equipped with advanced safety functions, it automatically stops the pump in case of water shortage, preventing damage to the system. It also reduces the damaging effects of water hammer, improving the life and efficiency of the water supply.
Easy installation and high compatibility
With its standard 1-inch connection and IP65 rating, it is easy to install and durable even in outdoor or wet environments. It requires no complex configurations and is perfect for electric pumps up to 10 A and 10 bar pressure.
Technical Specifications Leo Electronic flow switch
| Starting pressure | 1.5 bar |
|---|---|
| Maximum pressure | 10 bar |
| Hydraulic connection | 1 inch threaded |
| Supply voltage | 230V ±10% |
| Maximum current | 10 A |
| Operating temperature range | 0 - 60 degrees |
| Degree of protection | IP65 |
| Standard | RoHS |
| Functions | Automatic start/stop of electric pump Dry run stop Water hammer protection |
There are no reviews
Data sheet
- Type: Flow switches
- Model: Electronic
- Connections: 1 inch
