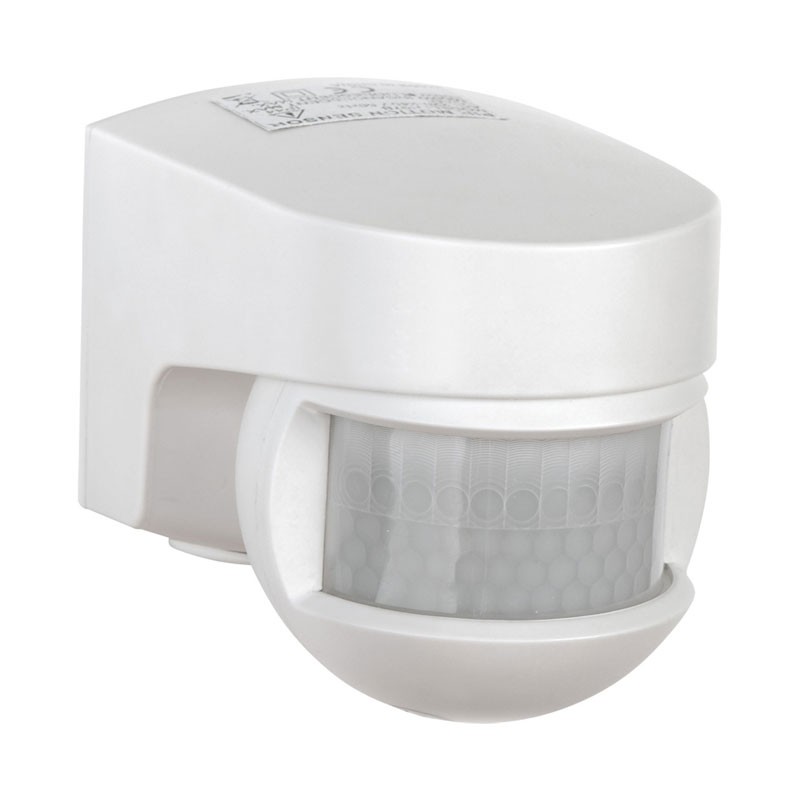

Vemer SENSOR 140 Infrared Motion Detector Wall Mounted 230V VE212700
VEM VE212700
8007951119579
Vemer Infrared Motion Detector with wall installation, ideal for indoor lighting automation and energy saving, with the following features:
-
Passive infrared (PIR) technology for precise motion detection
-
Detection angle 140 degrees with coverage up to 8 meters
-
Swiveling head, 180-degree horizontal rotation and 45-degree vertical rotation
-
Tripping time adjustable from 3 seconds to 30 minutes
-
Light threshold adjustable from 5 to 2000 lux
-
Wall installation with 230V AC power supply
€25.69
Items Available: 38
: 1
Vemer infrared motion detector, functionality
The Vemer SENSOR 140 sensor uses passive infrared technology to detect thermal changes generated by people moving within its field of view. When it detects a change in temperature (motion), it automatically activates the connected load (such as lights or signaling devices).
Because of its high sensitivity and accuracy, it is perfect for controlling lighting in spaces such as hallways, entrances, stairways, garages, or passageways.
Intuitive installation and adjustments
Designed for wall installation, the detector has a swiveling head to adapt the field of view to the room configuration. In addition, via built-in trimmers you can set:
-
Light-off delay (from 3 s to 30 min)
-
Ambient light sensitivity (5 to 2000 lux)
-
Coverage range width
The operation mode can be selected between normal and permanent on, for total flexibility of use.
Recommended use applications
-
Residential environments: entrances, hallways, stairways
-
Commercial environments: offices, warehouses, technical rooms
-
Common condominium spaces
-
Automatic lighting control for energy savings
Technical Specifications Vemer detector
| Series | SENSOR 140 |
|---|---|
| Detection technology | Passive infrared (PIR) |
| Power supply | 230V AC - 50/60 Hz |
| Detection angle | 140 degrees |
| Range | Up to 8 meters |
| Intervention light threshold | 5 / 2000 lux |
| Adjustable tripping time | 3 seconds / 30 minutes |
| Number of relays | 1 |
| Mounting type | Wall-mounted |

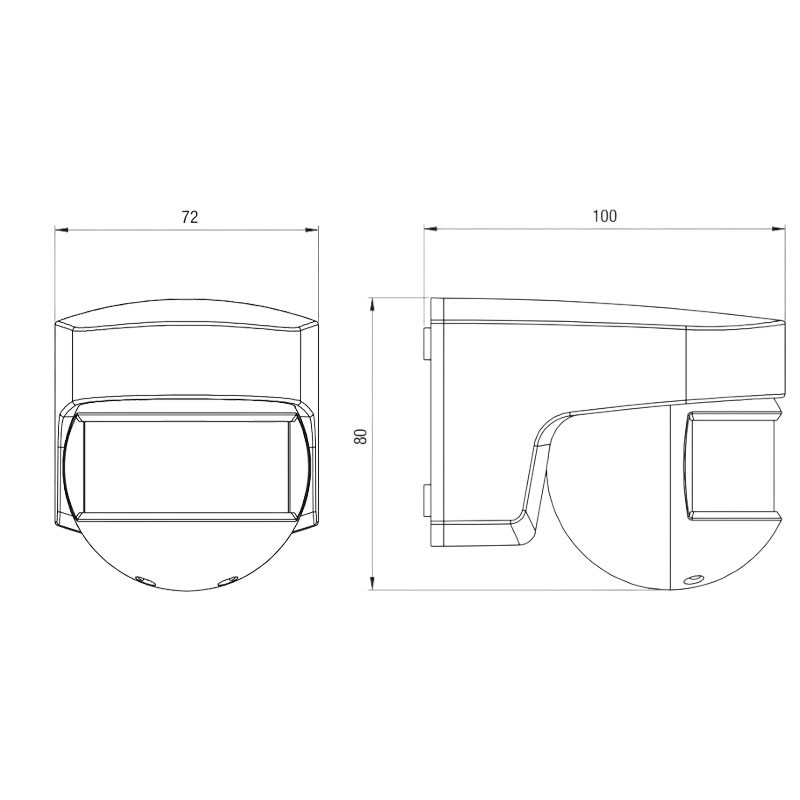

| Dimensions | 72 x 80 x 100 mm |
| Adjustments | Sensitivity, time, lux |
| Color | White |
There are no reviews
Data sheet
- Type: Sensors detectors
- Installation: Wall-mounted
