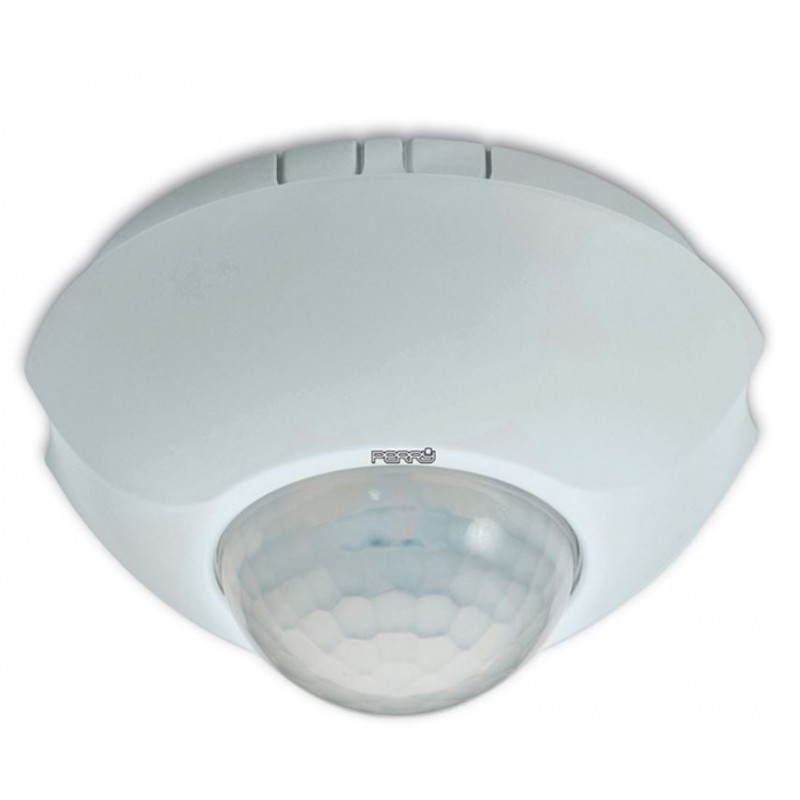

Perry Infrared Ceiling Mount Motion Detector 1SPSP015
PER 1SPSP015
8019108260249
Perry motion/presence detector, with the following features:
- 230V 50Hz power supply
- Infrared
- Ceiling installation
- Dimensions (DxD) Ø 130 x 70 mm
- Degree of protection: IP20
€48.03
Items Available: 83
: 50
The ceiling-mounted ‘MICRO MOVIMENTI’ detector is a fully automatic indoor lighting control device. During the night, the passive infrared motion detector switches on the connected lighting system when it detects movement in its range. The device has the ability to detect slight movements within a radius of 3 metres, e.g. those taking place while on the phone, so that the connected lights are continuously switched on. During the day, the built-in twilight sensor allows you to save electricity by switching off the lights. Acting on the twilight regulator determines the brightness level at which the lighting system is to be switched on. An adjustable timer allows you to choose how long the light should remain on after activation. The detector is equipped with an LED that signals to users that it is working properly. An important feature of the PIR detector is the intelligent driving of the ‘zero crossing’ relay, which optimises the switching of the load by increasing the life of the relay.
INSTALLATION:
- On ceiling the recommended mounting height is 2.5 metres
- Press on the two curved sides to remove the decorative cover
- For any installation with trunking, the two hole arrangements must be broken up to allow the unobstructed passage of lamp and power supply cables
- Use the base as a template to mark the position of the two holes to be drilled in the ceiling for the fixing screws
Features:
- Perry series
- 360° angle of detection
- Max. sensing distance 12 metres
- Twilight threshold adjustment 5 - 300 Lux
- Adjustment of switch-off delay 2 - 15 min
- Insulation class II
- Intelligent ‘ZERO CROSSING’ relay drive
Maximum power that can be driven:
- 2000W incandescent lamps
- Fluorescent lamps not rephased 480W
- Fluorescent lamps rephased in parallel 250W
- CFL/LED lamps (230V) 7W ÷ 23W max 8 lamps
There are no reviews
Data sheet
- Type: Sensors detectors
- Installation: Ceiling
