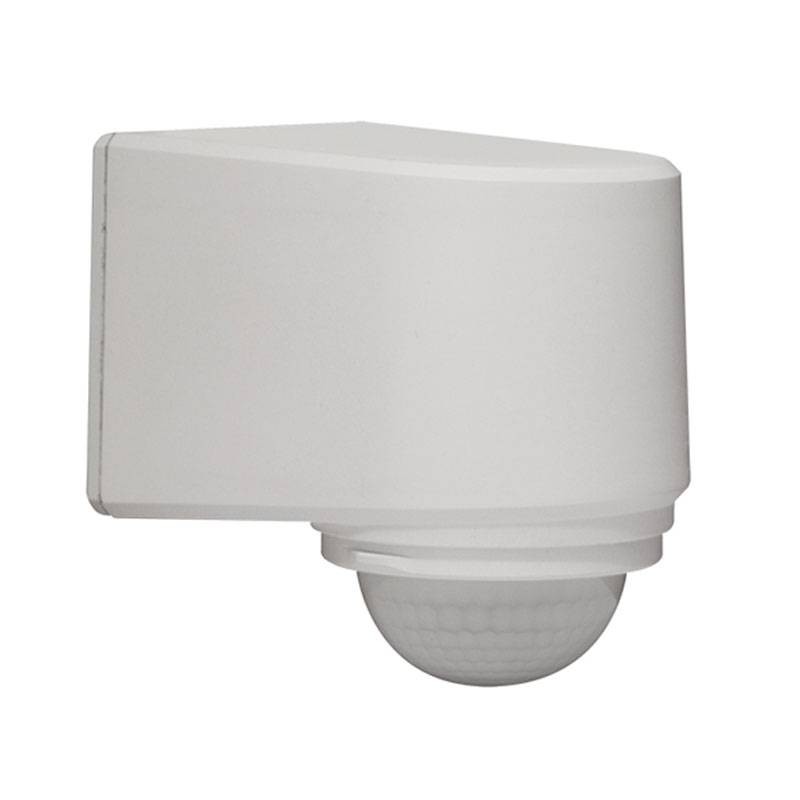

Perry Zero IP55 white wall-mounted motion detector 1SPSP055B
PER 1SPSP055B
8019108005468
Outdoor motion sensor with IP55 protection, light adjustment and activation time, ideal for residential and industrial applications.
-
Power supply: 230V ac ±10% 50Hz
-
IP55 protection rating: perfect for outdoor installations
-
Detection angle: up to 220 degrees
-
Detection range: up to 12 meters
-
Timing adjustment: from 35 seconds to 20 minutes
-
Brightness adjustment: from 5 to 1000 lux
-
Compatibility: with LED, fluorescent and incandescent lamps.
€25.69
Items Available: 35
: 4
Perry Zero series: Intelligent outdoor motion sensor
The Perry Zero 1SPSP055B detector is designed for reliability, efficiency and durability. Equipped with IP55 rating, it is perfectly suited for use in outdoor or wet environments, such as entrances, driveways, garages, warehouses, facades and courtyards.
The detection angle of up to 220 degrees and maximum range of 12 meters ensure optimal coverage for detecting wide and fast movements. The user can fine-tune the power-on duration and brightness threshold as needed for automatic activation only in low-light conditions or during specific time slots.
Recommended applications
-
Residential entrances and doorways
-
Transit areas or driveways
-
Garages and utility rooms
-
Outdoor environments of residential or industrial buildings
Technical Specifications Motion Sensor
| Feature | Value |
|---|---|
| Power supply | 230V ac ± 10% 50 Hz |
| Incandescent lamps | 1800 W |
| Fluorescent lamps not rephased | 480 W |
| Fluorescent lamps rephased in parallel | 250 W |
| CFL/LED Lamps (230V) | 7W ÷ 23W, max 5 lamps |
| Degree of protection | IP55 |
| Cable cross-section at terminals | 0.75 ÷ 2.5 mm² |
| Pollution degree | Normal |
| Detection angle | Up to 220° |
| Sensing distance | Max 12 m |
| Timing adjustment | From about 35" to about 20' |
| Brightness adjustment | From 5 to 1000 LUX |
| Warm-up time | About 40" |
| Operating temperature | From -20°C to +40°C |
| Storage temperature | From -25°C to +70°C |
| Dimensions (W × D × H) | 72.6 × 91.6 × 93.5 mm |
There are no reviews
Data sheet
- Type: Sensors detectors
- Installation: Wall-mounted
