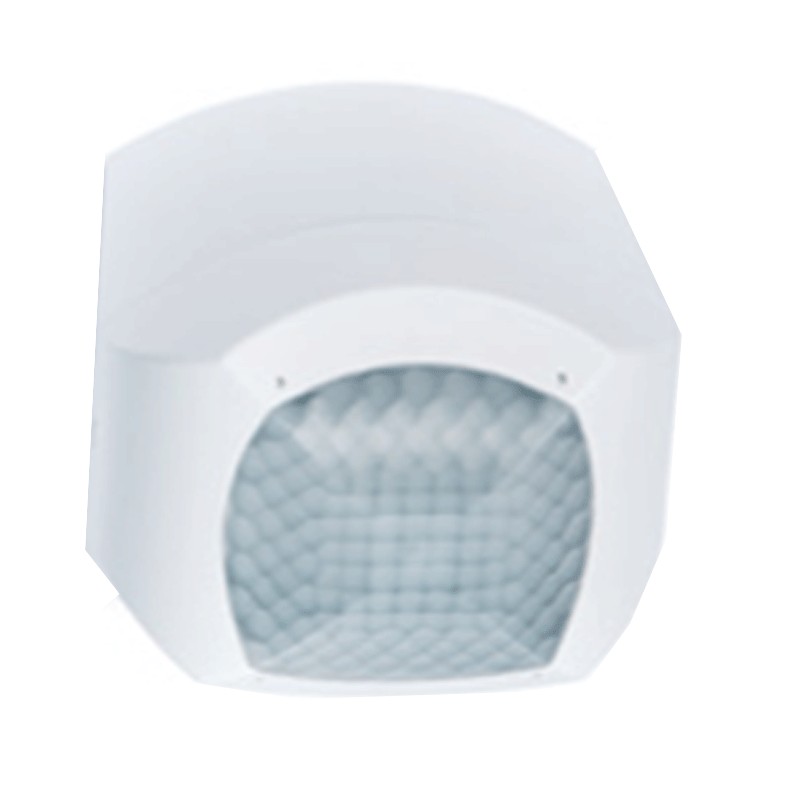

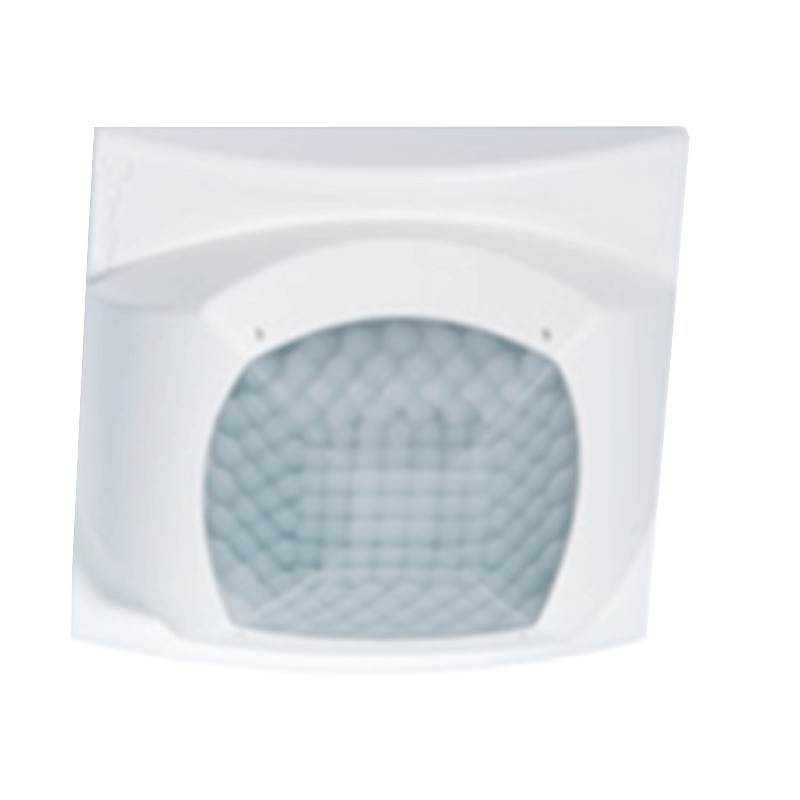

Finder presence detector 2 sensitivity ranges 18.51.8.230

Finder
Finder
FIN 185182300300 8012823376745

Presence detector Finder Type 18.51, with the following features:

  • Rated supply voltage 110/230V AC (50/60 Hz)
  • Nominal voltage/ Max. switching voltage 250/400V AC
  • 1 NO A contact (potential-free contact)
  • Rated power VA (50 Hz)/W 1.5/1
  • Nominal current/ Max. instantaneous current 10/20 (100 A - 5 ms)
  • Nominal load in AC1:2500 VA
  • Nominal load on AC15 (230 V AC): 450 VA
Offer expires in
Do you have questions about this product or did you not find what you were looking for? Ask us!
Finder presence detector 2 sensitivity ranges 18.51.8.230
€75.01
€72.76
€72.76

Lowest price in 30 days:
€75.01
Save 3%
€72.76
Tax included
Calculate shipping cost
Offer expires in
Items Available: 88
Further availability of the manufacturer
€72.76

Buy it within and receive it from Tuesday, 17 March
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Features:

  • Finder Series
  • Operating range V AC (50/60 Hz) UN 96/253
  • With Push-In terminals
  • Indoor installation
  • Electrical service life at rated load AC1 100 - 10 cycles
  • Adjustment of twilight switching threshold 1...500 lx
  • Adjustment of switch-off delay time 12 s - 35 min
  • Contact material: standard AgSnO2
  • Ambient temperature: -10...+50°C
  • With 2 sensitivity ranges
  • Protection class IP40

Lamp capacity

  • incandescent/halogen 1000W
  • fluorescent with electronic ballast 500W
  • fluorescent with phase-shifted electromagnetic ballast 350W
  • CFL 300W
  • LED 230V 300W
  • halogen or BT LED with electronic transformer 300W
  • halogen or BT LED with electromagnetic transformer 500W

Advantages:

  • Standard version
  • Applications: hotel corridors, offices, areas of low occupant activity
  • 1 NO 10 A (Potential free contact)
  • Reading area 360°.

There are no reviews

Data sheet

Type:
Sensors detectors
Installation:
Ceiling
