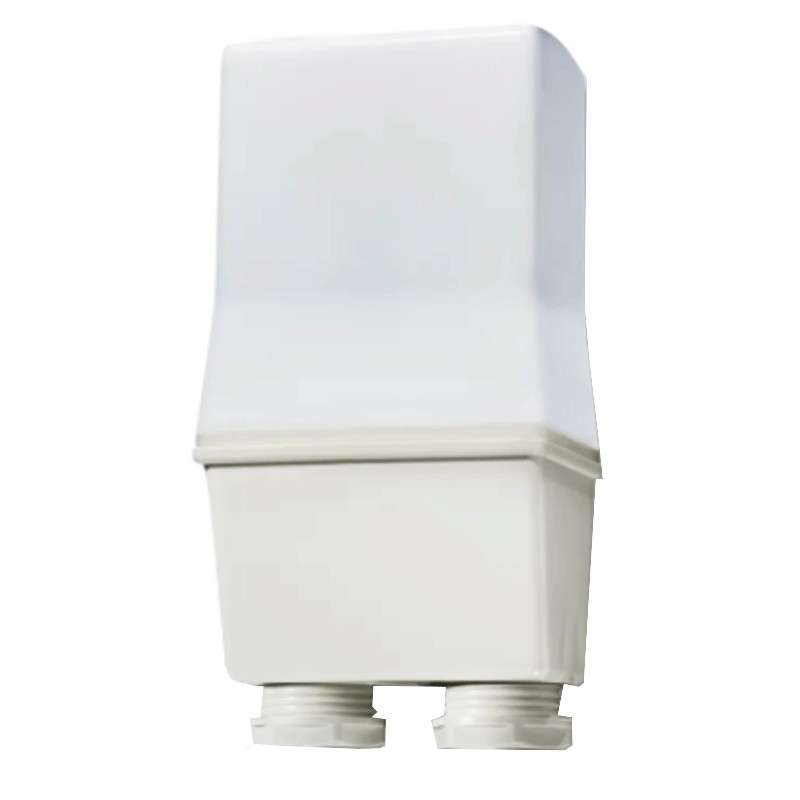

Finder pole-mounted twilight relay 2NO 16A 230V 10.32.8.230
FIN 103282300000
8012823236698
Finder pole-mounted twilight relay with the following features:
- Rated supply voltage 120/230 AC (50/60 Hz)
- Double output - 2 NO 16A
- Nominal power AC/DC 2 VA (50 Hz)/W
- Rated/Max instantaneous current 16/30 (120 A - 5 ms)
- Nominal load on AC1:1900/3700 VA
- Rated load in AC15:400/750 VA
- Rated current in AC5a: 5A
€56.79
Items Available: 18
: 3
Relay for switching on the lamps according to the room brightness level.
Pole and wall mounting.
Features:
- Finder Series
- Bipolar interruption (L+N)
- Minimum switching load 1000 (10/10) mW (V/mA)
- Standard contact material AgSnO2
- Operating range (0.8...1.1)UN in AC (50 Hz)
- Electrical life at rated load in AC1 100 - 10 cycles
- Switching threshold adjustment 1...80 lx
- Preset switching threshold 10 lx
- Switching time: on/off 15/30 s
- Ambient temperature: -30...+70°C
- Degree of protection IP54
Lamp capacity:
- incandescent/halogen 230V 2300W
- fluorescent with electronic ballast 600/1200W
- fluorescent with rephased electromagnetic ballast 450/850W
- CFL 250/500W
- LED 230V 500W
- halogen or BT LED with 250/500W electronic transformer
- halogen or BT LED with electromagnetic transformer 500/1000W
Advantages:
- Bipolar load interruption (phase + neutral)
- Sensitivity adjustment from 1 to 80 lux
- Cadmium-free contacts
- Cadmium-free photosensor element (IC photo diode)
- Circuit with isolation transformer
- Italian patent - Innovative principle of compensation for the influence of the controlled lights, also compatible with slow-start lamps (up to 10 minutes)
- First 3 operating cycles of the relay without switch-on and switch-off delay, in order to facilitate adjustment operations by the installer
There are no reviews
Data sheet
- Type: Twilight switches
- Installation: Pole
