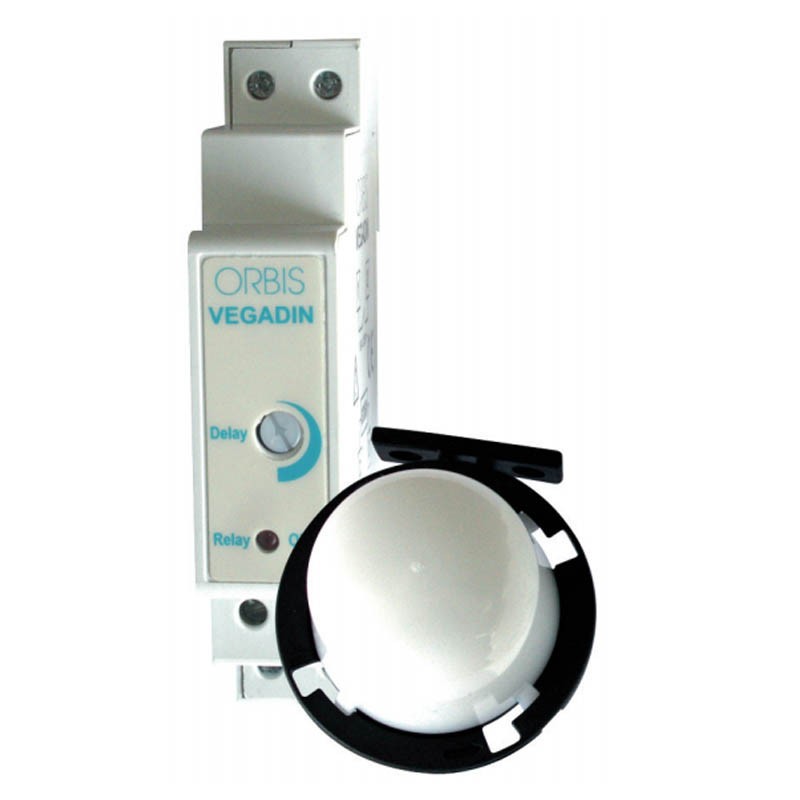

Crepuscular switch Orbis VEGADIN modular probe included OB131612
ORB OB131612
8426709104818
Modular Crepuscular Switch Orbis VEGADIN, with the following features:
- Power supply: 230 V
- Nominal frequency: 50-60 Hz
- Contact rating: 16 A / 250 V AC (resistive load)
- 1 DIN module
- Article with probe included
€38.58
Items Available: 16
: 4
Modular twilight switch with remote positionable external probe. The small size of the external probe makes installation more discreet outside the building. The output circuit is activated when the brightness falls below the set threshold and remains active for as long as the brightness remains below this threshold.
Features:
- Orbis Series
- Type of contact: NORMALLY OPEN potential free
- Operating temperature: From 0 °C to +50 °C
- Temperature of use of the probe: -20 °C +50 °C
- Sensitivity: 10-100 lux
- Probe protection type: IP65
- Probe Installation: Wall or Pole
- Max. distance probe-appliance: 50 m
- Self-consumption: 6 VA (1 W)
Maximum loads:
- Incandescence: 2000 W
- Fluorescence: 400 W
There are no reviews
Data sheet
- Type: Twilight switches
- Installation: Din
