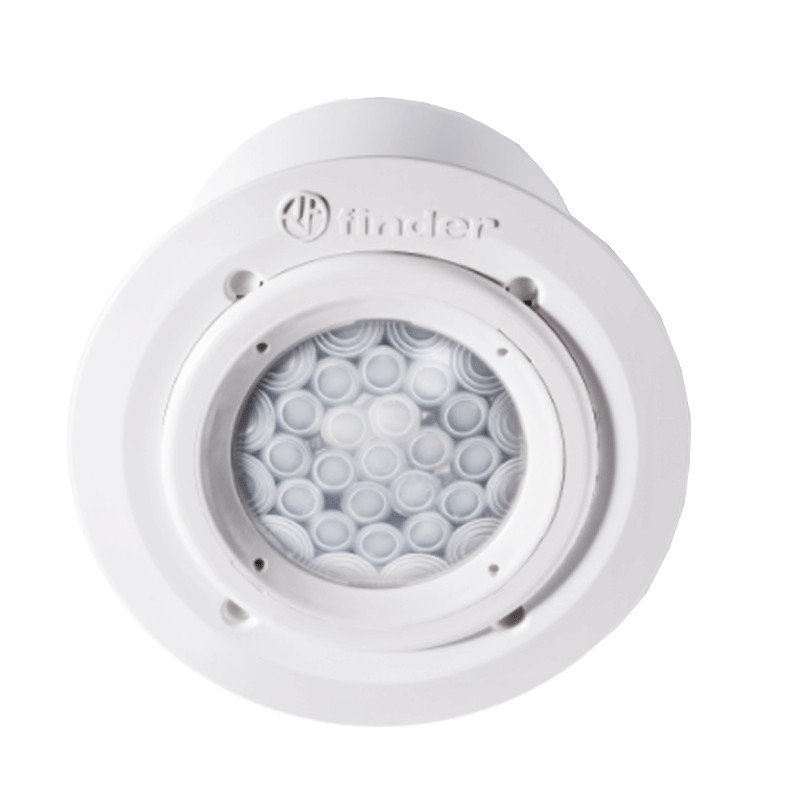

Finder flush-mounted presence detector 18318230
FIN 183182300000
8012823329314
Standard flush-mounted Finder motion detector with the following features:
- Supply voltage V AC/DC (50/60 Hz) 120...230
- Rated power AC/DC VA (50 Hz)/W 2/1
- Operating range V AC (50/60 Hz) 96...253
- Current rating/Max. instantaneous current 10/20 (100 A - 5 ms)
- Nominal voltage/Max. switching voltage V AC 230/230
- Nominal load in AC1 VA 2300
- Nominal load in AC15 (230 V) VA 450
€70.80
Items Available: 182
: 40
Features:
- Finder Series
- Contacts 1 NO 10A
- Ideal for indoor installation
- Flush or false ceiling mounting
- Electrical life at rated load AC1 100 - 10 cycles
- Adjustment of twilight switching threshold 5...350 lx
- Adjustment of switch-off delay time 10 s...12 min
- Ambient temperature -10...+50°C
- Degree of protection IP40
Lamp capacity:
- incandescent/halogen 1000W
- fluorescent with electronic ballast 500W
- fluorescent with power factor correction electromagnetic ballast 350W
- CFL 300W
- LED 230 V 300W
- halogen or BT LED with electronic transformer 300W
- 300W halogen or BT LED with electromagnetic transformer
- Standard contact material AgSnO2
Advantages:
- Output contact at mains potential
- Reduced dimensions
- Equipped with twilight sensor and delay time
- Large detection angle
- Available in version 18.31-0031 with high ceiling application (up to 6 metres) and ceiling and false ceiling mounting
- Switch-off delay time (30 s...35 min)
Data sheet
- Type: Sensors detectors
- Installation: Recessed
