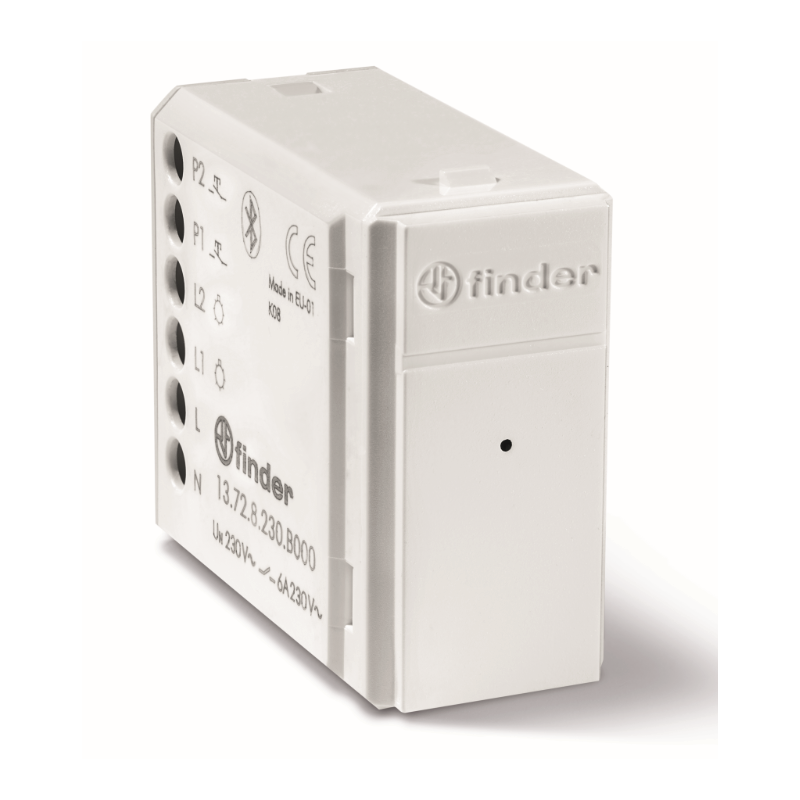

Finder Yesly Bluetooth 2 Channel BLE Multifunction Relay 13728230B000
FIN 13728230B000
8012823421803
Finder Yesly electronic multifunction relay, with the following features:
- Rated/Max switching voltage 230V AC
- Contact configuration 2 NO
- Rated load in AC1 VA 1380
- Rated load in AC15 (230 V AC) VA 300
- Single-phase motor capacity (230 V AC) W 200
- Nominal current/Max instantaneous current 6/40A
- Suitable for controlling lights, rolling shutters and electric blinds
- Bluetooth Low Energy (BLE) transmission protocol
- 128-bit encrypted connection
- Programmable via Finder TOOLBOX App compatible with iOS and Android operating systems
- Can be connected to wired or wireless buttons BEYON and 013B9 types
€66.20
Items Available: 17
: 2
Frequently bought together
Features:
- Finder Series
- Rated supply voltage (UN) 110...230V AC/DC (50/60 Hz)
- Rated power AC/DC V A (50 Hz)/W 2 / 0.5
- Operating range AC/DC (50 Hz) (0.8...1.1)UN
- Electrical service life at rated load in AC1 cycles 60 - 10
- Max. switching pulse duration Continuous
- Dielectric strength between open contacts 1000V AC
- Ambient temperature °C: -10...+50
- Protection class IP20
- 21 selectable functions,
- 2 outputs with NO contacts 6 A - 230 V AC
- Lamp load: 200 W 230 VAC
- 2 wired button inputs (one per channel)
- Up to 5 light buttons can be connected
- Management of up to 8 scenarios
- Programmable with Smartphone Android or iOS
Lamp capacity 230V:
- incandescent/halogen W 200
- fluorescent with electronic ballast W 200
- fluorescent lamps with electromagnetic ballast W 200
- compact fluorescent lamps CFL W 200
- LED 230 V W 200
- halogen or low voltage LED with electronic transformer W 200
- halogen or BT LED with electromagnetic transformer W 200
Compatible with the following civil series:
- Ave S44
- Bticino Living LivingLight
- LivingLight Tech
- LivingLight Air
- Bticino Axolute
- Bticino Matix
- Gewiss System
- Simon Urmet Nea
- Vimar Plana
- Vimar Eikon-Arké
- Vimar Idea
There are no reviews
Data sheet
- Type: Multifunction Relays
