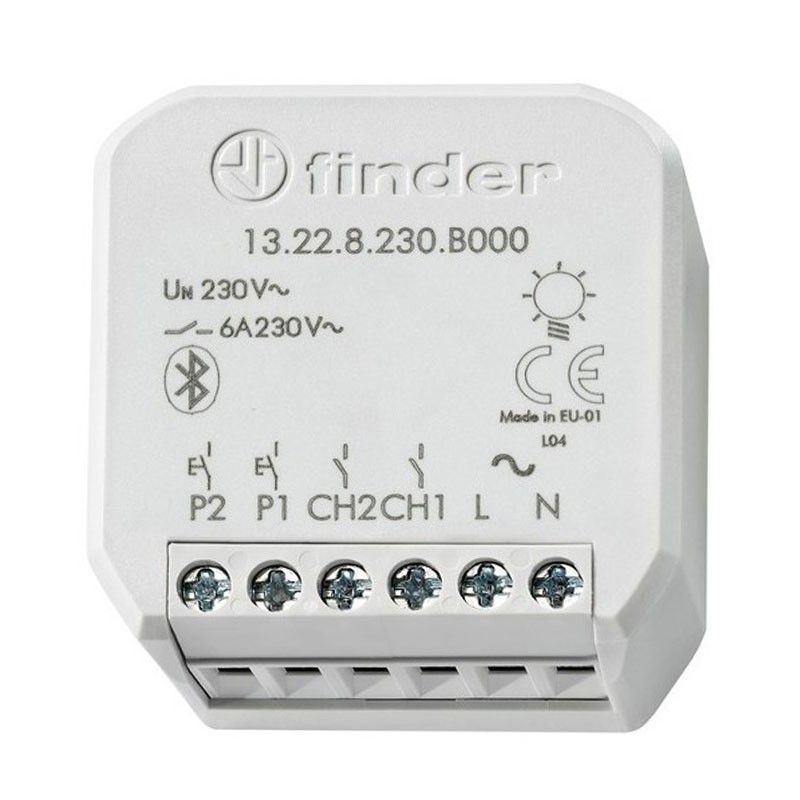

Bluetooth Finder YESLY 2-channel multifunction relay 13228230B000
FIN 13228230B000
8012823426600
Bluetooth Finder YESLY 2-channel multifunction relay (YESLY switch actuator) for flush-mounting installation:
- Supply voltage: 230 V AC (50 / 60 Hz)
- Lamp load: 200 W / 230 V AC
- 2 programmable channels
- 20 selectable functions
- 2 inputs for wired buttons
- 2 NO contacts for 6 A / 250 V AC
- Contact material: AgSnO2
- Transmission distance approx. 10 metres in free space (without obstacles)
€69.51
Items Available: 25
: 10
WITH THE FINDER TOOLBOX APPLICATION With the Finder Toolbox App you can:
- Set the functions, sequences and timings (T1, T2) on channels Ch1 - Ch2
- Associate the wireless buttons
- Set the scenarios NOTES
- Transmission range: about 10 m in free field and without obstacles.
The transmission range may vary depending on the structure of the building (Examples):
- Reinforced concrete and/or metal walls
- Lightweight walls filled with insulating wool on metal sheets
- False ceilings with metal or carbon fibre panels
- Glass or lead glass with metal cladding, steel furniture
Features:
- For single channel Ch1 and Ch2 channels are independent and can be set with different functions.
- Timings (T1, T2): from 1s to 24h. RI: factory preset function on both channels FUNCTIONS for both channels
- Each function uses both channels Ch1 and Ch2 NOTE From function 02 to 08: P1 (SET): brings the sequence to the next status P2 (RESET): brings the sequence to the initial status
nessun commento........................................................
Prodotto ottimo, servizio molto buono. Nel complesso consigliabile
Data sheet
- Type: Multifunction Relays
