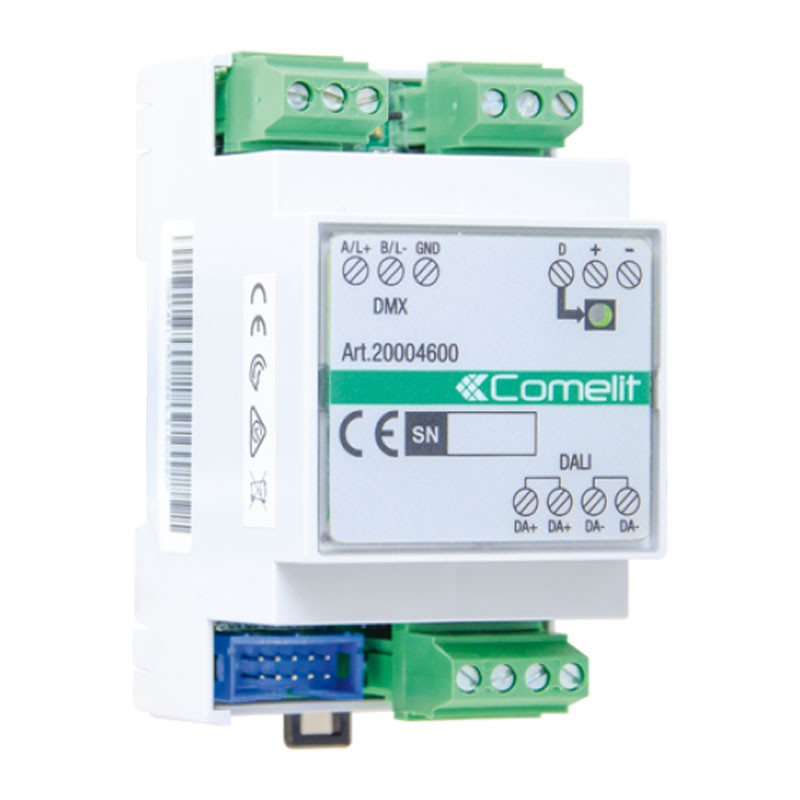

Comelit SIMPLEHOME interface for protocols DALI and DMX 3M 20004600
COE 20004600
8023903227499
Interface for integration of Comelit SimpleHome home automation system with DALI and DMX protocols. Enables advanced management of single or RGB lights via pushbuttons, supervisors and app, with the following features:
-
Compatible with DALI and DMX systems
-
Control of up to 64 individual lamps or 16 RGB lamps (DMX)
-
Light management via pushbuttons, supervisors and Comelit App
-
DIN rail mounting - 3 modules
-
Low power consumption max 50 mA
€316.26
Out of stock
Incoming
Comelit interface integrated with DALI and DMX
The Comelit SimpleHome interface enables communication between the Comelit home automation bus and the DALI and DMX protocols, used extensively in architectural and professional lighting control.
Once integrated into the system, the interface allows:
-
Turning lamps on and off
-
Adjustment of light intensity
-
Precise control of RGB lamps (DMX only).
It is the ideal tool for smart buildings, architectural installations and commercial environments that require flexible and professional lighting automation.
Quick installation and home automation compatibility
The module installs easily on a DIN rail (3 modules), integrating seamlessly into existing electrical panels. It is compatible with all new and existing Comelit SimpleHome systems.
Please note: The module does not allow programming or direct powering of DALI or DMX devices. These require separate systems for configuration and power supply.
Ideal applications
-
Residential home and building automation
-
Stage and theater lighting systems (DMX)
-
LED lighting control in hotels, stores and showrooms
-
Integration with physical buttons and Comelit mobile applications
Comelit Interface Technical Specifications
| Compatibility | Comelit SimpleHome |
|---|---|
| Mounting | DIN rail, 3 modules |
| Control | 64 individual lamps / 16 RGB (DMX) |
| Supported functions | On/Off, dimming, RGB |
| Power consumption | Max. 50 mA |
| Operating temperature | 5 ÷ 40 °C |
| Light management | Yes |
| DALI/DMX device programming | No |
| DALI/DMX devices power supply | No |
There are no reviews
Data sheet
- Type: Interfaces
