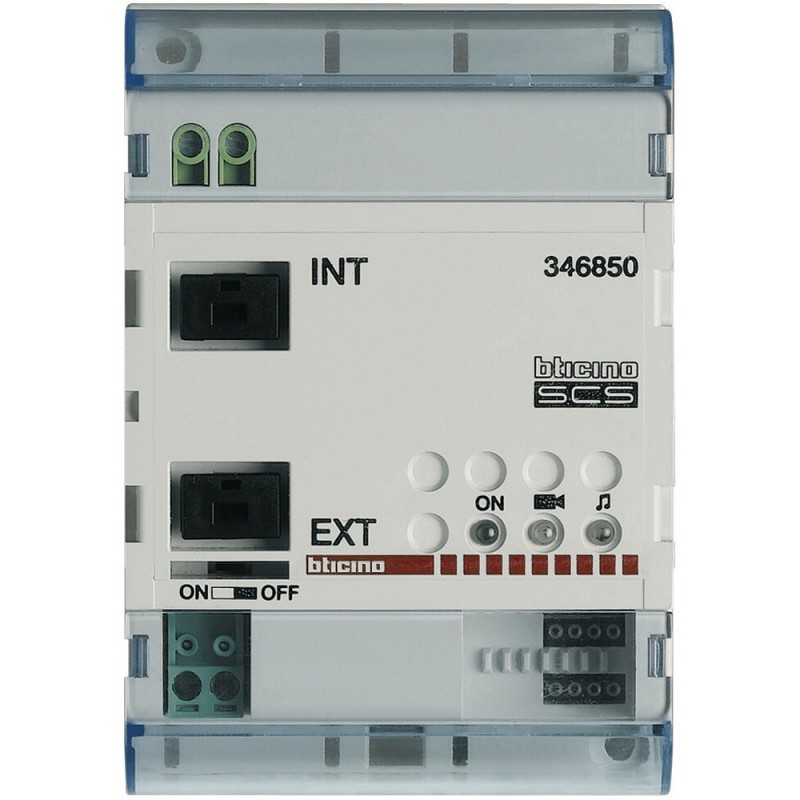

Bticino 2-Wire Apartment Interface 346850
BTI 346850
8012199775425
Bticino apartment interface in modular 4 DIN housing. It allows to interface to a 2-WIRE riser a dedicated video door phone system of apartment with local video control, sound diffusion and control of My HOME applications.
€226.92
Items Available: 9
The device must be configured through the physical insertion of the configurators.
Interface to be used for the creation (inside the apartment/house) of a dedicated 2-WIRE system isolated from the condominium riser. The system downstream from the interface (inside the apartment/household) can have dedicated door units and cameras, possibly integrated with MyHOME home automation applications.
It is possible to make intercom calls inside and outside the apartment.
Technical data:
- Power supply from BUS SCS: 18 - 27 Vdc
- Operating temperature: 5 - 40 °C
- Dissipated power: 2,25 W
- Absorption in stand by: from INT connection 15 mA from EXT connection 5 mA
- Maximum absorption in operation: from INT connection 50 mA from EXT connection 30 mA
- Overall dimensions: 4 DIN modules
Data sheet
- Type: Interfaces
