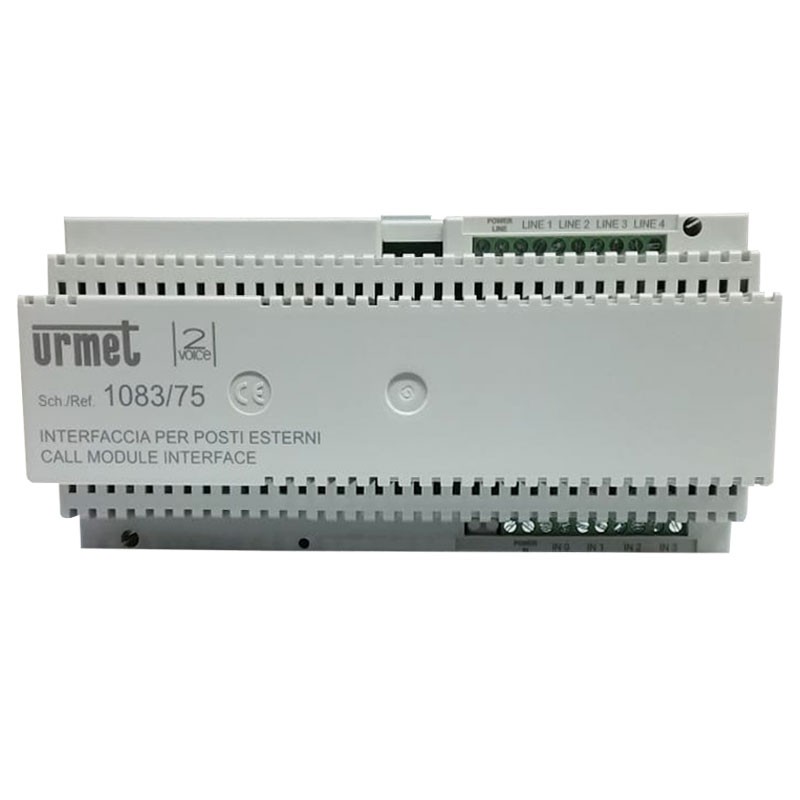

Urmet 2VOICE door station interface 1083/75
Urmet door station interface. Device used to connect multiple main buttons on 2Voice systems.
Prepared for mounting on DIN rail (10 modules).
Urmet 2VOICE door station interface 1083/75
Tax included
Frequently bought together
Technical features:
- Urmet series
- Supply voltage (POWER IN): 36 - 48 VDC
- Supply voltage (POWER LINE): 36 - 48 VDC
- Standby power consumption (POWER IN): 30 mA max
- Maximum absorption (POWER IN): 100 mA max
- Quiescent absorption (POWER LINE): 25 mA max
- Maximum current consumption (POWER LINE): 70 mA max
- Operating temperature: - 5/+45 °C
- Regulatory compliance: EN 61000-6-3, EN 61000-6-1
The door station interface Ref. 1083/75 is dedicated to the 2Voice system and is used to connect from 1 to 4 main call stations (IN0 ÷ IN3) and has 4 output lines (LINE1 ÷ LINE4) to be connected towards the columns.
The door station interface always requires 2 1083/20 power supplies, one for the call stations and one for the output lines.
For possible system configurations, refer to the information in the system booklet supplied with the power supply unit Ref. 1083/20.
INSTALLATION: The door station interface can be installed in an electrical panel on a DIN rail (occupies 10 18mm DIN modules) or on the wall using wall plugs not supplied. The terminal blocks are accessible when the switchboard is open.
Data sheet
- Type:
- Interfaces
