Haier Slim Ducted Air Conditioner BP 30 Pa 2.5kW 9000BTU R32 WIFI
KIT HAICAN09
Haier Slim BP Ducted Air Conditioner 30 Pa 2.5 kW R32 with integrated Wi-Fi, UV-C purification, silver ion filter, condensate drain pump, and energy class A++. Ultra-compact and quiet design.

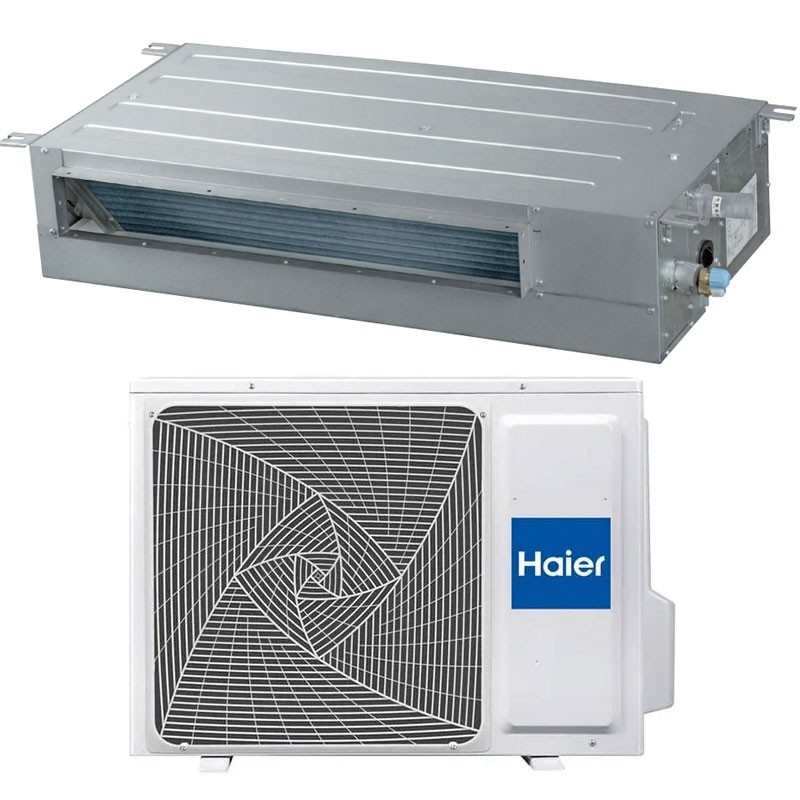

Set composed of:

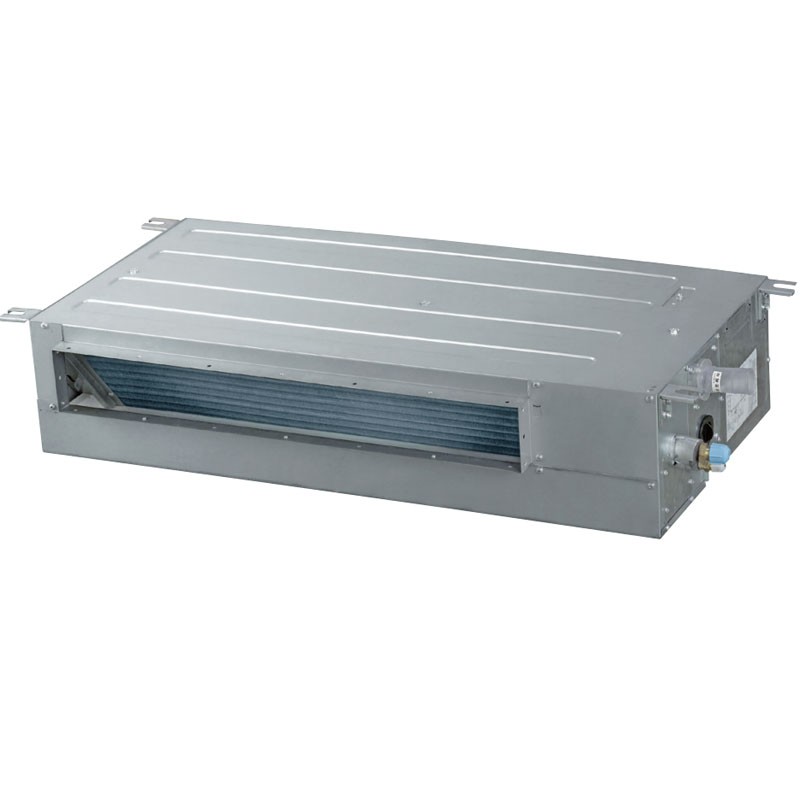

- 1 indoor unit 9000BTU (AD25S2SS1FA(H) - AA9GL2E00)

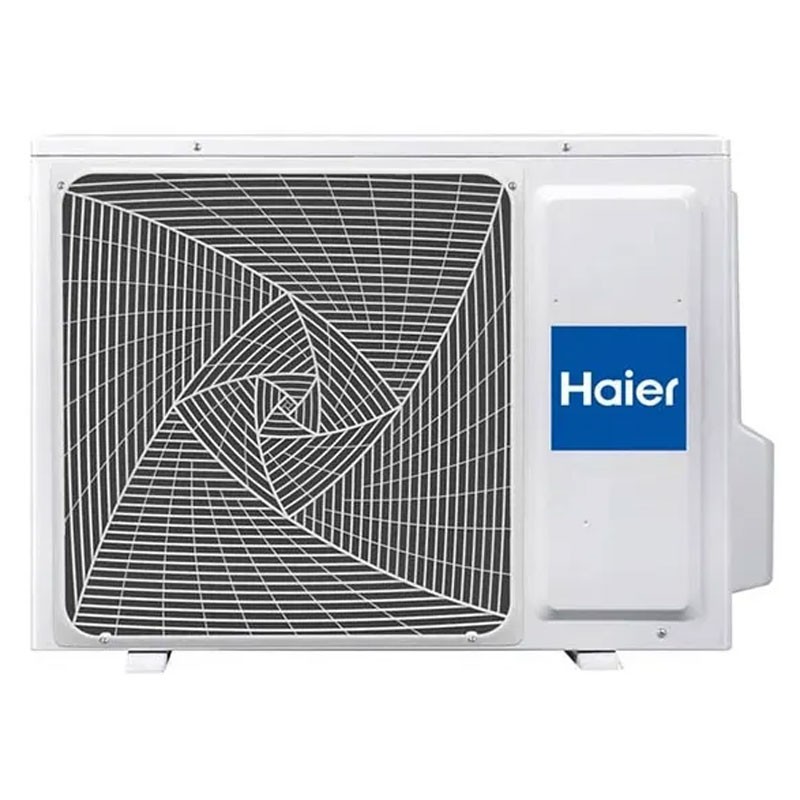

- 1 outdoor unit 9000BTU (1U25S2SM1FA-2 - AABQM0E00)
Integrated Wi-Fi control with hOn App for remote operation of the air conditioner.
For a room of approximately 27m²
The air conditioner is also an heat pump, therefore also suitable for heating environments in winter.
The air conditioner will be delivered pre-charged with gas R32
€1,137.97
Items Available: 2
: 1
Frequently bought together
Haier Slim BP 30 Pa Ducted Air Conditioner compact and versatile
The Haier Slim BP 30 Pa air conditioner is designed to ensure comfort, efficiency, and maximum installation flexibility. Thanks to its extremely compact design, it can be installed in ceilings with limited space, making it ideal for apartments, offices, shops, and small commercial spaces.
The static pressure of 30 Pa ensures even air distribution, even through small-sized ducts.
UV-C Purification for Healthier Air
The integrated purification system with UV-C lamp sterilizes the air passing through the unit, reducing viruses, bacteria, and microorganisms. This process takes place entirely within the air conditioner, ensuring safety and improving air quality in enclosed spaces.
Combined with the silver ion filter, the system ensures a high level of hygiene and protection, ideal for homes, small offices, and environments frequented by children or sensitive individuals.
Total Remote Control via Integrated Wi-Fi
The air conditioner is already equipped with Wi-Fi connectivity and can be managed via the hOn app from a smartphone or tablet.
With the app, you can:
- turn the unit on/off
- schedule times and modes
- monitor consumption and settings
- adjust temperature and airflow
- activate smart functions and scenarios
Simple, fast, and intuitive control wherever you are.
Quiet Operation and Reduced Consumption
Thanks to Inverter technology and the highly optimized structure, the unit guarantees low noise levels, making it suitable even at night or in environments where absolute tranquility is required.
The A++ energy class ensures reduced consumption, contributing to significant savings on the bill compared to traditional air conditioners.
Integrated Condensate Drain Pump
The built-in pump facilitates condensate disposal even in complex installations or where natural drainage is not possible.
Accessory Compatibility (optional not included)
The air conditioner is compatible with the following optional controls to be purchased separately:
- Infrared remote control YR-HQS01
- Wired control HW-SA201ABK
- Panel P1B-890IA/D – code AA9CR2E5U
This versatility allows the system to be adapted to any installation requirement.
| COOLING | |
|---|---|
| Output power (nom · min ~ max) | 2.5 kW (0.7 ~ 4.3) |
| Power consumption (nom · min ~ max) | 0.89 kW (0.25 ~ 1.6) |
| Energy class EER | 2.8 W/W |
| Pdesign COOL. (35°C) | 2.5 kW |
| Energy class SEER | 6.1 (A++) |
| Annual energy consumption (cooling) | 210 kWh/a |
| HEATING | |
| Output power (nom · min ~ max) | 3.23 kW (0.9 ~ 4.6) |
| Power consumption (nom · min ~ max) | 0.87 kW (0.25 ~ 1.6) |
| Energy class COP | 3.71 W/W |
| Pdesign HEAT. (-10°C) | 2.8 kW |
| Energy class SCOP | 4.0 (A+) |
| Annual energy consumption (heating) | 1398 kWh/a |
| INDOOR UNIT | |
|---|---|
| Power supply | 1 / 220~240 V / 50–60 Hz |
| Air volume treated (H / M / L) | 580 / 480 / 380 m³/h |
| Static pressure | 0 / 10 / 20 / 40 Pa |
| Sound power COOL. (H) | 50 dB(A) |
| Sound power HEAT. (H) | 50 dB(A) |
| Sound pressure COOL. (H / M / L) | 32 / 28 / 26 dB(A) |
| Sound pressure HEAT. (H / M / L) | 32 / 28 / 26 dB(A) |

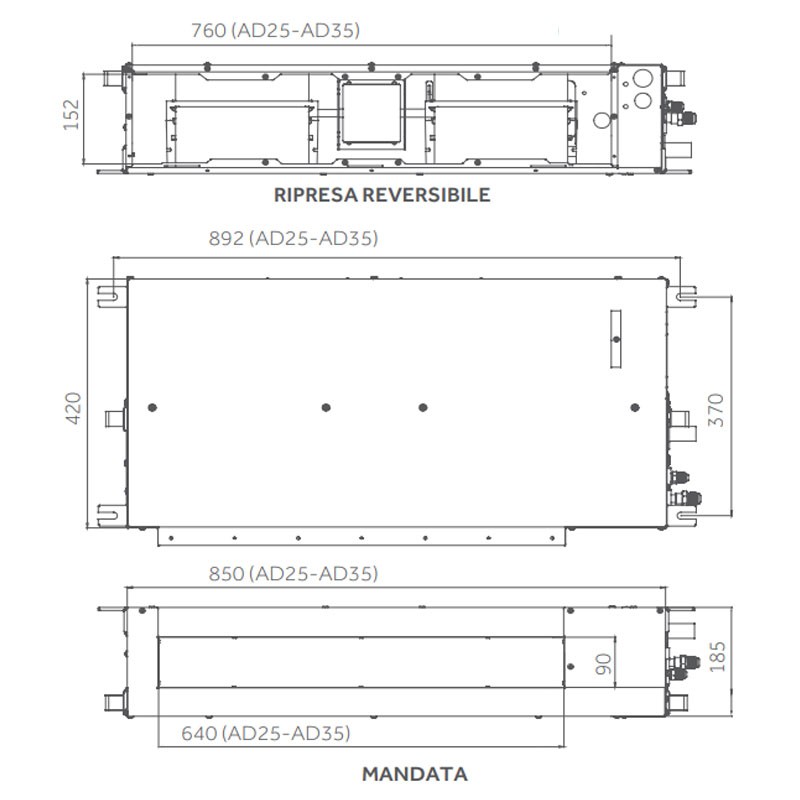

| Net dimensions (W × D × H) | 850 × 420 × 185 mm |
| Net weight | 16 kg |
| OUTDOOR UNIT | |
| Power supply | 1 / 220~240 V / 50 Hz |
| Sound power (H) | 59 dB(A) |
| Sound pressure (H) | 47 dB(A) |
| Max absorbed current | 7.2 A |

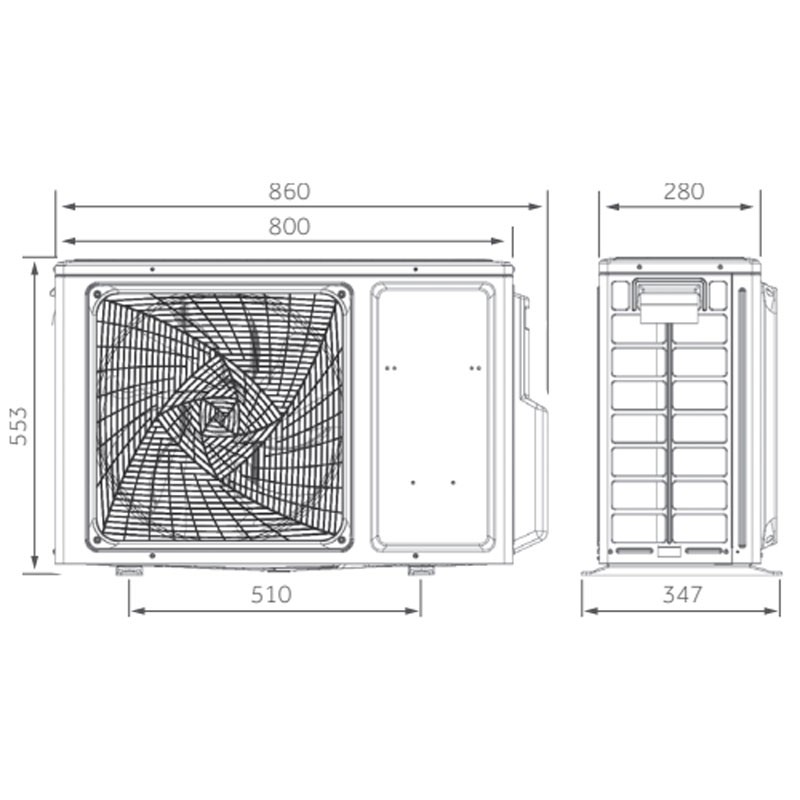

| Net dimensions (W × D × H) | 800 × 280 × 553 mm |
| Net weight | 27.6 kg |
| Compressor type | Inverter single rotary |
| Compressor brand | Highly |
| Refrigerant | R32 |
| Liquid piping | Ø 6.35 mm (1/4") |
| Gas piping | Ø 9.52 mm (3/8") |
| Standard piping length (without additional refrigerant charge) | 5 m |
| Max piping length | 15 m |
| Max height difference IU–OU | 10 m |
| Factory refrigerant charge | 0.63 kg |
| CO₂ equivalent tonnes | 0.42 tCO₂eq |
| Additional refrigerant charge beyond standard length | 20 g/m |
| Cooling operation limits | 21÷35°C (indoor) / -20÷43°C (outdoor) |
| Heating operation limits | 10÷27°C (indoor) / -20÷24°C (outdoor) |
There are no reviews
Data sheet
- Air conditioners: Ducted
- Gas: R32
- Power: 9000 BTU (2,5 Kw)
- WIFI: Integrated
- Room Size: 25m²
- Energy class: A++
- Series: Slim Bp
