Panel Haier P1B-890IA/D for Slim ducted 9000/12000btu
HAI AA9CR2E5U
6936294589935
Panel Haier P1B-890IA/D for Slim ducted 9000/12000 BTU BP 30 Pa series.
Complete kit with motorized 3D supply grille, return grille with filter, and display with integrated receiver.
-
Original Haier panel for Slim BP 30 Pa ducted units
-
Compatible with models AD25 / AD35 (9000–12000 BTU)
-
Supply grille with motorized 3D louvers
-
Uniform vertical and horizontal air distribution
-
Integrated display with receiver
-
Air return grille with integrated filter
-
Modern and elegant design
-
Simple and professional installation
-
Ideal for residential and commercial environments
€226.11
Items Available: 4
: 2
Frequently bought together

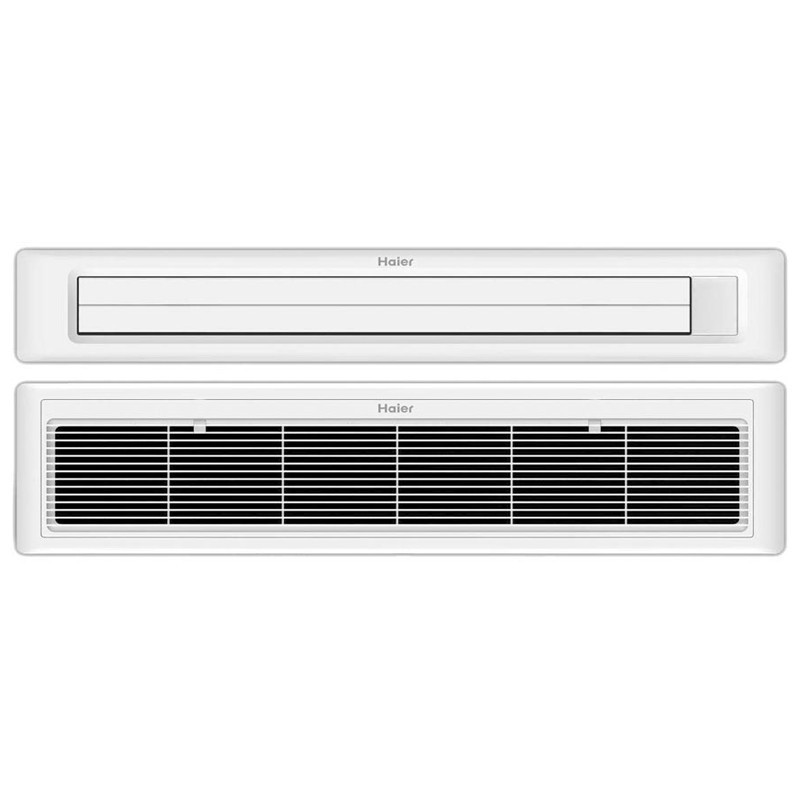

Dedicated front panel for Haier Slim ducted
The Haier P1B-890IA/D panel is specifically designed for the Slim low-pressure ducted indoor units of the BP 30 Pa series, ensuring perfect aesthetic and functional compatibility with the AD25 and AD35 models.
This accessory allows for the completion of the ducted unit installation, ensuring optimal air distribution and immediate visual control of the main functions.
Note: the panel is an optional accessory and is supplied separately from the indoor unit.
3D air distribution with motorized louvers
The air supply grille is equipped with motorized vertical and horizontal louvers, allowing a 3D effect for more uniform air diffusion in the environment.
This system improves:
- thermal comfort
- homogeneous air distribution
- reduction of direct drafts
- overall system efficiency
It is particularly suitable for living rooms, offices, bedrooms, and commercial spaces.
Return grille with integrated filter
The kit includes an air return grille complete with a filter, which helps keep the air drawn by the unit clean and protects the internal exchanger from dust and impurities.
The filter is easily accessible for routine maintenance operations.
Display with integrated receiver
The integrated display allows direct interaction with the system, showing operating information and enabling the reception of commands via a compatible remote control. This solution enhances the system's ergonomics and daily user experience.

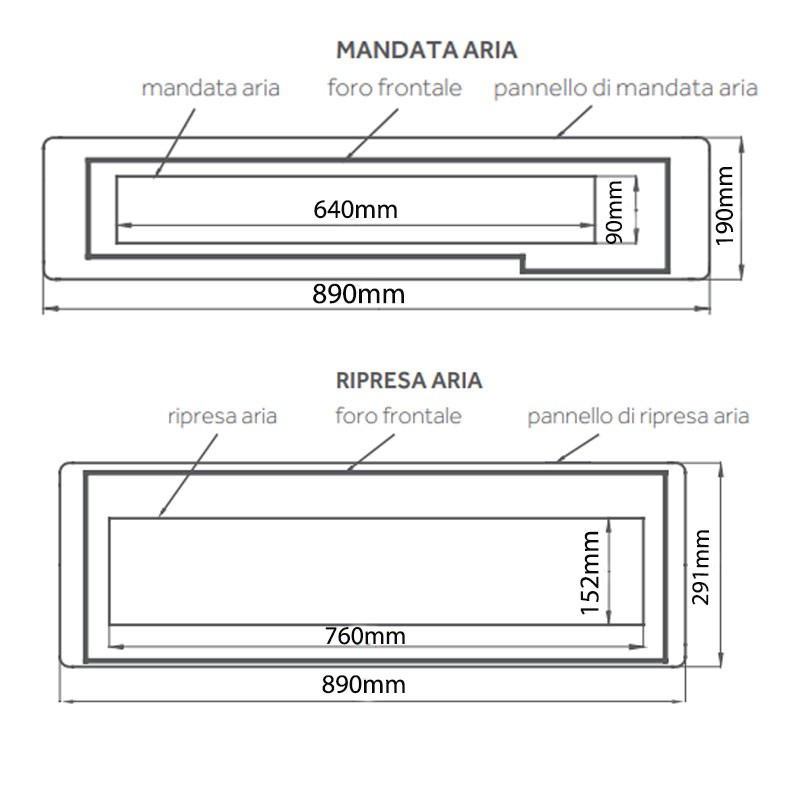

Compact dimensions and elegant design
- Supply grille (L × D × H): 890 × 100 × 190 mm
- Return grille (L × D × H): 890 × 33.5 × 291 mm
The linear and modern design integrates perfectly into residential and professional environments, enhancing the installation of the ducted system.
There are no reviews
Data sheet
- Air conditioners: Ducted
