Haier Revive Trial Split Air Conditioner 2.5kW+2.5kW+3.5kW WIFI R32
KIT HAIREV992
6936294519611

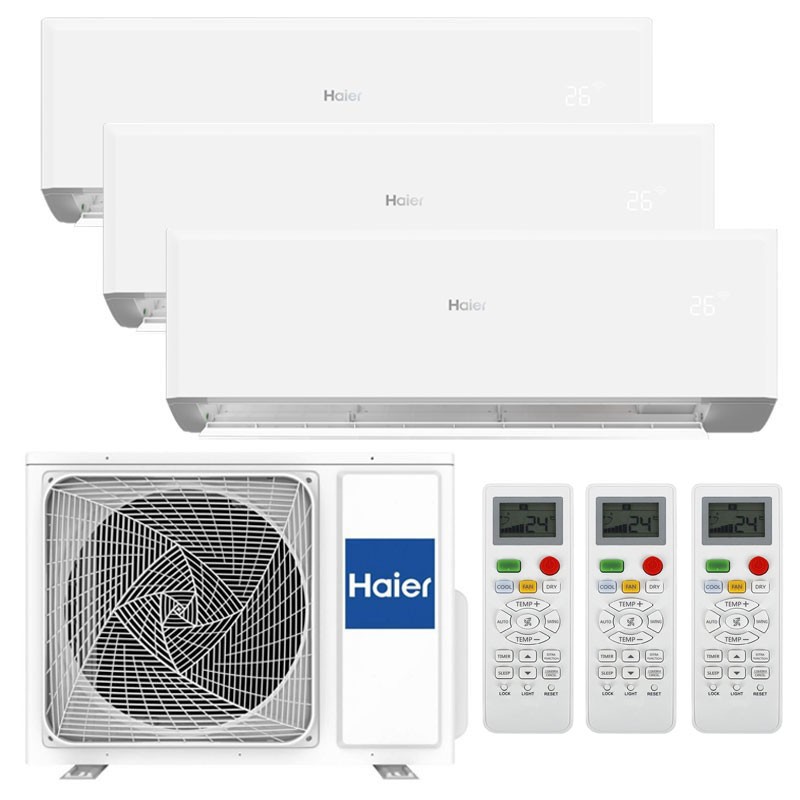

Trial Split Haier Revive 9000+9000+12000 / 2,5kW+2,5kW+3,5kW WIFI air conditioner, with GAS R32 included, Energy Class A++/A+, price includes:

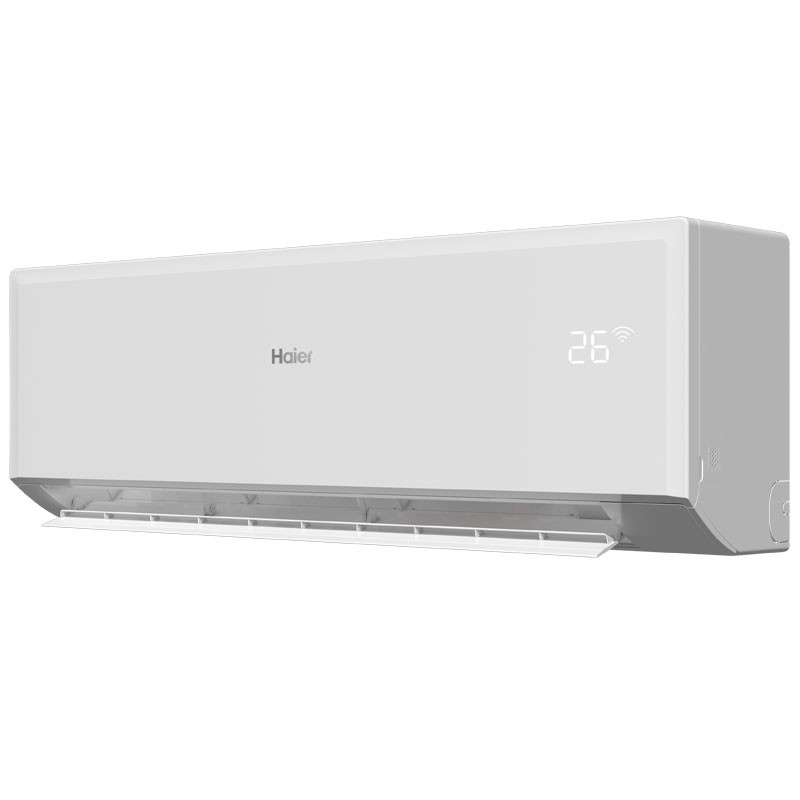

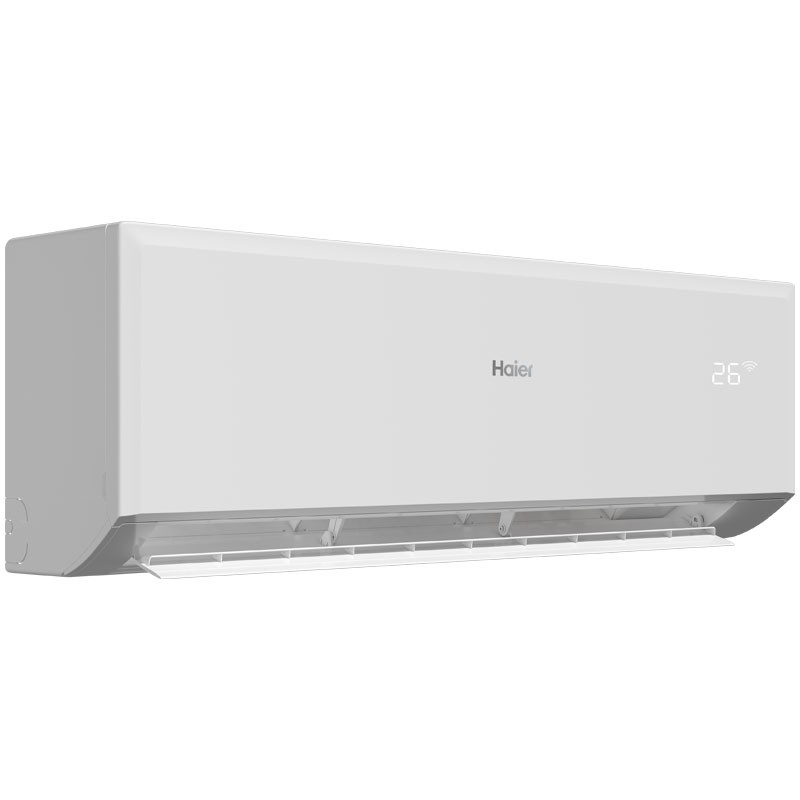

- 2 Revive Indoor units 2.5kW (AS25RHBHRA-M AABF1TE00)
- 1 Revive Indoor unit 3.5kW (AS35RHBHRA-M AABF3RE00)

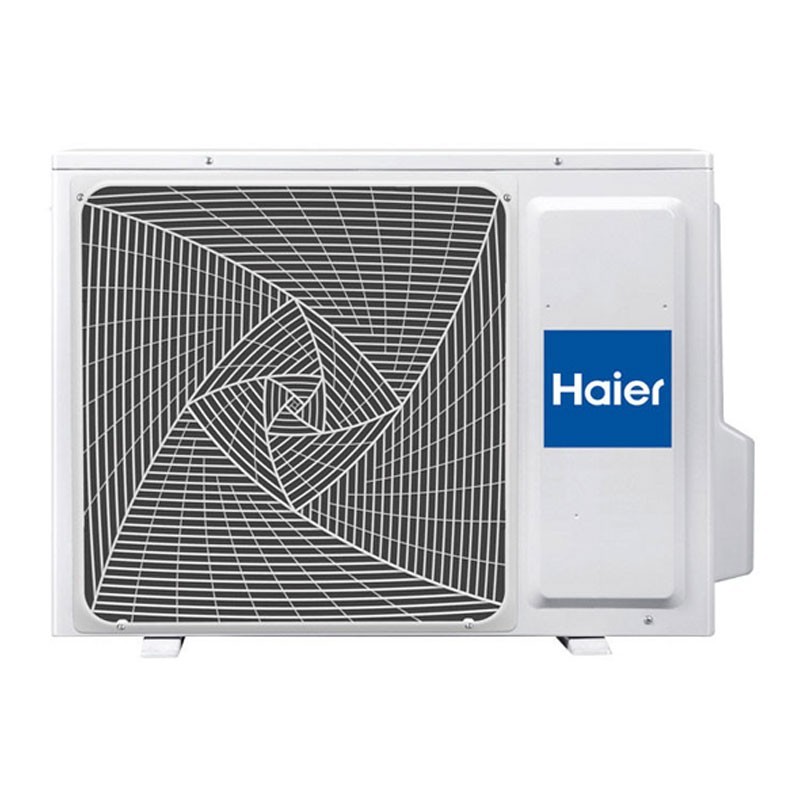

- 1 Outdoor unit 5.5kW (3U55MEFFRA AE1WF6E00)

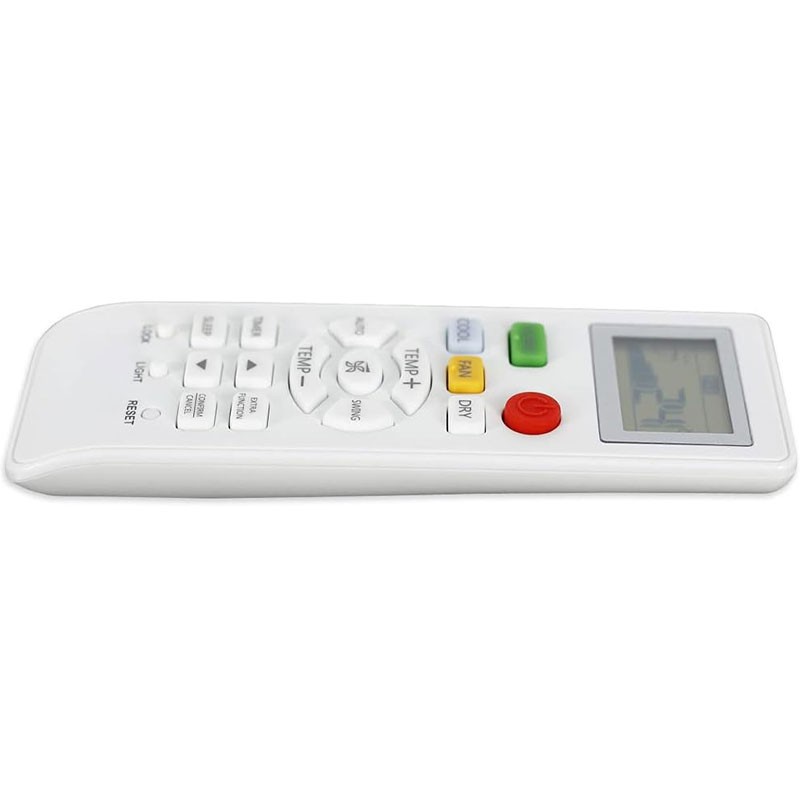

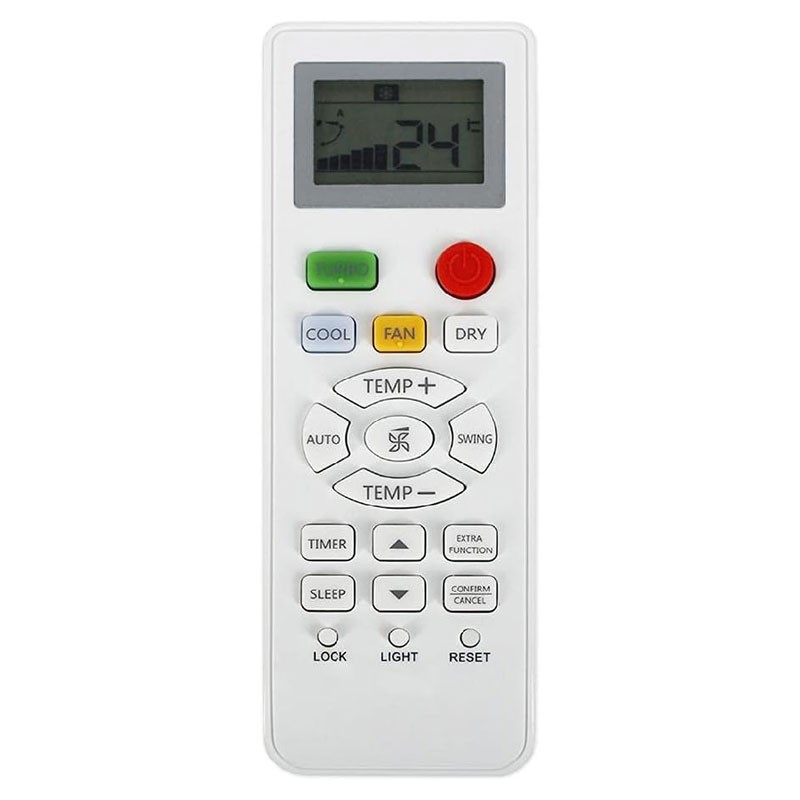

- 3 remote controls YR-HE
Integrated Wi-Fi control to remotely control the air conditioner with hOn.
This model replaces The Geos and Geos Plus series.
For two rooms of 27m² and one 35m² approx.
The air conditioner will be delivered pre-charged with gas R32
The air conditioner is also an heat pump, therefore also suitable for heating environments in winter.
€1,489.97
Items Available: 16
: 15
Air conditioners of the same series
Frequently bought together
Haier Revive trial split air conditioner comfort and intelligent management
The Haier Revive 9000+9000+12000 Trial Split Air Conditioner is ideal for those who need to air condition multiple rooms with different power ratings. The kit includes two 2.5 kW indoor units, one 3.5 kW indoor unit, and one 5.5 kW outdoor unit, offering precise control of the home or business climate. This model replaces the previous Geos and Geos Plus series, providing updated technologies for greater comfort and efficiency.
The air conditioner integrates Wi-Fi module, enabling remote control via the hOn app. You can manage each unit, activate operating modes, air purification functions, and set voice commands via Google Assistant or Alexa, making operation simple, intuitive, and smart.
Haier Revive advanced features
Self-Clean: This function keeps the evaporator clean through a freeze and defrost cycle that captures dust, bacteria and mold, improving air quality and preserving heat exchange efficiency.

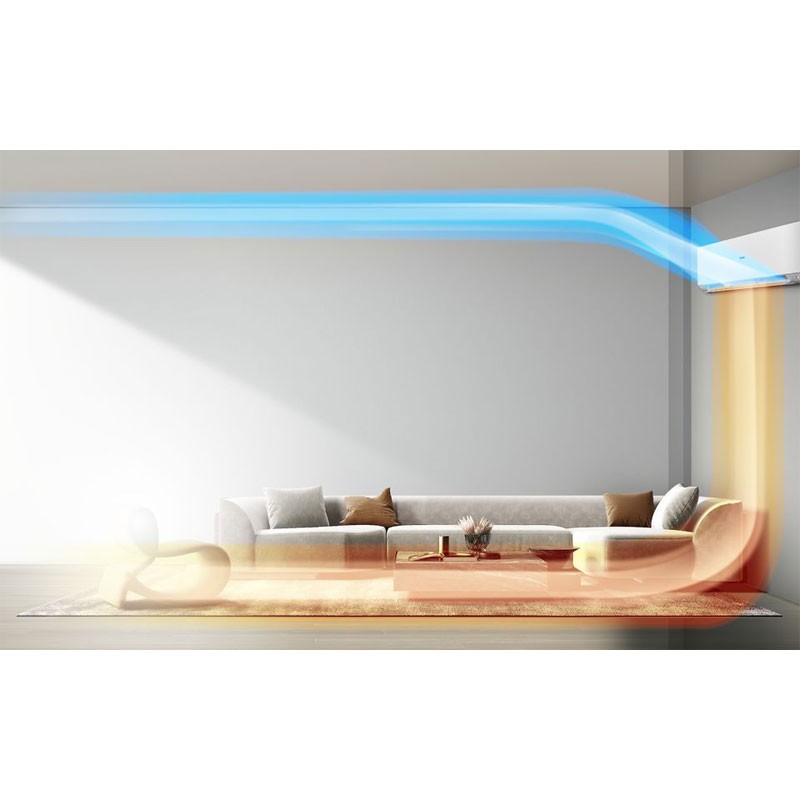

Air Flow Coanda: Distributes air parallel to the ceiling, avoiding direct currents. During cooling, cool air spreads evenly from top to bottom; during heating, warm air is directed toward the floor for optimal and comfortable distribution.
Sleep function: Automatically adjusts the temperature during the night. In heating mode, the temperature is gradually reduced and then stabilized; in cooling mode, the temperature is slightly increased before remaining constant, ensuring comfort and energy savings.
Haier smart control and management
Integration with the Smart Home via the hOn app makes it possible to:
- Control all indoor units even remotely.
- Activate air purification functions and operating modes.
- Use voice commands with Google Assistant and Alexa.
- Receive notifications on unit status and maintenance.
Haier Trial Revive Air Conditioner Highlights
- Energy Class A++/A+: High efficiency in both cooling and heating.
- Built-in Wi-Fi with hOn app: Remote control via smartphone or tablet, compatible with Google Assistant and Alexa.
- Self-Clean Technology: Always clean evaporator, eliminates impurities, bacteria and mold for healthier air.
- Air Flow Coanda: Optimal air distribution without direct drafts, ensuring uniform comfort in every room.
- Sleep Function: Automatic temperature adjustment during the night for energy savings and constant comfort.
Cooling
| Feature | Value |
|---|---|
| Power output (min/nom/max) | 2.10 / 5.00 / 6.60 kW |
| Rated input power | 1.20 kW |
| EER | 4,17 |
| SEER | 7,66 |
| Energy class | A++ |
| Annual energy consumption | 229 kWh/a |
Heating
| Feature | Value |
|---|---|
| Power output (min/nom/max) | 1.70 / 6.00 / 7.20 kW |
| Rated input power | 1.20 kW |
| COP | 4,23 |
| SCOP | 4,22 |
| Energy class | A+ |
| Annual energy consumption | 1494 kWh/a |
Outdoor Unit
| Feature | Value |
|---|---|
| Air volume treated | 3000 m³/h |

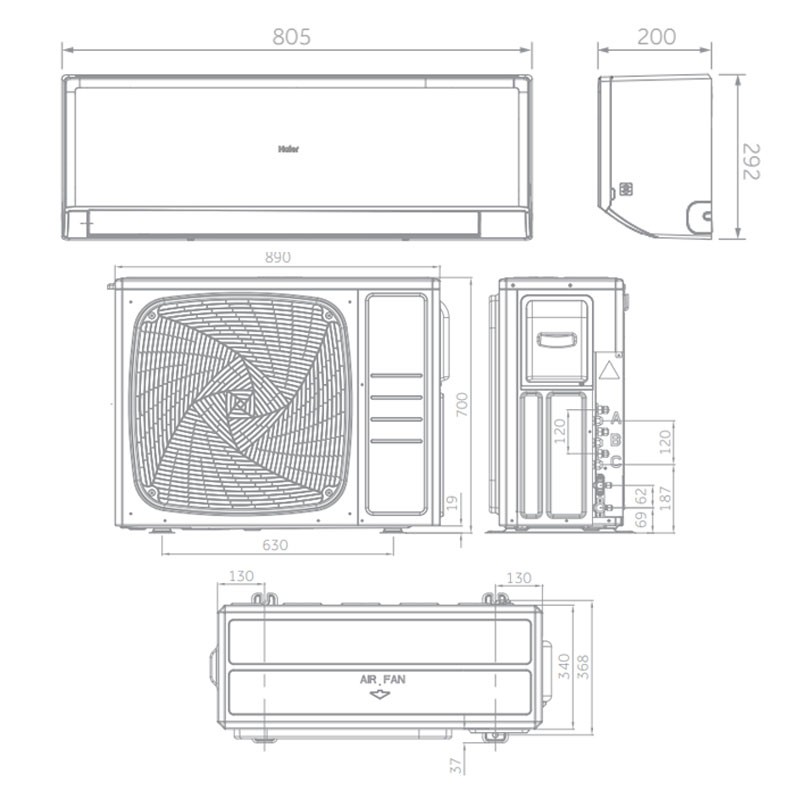

| Dimensions (W×D×H) | 890 × 340 × 700 mm |
| Weight | 50 kg |
| Compressor type | Inverter twin rotary |
| Compressor brand | Mitsubishi |
| Sound pressure | 51 dB(A) |
| Sound power | 64 dB(A) |
| Power supply | Single-phase 220-240 V / 50-60 Hz |
| Piping Liquid / Gas | 3 × 6,35 (1/4") - 3 × 9,52 (3/8") |
| Piping length max / min | 25 / 3 m |
| Max height difference between indoor/outdoor unit | 15 m |
| Max height difference between indoor/indoor unit | 7,5 m |
| Refrigerant type | R32 gas |
| Length of piping without charge | 30 m |
| Factory refrigerant charge | 1.4 kg |
| Tons CO₂ equivalent | 0.94 tCO₂eq |
| Additional charge beyond standard length | 20 g/m |
| Taps cover | Included |
| Cooling operation limits (in/out) | 21-35 °C (in) / -10-46 °C (out) |
| Heating operation limits (in/out) | 10-27 °C (in) / -15-24 °C (out) |
EER and COP data refer to performance tests according to EN. 14511.
Top 👌🏻 livraison rapide, fonctionne très tres bien
Tutto ottimo! Meglio di quanti mi aspettassi! Consiglio vivamente
Condizionatore vanno benissimo ho installato da poco per ora perfetto
parfait pas cher pour une excellente qualité nous recommandons le produit et le fournisseur
Data sheet
- Air conditioners: Wall-mounted
- Gas: R32
- Power: 9+9+12 BTU
- System: Trialsplit
- WIFI: Integrated
- Room Size: 35m²+27m²+27m²
- Energy class: A++
- Series: Revive
