Haier Revive Air Conditioner 3.5KW 12000Btu WIFI with Portable Diloc 9000 BTU
KIT RE12DI09

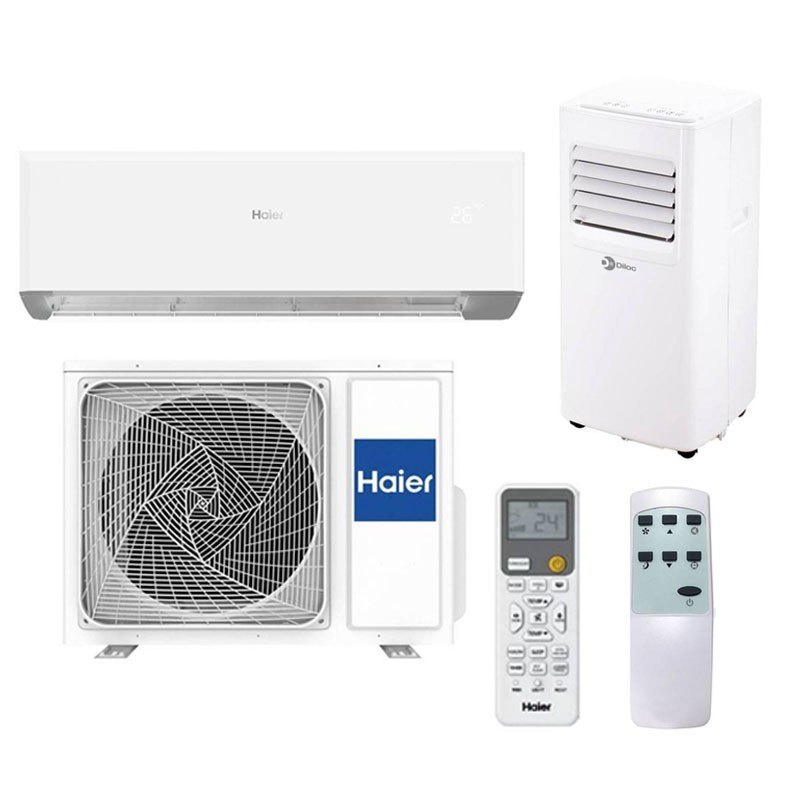

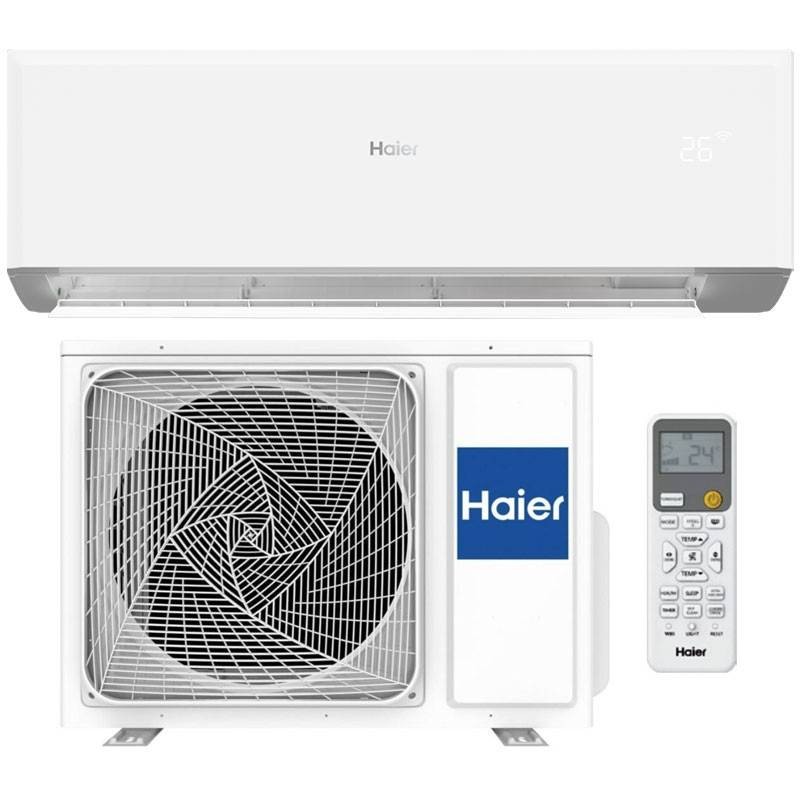

Haier Revive 3.5 kW Wifi Single-split Air Conditioner Kit + Portable Diloc 9000 BTU includes:
-
1 Naicon Diloc Compact 2.5 kW - 9,000 BTU hot/cold portable air conditioner
-
1 Haier Revive indoor unit (AS35RBAHRA-3 AABF39E01)
-
1 Haier Outdoor Unit (1U35YESFRA-3 AABF4ZE00)
-
1 Remote Control YR-HE2
For two rooms of approximately 27m² and 35m²
The air conditioner will be delivered pre-charged with gas R32
The air conditioner is also an heat pump, therefore also suitable for heating environments in winter.
€732.97
Items Available: 33
: 30
Frequently bought together
Haier Revive Single-Split Air Conditioner Set with Portable Naicon Diloc Compact
The Haier Revive 3.5 kW + Diloc 9000 BTU portable set combines the convenience of a portable air conditioner with the performance of a fixed split system, offering comfort in both cooling and heating modes.
The Haier Revive indoor unit ensures evenly distributed air with Coanda flow technology, while the outdoor unit efficiently manages the cooling cycle to ensure high performance with low consumption.
The Naicon Diloc 9000 BTU portable air conditioner allows for quick cooling or heating of smaller or temporary rooms, making it an extremely versatile set for home or office.
Features and specifications of the Haier Revive Air Conditioner
Self-Clean technology for cleaner air
- Self-Clean technology ensures that clean air comes out of the evaporator as it performs the freezing of its surface and subsequent defrosting, two steps that allow accumulated dirt to be removed
- Self-Clean technology freezes the moisture in the air on the exchanger. The ice formed retains all the impurities, dust and bacteria that had settled on the surfaces. The next stage of defrosting causes the ice, as it melts, to drag the impurities with it to the drain, leaving the exchanger clean and ensuring excellent outlet air quality. If the evaporator is not cleaned regularly, accumulated dirt reduces heat exchange by 15 to 30 percent and also promotes the growth of bacteria and mold.
Coanda Air Flow
- The Coanda effect ensures that the flow of air leaving the air conditioner travels parallel to the ceiling, allowing comfortable air distribution throughout the room
- Faster and stronger cooling: When the unit is working in cooling mode, the cool air travels parallel to the ceiling. This prevents a direct draft of cold air onto people. The air is also evenly directed from the ceiling to the floor of the room, ensuring greater comfort
- Superior heating experience When the unit is operating in heating mode, warm air is directed directly to the floor and then circulates throughout the space or to ensure consistent temperature distribution in every corner of the room.
New Wi-Fi
- With Haier's "hOn" app, you can control all the Haier appliances in your Smart Home from your smartphone or tablet from a single app. In addition, through hOn, you can manage all basic functions, purification functions and more. The app allows the use of voice commands because it is compatible with Google Assistant and Alexa
- The Wi-Fi module is already present in the air conditioner. In order to control the units via smartphone or tablet, it is necessary to download the hOn App available on the App Store, Google Play and Huawei AppGallery by searching for it by name or by scanning, from your smartphone, the QR Code shown here.
Sleep Function
- Night function of the air conditioner to ensure maximum comfort without wasting energy.
- In heating mode, once the desired temperature is set, the temperature will be set 2°C lower during the first hour and another 2°C lower during the second hour. After 2 hours it will increase by 1°C and the temperature will remain constant for 6 hours before the unit is turned off.
- In cooling mode, once the desired temperature is set, the temperature will be set 1°C higher during the first hour and then again 1°C higher during the second hour. After that, the temperature will remain constant for 6 hours before the unit is turned off.
Cooling
| Feature | Detail |
|---|---|
| Rated nominal capacity (min~max): kW | 3,2 (0,8~3,8) |
| Rated input power: nom (min~max) kW | 0,99 (0,3~1,3) |
| SEER | 6,1 |
| Energy class | A++ |
| EER | 3.23 |
| Indicative annual energy consumption kW/a | 184 |
Heating
| Feature | Detail |
|---|---|
| Rated Capacity Min/Max: KW | 3,5 (0,7-4,00) |
| Rated power consumption (min~max) | 0.943 (0,4~1,6) |
| SCOP | 5,10 |
| Seasonal energy efficiency class | A+ |
| COP | 3.71 |
| Indicative annual energy consumption: kWh/a | 1050 |

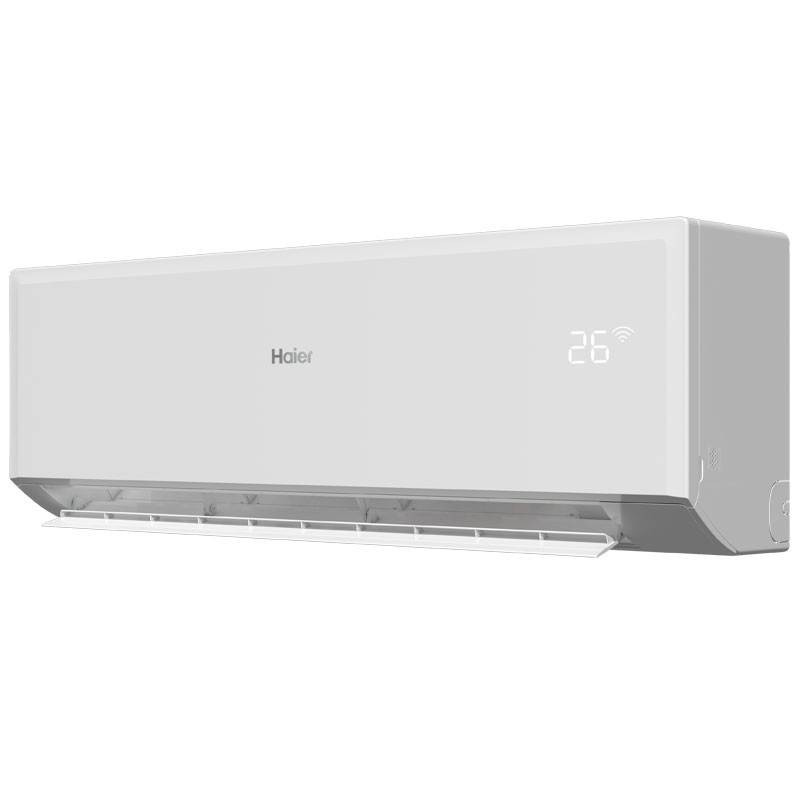

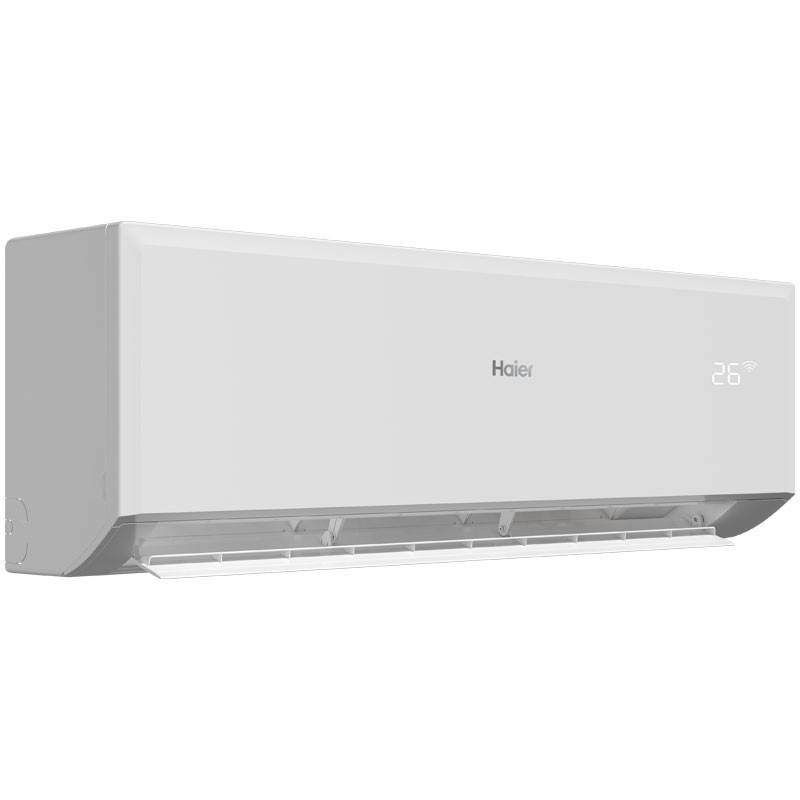

Indoor Unit Features
| Feature | Detail |
|---|---|
| Power Supply Ph/V/Hz | 1/220~240/50 |
| Dimensions: (WxDxH) | 805x200x292mm |
| Weight | 8.8Kg |
| Processed air cubic meters/h | 650 |
| Dehumidification capacity l/hr | 1.4 |
| Sound pressure level (Cooling/heating) dBa | 38/34/29/20 - 38/34/29/20 |
| Sound Power Level Cooling/Heating dBA | 59/59 |

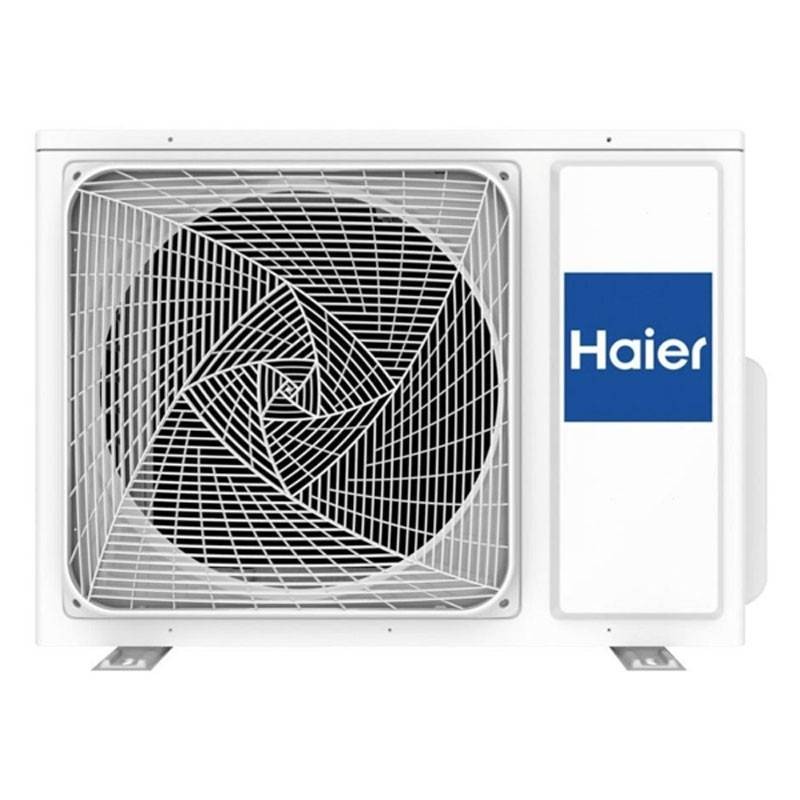

Outdoor Unit Features
| Feature | Detail |
|---|---|
| Dimensions: (WxDxH) | 700x245x544mm |
| Weight | 22.0Kg |
| Current consumption | 7.3A max |
| Level Sound pressure dBa | 50 |
| Sound Power Level dBA | 64 |
| Power supply | Single-phase 220-240 / 50Hz |
| Compressor type | Inverter single rotary |
| Compressor brand | Highly |
| Liquid/Gas piping | 6,35 (1/4") - 9,52 (3/8") |
| Max/min piping length | 20 meters |
| Piping length without refrigerant addition | 5 meters |
| Factory refrigerant charge | 0.51 kg |
| Additional charge beyond standard length | 20 g/m |
| Tons of CO2 equivalent | 0.34 |
| Operating Temperatures in Cooling | 21 - 35 Degrees (in) / -20 - 43 Degrees (out) |
| Operating Temperatures in Heating | 10 - 27 Degrees (in) / -20 - 24 Degrees (out) |
| Max height difference between indoor/outdoor unit | 10 meters |
| Refrigerant Type | R32 Gas |
| Unit equipped with tap covers | Yes |

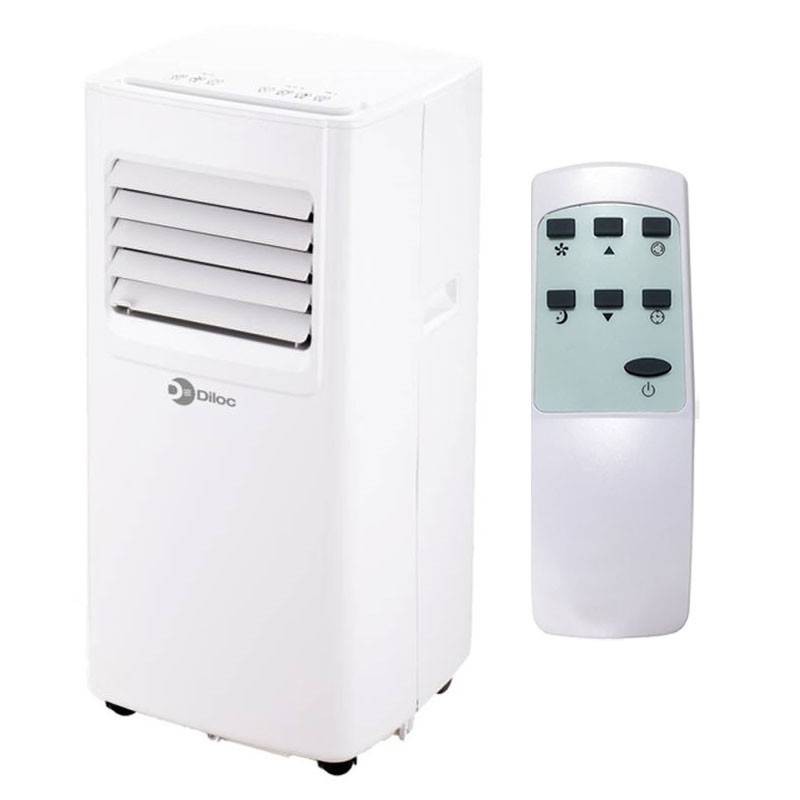

Naicon Diloc Compact 2.5 kW (9 000 BTU) Portable Air Conditioner - Hot/Cold
The Naicon Diloc Compact 2.5 kW portable air conditioner provides instant comfort in any room without the need to install an outdoor unit. Compact and easily transportable, it is ideal for offices, stores, second homes or temporary rooms. In addition to cooling and heating, the device handles dehumidification and ventilation, improving air quality.
The continuous condensate drain, combined with the top air exhaust kit, simplifies installation and daily use. The included LED panel and remote control allow you to program timers, activate Sleep mode, and easily adjust all functions.
The system protects the compressor with automatic restart after 3 minutes and provides safety with thermostat and defrost function. Perfect for operation even at low temperatures, the Naicon Diloc Compact maintains comfort between 7 °C and 35 °C, ensuring reliable performance in all seasons.
- Cooling/heating capacity: 2.5 kW (9 000 BTU)
- Functions: dehumidifies, ventilates, cools and heats
- Installation: no outdoor unit, easy to move
- Condensate drain: continuous with top air exhaust kit
- Control: LED display and remote control, programmable timer
- Mode: sleep for optimal night comfort
- Safety: automatic compressor restart after 3 min, thermostat, defrost function Operating environments: 7 °C to 35 °C
| Feature | Detail |
|---|---|
| Power supply | 220-240V / 1P / 50Hz |
| Capacity (Btu/kW) | 9000 / 2,5 |
| Power consumption | 785 W |
| Current consumption | 3,5 A |
| EER / Energy Efficiency | 2,61 / A |
Heating
| Feature | Detail |
|---|---|
| Rated capacity (Btu/kW) | 7000 |
| Power consumption | 750 W |
| Current consumption | 3,2 A |
| COOP / Energy Efficiency | 2,3 / A |
Other Features
| Feature | Detail |
|---|---|
| Air flow rate | 300 m³/h |
| Dehumidification capacity | 17 L/g |
| Sound power level | ≤65 dB(A) |
| Dimensions (W x H x D) | 305 x 328 x 678 mm |
| Net/gross weight | 21 / 23 kg |
| Refrigerant / Precharged quantity | R290 / 140 g |
| Accessories included | Air exhaust hose (145mm), Window adapter, Remote control |
Data sheet
- Air conditioners: Portable
- Gas: R32
- Power: 9000 BTU (2,5 Kw)
- System: Monosplit
- WIFI: Integrated
- Room Size: 25m²
- Energy class: A++
- Series: Compact
Wall-mounted
R290
12000 BTU (3,5 Kw)
35m²
Revive
