Self-Clean:

• Self-Clean technology ensures that clean air leaves the evaporator as it performs the freezing of its surface and subsequent defrosting, two steps that allow accumulated dirt to be removed
• Self-Clean technology freezes the moisture in the air on the exchanger. The ice formed retains all the impurities, dust and bacteria that had settled on the surfaces. The next stage of defrosting causes the ice, as it melts, to drag the impurities with it to the drain, leaving the exchanger clean and ensuring excellent outlet air quality. If the evaporator is not cleaned regularly, accumulated dirt reduces heat exchange by 15 to 30 percent and also promotes the growth of bacteria and mold.

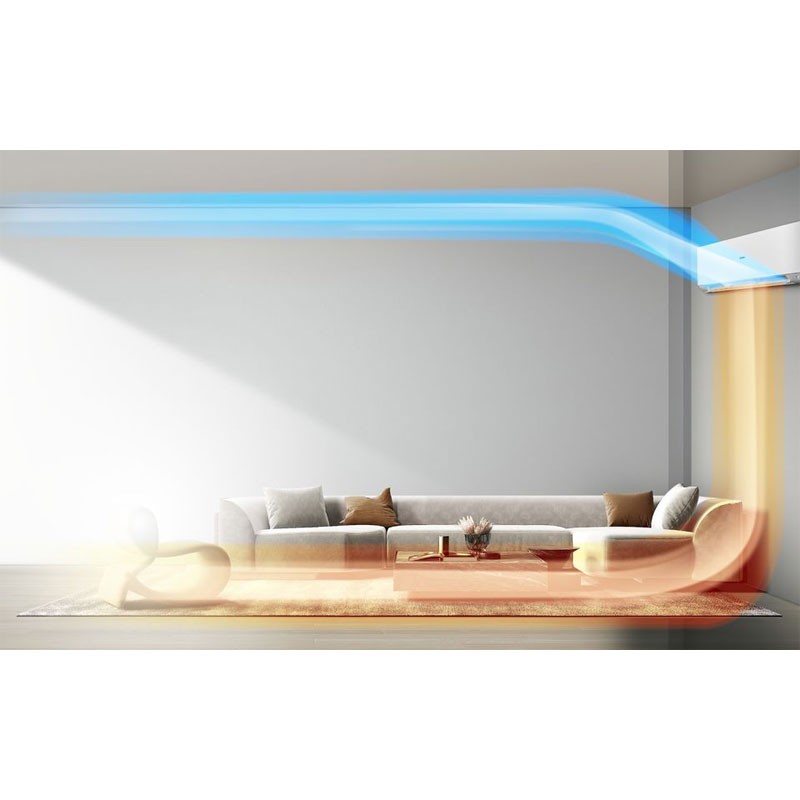

Coanda Air Flow:


• The Coanda effect ensures that the flow of air leaving the air conditioner travels parallel to the ceiling, allowing comfortable air distribution throughout the room
• Faster and stronger cooling: When the unit is working in cooling mode, the cool air travels parallel to the ceiling. This prevents a direct draft of cold air onto people. The air is also evenly directed from the ceiling to the floor of the room, providing greater comfort
• Superior heating experience When the unit is operating in heating mode, warm air is directed directly to the floor and then circulates throughout the space or to ensure consistent temperature distribution in every corner of the room.



New Wi-Fi:

• With Haier's "hOn" app, you can control all the Haier appliances in your Smart Home from your smartphone or tablet from a single app. In addition, through hOn, you can manage all basic functions, purification functions and more. The app allows the use of voice commands because it is compatible with Google Assistant and Alexa

• The Wi-Fi module is already present in the air conditioner. In order to control the units via smartphone or tablet, it is necessary to download the hOn App available on the App Store, Google Play and Huawei AppGallery by searching for it by name or by scanning, from your smartphone, the QR Code shown here.



Sleep Function:

• Night function of the air conditioner to ensure maximum comfort without wasting energy.
• In heating mode, once the desired temperature is set, the temperature will be set 2°C lower during the first hour and another 2°C lower during the second hour. After 2 hours it will increase by 1°C and the temperature will remain constant for 6 hours before the unit is turned off.
• In cooling mode, once the desired temperature is set, the temperature will be set 1°C higher during the first hour and then again 1°C higher during the second hour. After that, the temperature will remain constant for 6 hours before the unit is turned off.



Specifications:



Cooling:

• Power output 4.0kW (1.0-4.5) 2kW/2kW
• System output power min/nom/max 1.00/4.00/4.50
• Power consumption min/nom/max 0.30/1.02/1.63 kW
• Current consumption min/nom/max/ 1.4/4.5/7.4 A
• EER 3.91
• SEER 6.20
• Energy class A++
• Annual energy consumption 226 kWh/a

Heating:

• Power output 4.4kW (1.5-4.8) 2.20kW/2.20kW
• System power output min/nom/max 1.50/4.40/4.80
• Power consumption min/nom/max 0.38/1.16/1.79kW
• Current consumption min/nom/max/ 1.7/5.2/10.0 A
• COP 3.80
• SCOP 4.00
• Energy class A+
• Annual energy consumption 1155 kWh/a

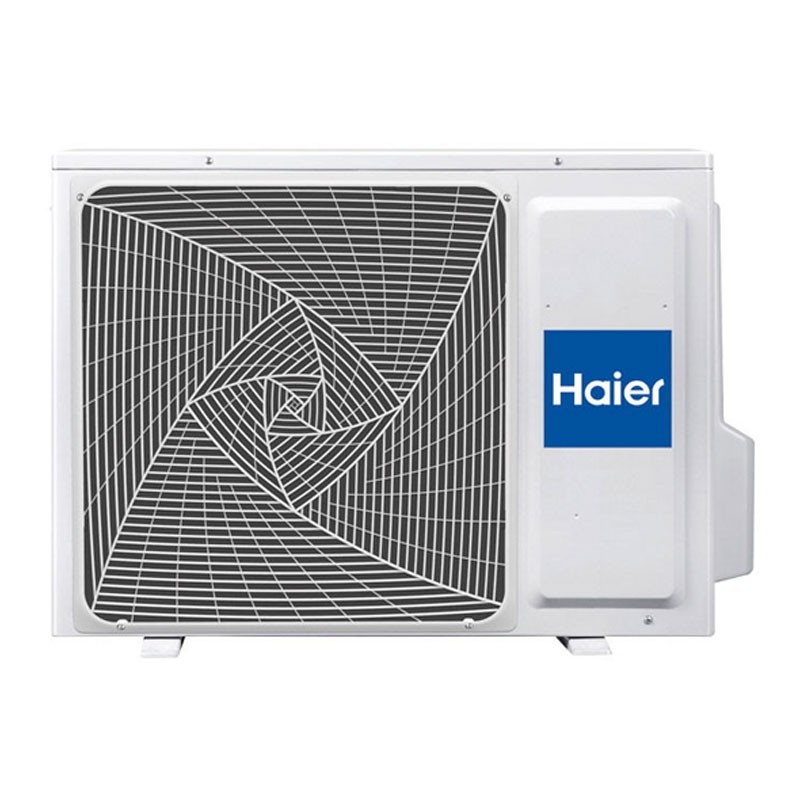

Outdoor Unit Features.:

• Treated air volume 2200 m³/h

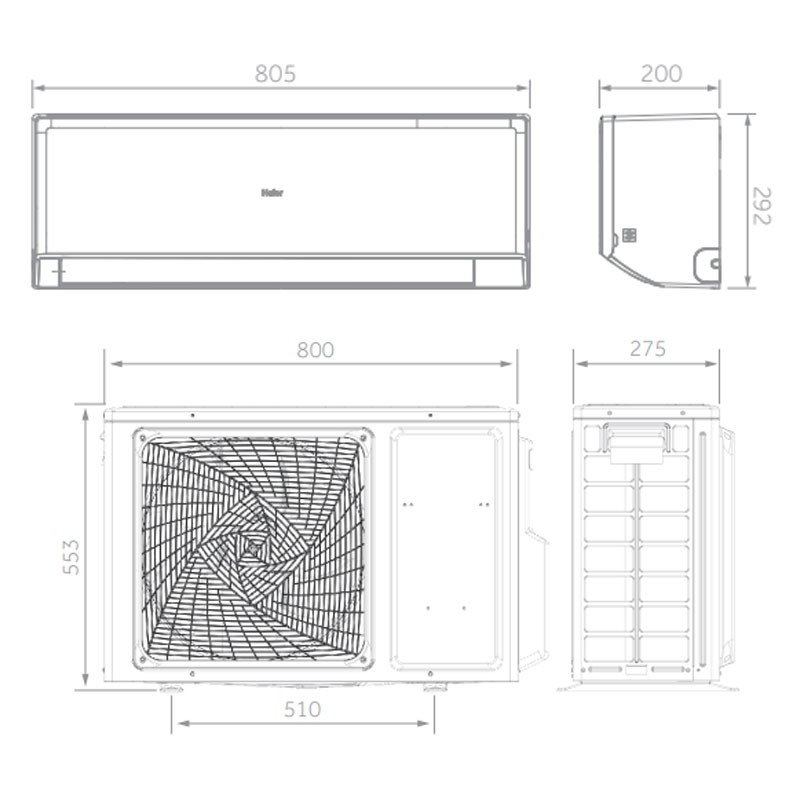

• Dimensions: (WxDxH) 800x275x553mm
• Weight 34 Kg
• Compressor type Inverter rotary
• Compressor brand Highly
• Sound pressure level dBa 56
• Sound Power Level dBA 62
• Power supply Single-phase 220-240 / 50/60Hz
• Liquid/Gas piping 2 x 6.35 (1/4") - 2 x 9.52 (3/8)
• Max/min piping length 20/3 meters
• Max height difference between indoor/outdoor unit 15 meters
• Max height difference between indoor/indoor unit 7.5 meters
• Refrigerant Type: R32 Gas
• Max piping length (without refrigerant charge) 30 meters
• Factory refrigerant charge 1.0 Kg
• Tons of CO2 equivalent 0.67 tCO2EQ
• Additional charge beyond standard length 20 g/m
• Outdoor unit equipped with tap covers
• Operating limits Cooling min-max: 21 - 35 Degrees (in) -10 / -43 Degrees (out)
• Operating limits Heating min-max: 10 - 27 Degrees (in) -15 / -24 Degrees (out)



EER and COP data refer to performance tests according to EN. 14511.
