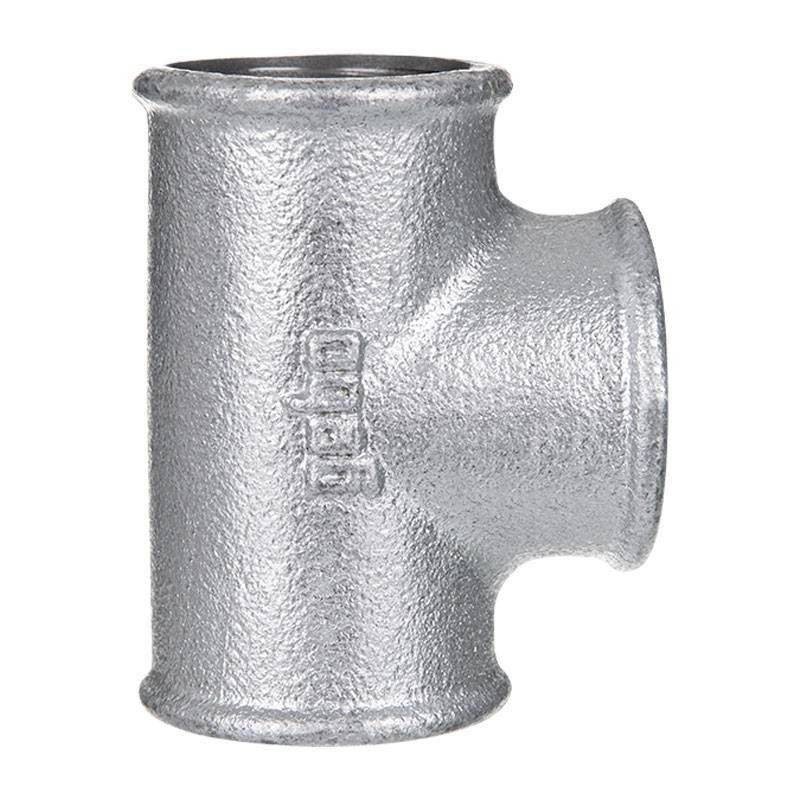

T-branch 90 degrees in Cast Iron Gebo for pipes 1 1/2 x 1 1/4 inches 130-33G

Gebo
Gebo
GBO 130-33G 4019576082118

Malleable cast iron T-fitting Gebo Series 130, hot-dip galvanized, with female threading for connecting pipes of different diameters. Ideal for high-pressure systems in civil, industrial, and domestic settings, with the following characteristics:

  • Connections: Female 1 inch 1/2 x 1 inch 1/4 x 1 inch 1/2

  • Material: Malleable cast iron

  • Angle: 90 degrees

  • Maximum operating pressure: Up to 25 bar

  • Applications: Water, gas, compressed air, hydrocarbons

Do you have questions about this product or did you not find what you were looking for? Ask us!
T-branch 90 degrees in Cast Iron Gebo for pipes 1 1/2 x 1 1/4 inches 130-33G
€6.08
€6.08

€6.08
Tax included
Calculate shipping cost
Items Available: 30
Further availability of the manufacturer
€6.08

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Professional Gebo T-branch for high-performance systems

The 90-degree Gebo Series 130 T-branch is a threaded fitting in malleable cast iron, designed to securely connect pipes with different diameters in plumbing, heating, and industrial systems. Its excellent mechanical properties allow its use in high-pressure and high-temperature contexts, even in the presence of aggressive fluids or outdoor environments.

Mechanical strength and long durability

The malleable cast iron used ensures:

  • Tensile strength: 350 N/mm²

  • Yield strength: 200 N/mm²

  • Maximum hardness: 150 HB

These characteristics give the branch significant structural robustness, making it suitable for installations subject to vibrations or mechanical loads.

Hot-dip galvanizing: superior corrosion protection

The hot-dip zinc coating, with a minimum thickness of 70 microns, offers:

  • Long-lasting protection against corrosion

  • Resistance to weather, humidity, and chemicals

  • Greater reliability in industrial environments or outdoor installations

Regulatory compliance and safety

The branch complies with UNI EN 10242 standards, guaranteeing:

  • Reliability for the transport of water, gas, compressed air, oils, and hydrocarbons

  • High-quality standards for pressure and sealing

  • Compatibility with major BSP threading systems (ISO 7-1)

Application sectors

  • Civil and industrial plumbing systems

  • Distribution of drinking and technical water

  • Combustible gas networks and heating systems

  • Systems with compressed air and mineral oils

  • High-pressure industrial systems

There are no reviews

Data sheet

Type:
Waste Water Connections
Connection:
F
Model:
90 Degrees
T-Fittings
Threaded
Connections:
1-1/2 inches
1-1/4 inches
Material:
Cast iron
