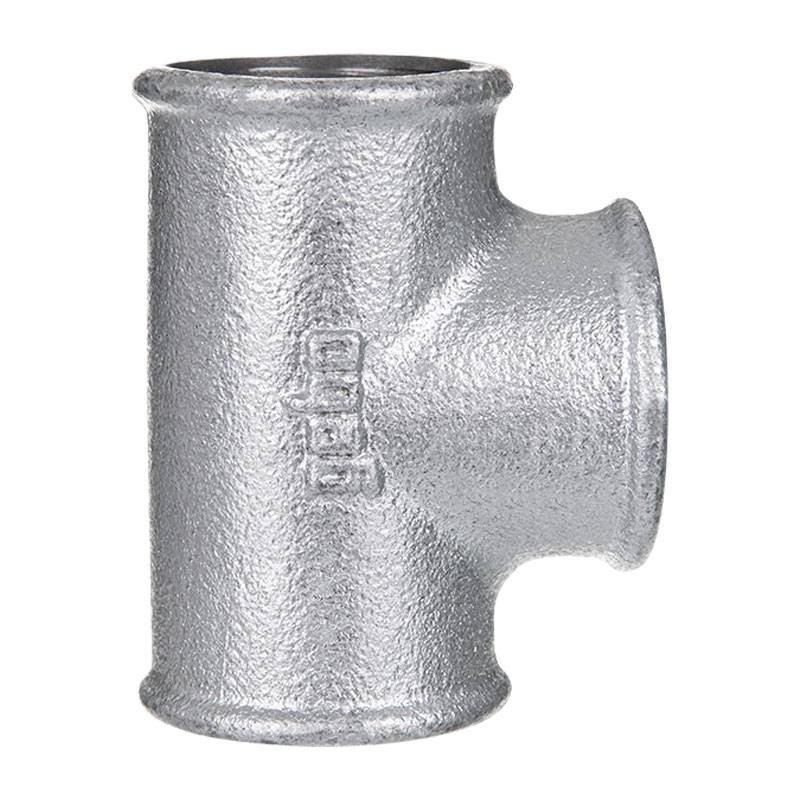

Gebo Cast Iron 90 Degree T-Fitting for 1 1/2 x 1/2 Pipes 130-30G
GBO 130-30G
4019576082088
90-degree threaded Gebo Series 131 T-fitting for pipes with the following features:
- Fittings: 1 inch 1/2 x 1/2 inch x 1 inch 1/2
- Material: cast iron
Suitable for conveying compressed air, water, combustible gases, hydrocarbons and others, under the indicated pressure and temperature limits.
€3.83
Items Available: 20
: 18
GEBO threaded fittings comply with UNI EN 10242 drawing symbol A, which specifies the characteristics of threaded malleable cast iron fittings. As the mentioned standard prescribes, GEBO malleable cast iron threaded fittings are suitable for the transport of compressed air, water, combustible gases, hydrocarbons and others, under the specified pressure and temperature limits.
Applications:
- Minimum service temperature: 20 °C, 25 bar
- Working pressure for temperatures between 20 °C and 120 °C: 25 bar
- Working pressure for temperatures between 120 °C and 300 °C: 20 to 25 bar
This implies that the following results are obtained in mechanical tests on 12 mm diameter specimens:
- Tensile strength (minimum value) 350N/ mm2 (35 Kg/mm2)
- Yield strength 0.2 % (minimum value) 200 N/mm2 (20 Kg/mm2)
- Elongation (minimum value) 10 %
- Brinell hardness (maximum value) 150 HB
Galvanizing: GEBO threaded fittings are galvanized by immersion in molten zinc bath, according to EN 10242. The zinc coating is more than 500 g/m2, so minimum average thickness of 70 microns. The thickness of the zinc layer and its adherence with the base surface guarantees our malleable cast iron fittings perfect corrosion protection over time.
Cleaning and Oiling: To remove residual iron shavings, oil, cutting and dirt collected during the mechanization process, GEBO fittings are cleaned and finally provided with corrosion protection.
There are no reviews
Data sheet
- Type: Waste Water Connections
- Model: 90 Degrees
- Connections: 1-1/2 inches
- Material: Cast iron
T-Fittings
Threaded
1/2 inches
