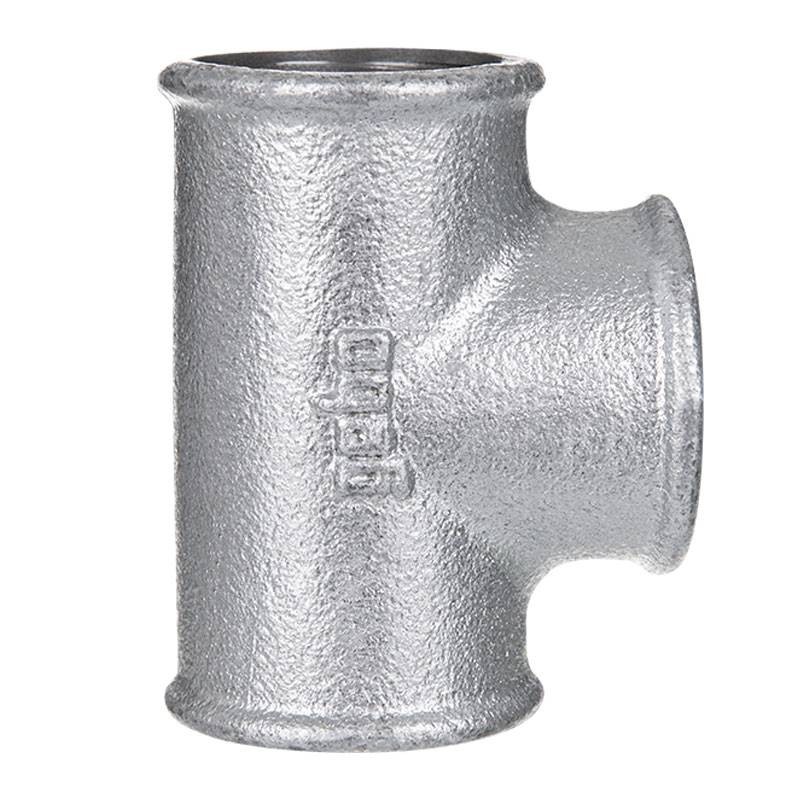

Gebo cast iron threaded 90-degree reduced T-piece for pipes 2 1/2x2x 2 1/2 130-48G
GBO 130-48G
Gebo 90-degree threaded reduced T-piece, ideal for conveying systems for water, gas, compressed air, hydrocarbons and other compatible fluids. It provides high mechanical strength and long service life through hot-dip galvanizing treatment and rigorous leak tests, with the following features:
-
Fitting size: 2 1/2 x 2 x 2 1/2 inches
-
Material: malleable cast iron
-
Maximum pressure: 20-25 bar
-
Tensile strength: 350 N/mm²
€15.65
Items Available: 20
: 18
Gebo Reduced T-piece robustness and reliability for professional installations
The Series 130 threaded reduced T-piece is designed to connect pipes of different cross sections while maintaining a high mechanical seal and perfect corrosion resistance. Malleable cast iron construction combined with hot-dip galvanizing provides superior durability even in harsh environmental conditions.
Applications and compatibility
This brace is perfectly suitable for civil, industrial and plumbing systems, and is compatible with threaded iron or steel pipes.
Areas of use:
-
Cold or hot water distribution
-
Combustible gas lines
-
Compressed air systems
-
Transportation of hydrocarbons and industrial oils
Technical Specifications Gebo T-piece
| Fitting dimensions | 2 1/2 x 2 x 2 1/2 inches |
| Material | Malleable cast iron EN-GJMB-350-10 |
| Threading | EN 10242 |
| Galvanizing | ≥ 500 g/m² (≥ 70 µm) |
| Minimum service temperature | -20 °C |
| Maximum service temperature | 300 °C |
| Max pressure (up to 120 °C) | 25 bar |
| Max pressure (over 120 °C) | 20-25 bar |
| Tensile strength | ≥ 350 N/mm² |
| Brinell hardness | ≤ 150 HB |
There are no reviews
Data sheet
- Type: Waste Water Connections
- Model: 90 Degrees
- Connections: 2 inches
- Material: Cast iron
T-Fittings
Threaded
2-1/2 inches
